V12.5 ENFORCER & PCXDUAL PATH ADDITIONAL MENUS |
||||
|
|
Click here for a step by step guide for signalling set-up arc registrationJump to Section
|
|||
|

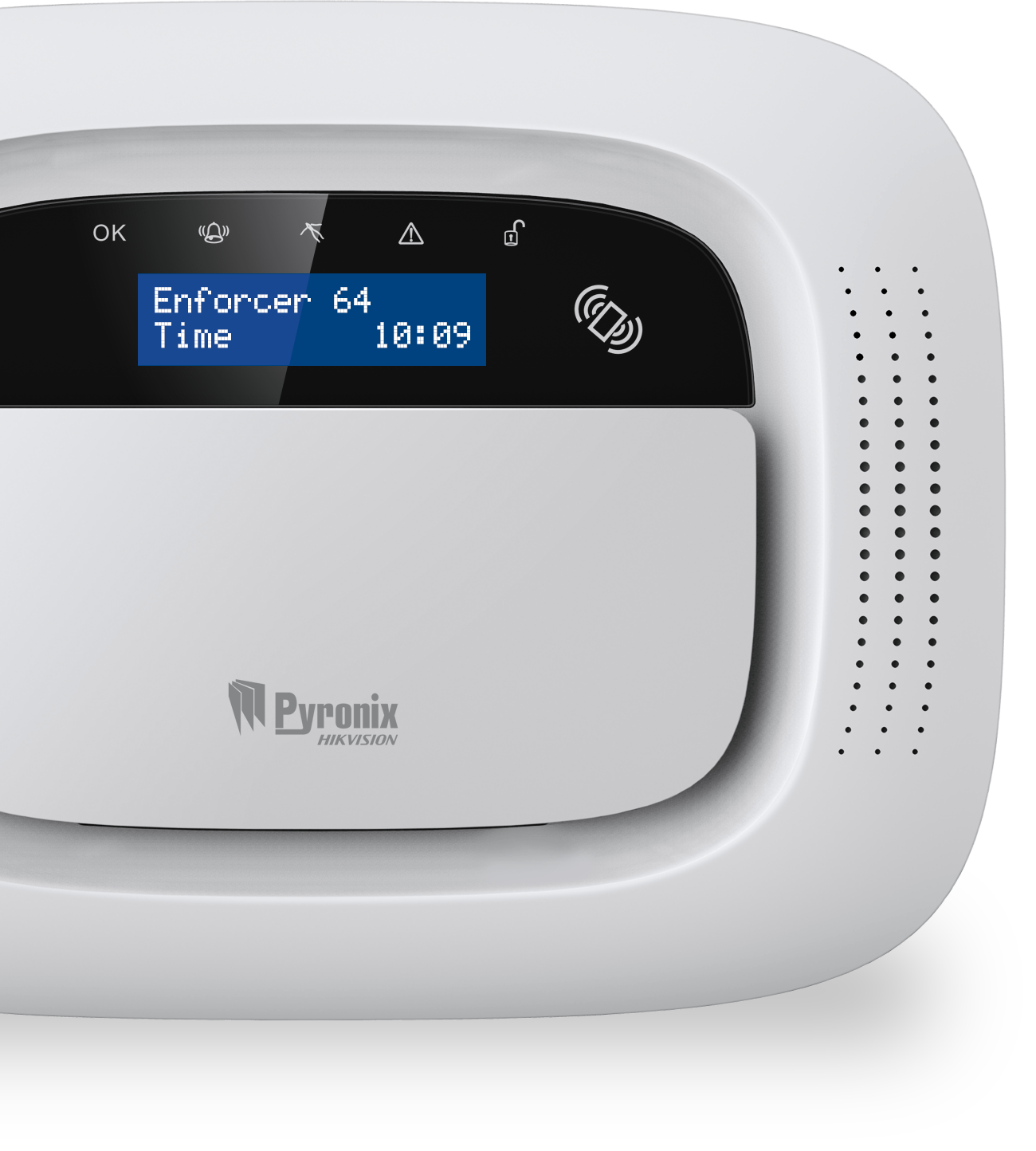

With the introduction of the dual path communicator, also known as DIGI-DUAL, the Enforcer 64 and PCX 78 software has been upgraded from version 12 to version 12.5. The dual path communicator utilises an Ethernet connection and a GPRS/3G connection depending on the type of connection the SIM card has when the module tries to signal.
This software contains additional menus allowing programming both paths as well as full diagnostics.
Please note:The control panel now comes with the Up/download method defaulted to 'Cloud'. If the control panel is going to be used without a communications module connected to the cloud, this option should be changed to 'None' to prevent fault indications occurring on the system.
|
||||
Additional Communication Menus & Options |
||||
|
Enter the Engineer Menu and press |
|
|||
|
The sub menu ‘App Set-Up?’ will now be displayed. Press |
|
|||
|
In ‘App Set-Up?’ there are new options for the App communication path, the first of these is Ethernet. This will use the Ethernet port on the module to signal from the panel. |
|
|||
|
The next option is Cellular. This will use the SIM card on the module to send signals via GPRS or 3G depending what connection the module has. |
|
|||
|
Selecting ‘Ether/Cellu’ will use the Ethernet as its primary path and use the cellular as a backup. |
|
|||
|
‘Cellu/Ether’ is the inverse of the previous option using cellular as a primary path and utilising the Ethernet as a backup. |
|
|||
|
Press |
|
|||
|
The ‘Program GPRS?’ and ‘Program LAN?’ options were both in the previous version of the software however only one would have been accessible depending on which module was inserted. |
|
|||
|
Use ‘Program GPRS?’ to set up the cellular section of the module and ‘Program LAN?’ to program the Ethernet connection. |
|
|||
|
Press |
|
|||
|
Using the |
|
|||
|
This section now has a new option. The modem type used is now ‘Ether/Cell’ to represent the DIGI-DUAL. |
|
|||
Additional Diagnostic Menus & Options |
||||
|
Enter the Engineer Menu and press |
|
|||
|
The sub menu ‘Ethernet Communications?’ will now be displayed.
Press |
|
|||
|
This menu, along with Ethernet Communications was present in previous version 12 software. Now, only with the dual path module installed, are they both accessible.
Please note: the signal strength ranges from 0-5 where 5 is full signal and 0 is no signal. |
|
|||
|
An extra feature has been added to the ‘Cellular Communications?’ menu. The control panel will now display the network that the SIM card is currently connected to. |
|
|||
Additional Up/Downloading Menus & Options |
||||
|
Enter the Engineer Menu and press |
|
|||
|
Scroll through this menu using |
|
|||
until the LCD displays the main menu item ‘COMMUNICATIONS?’.
Press
and
keys, select the ARC details that are to be programmed and press
