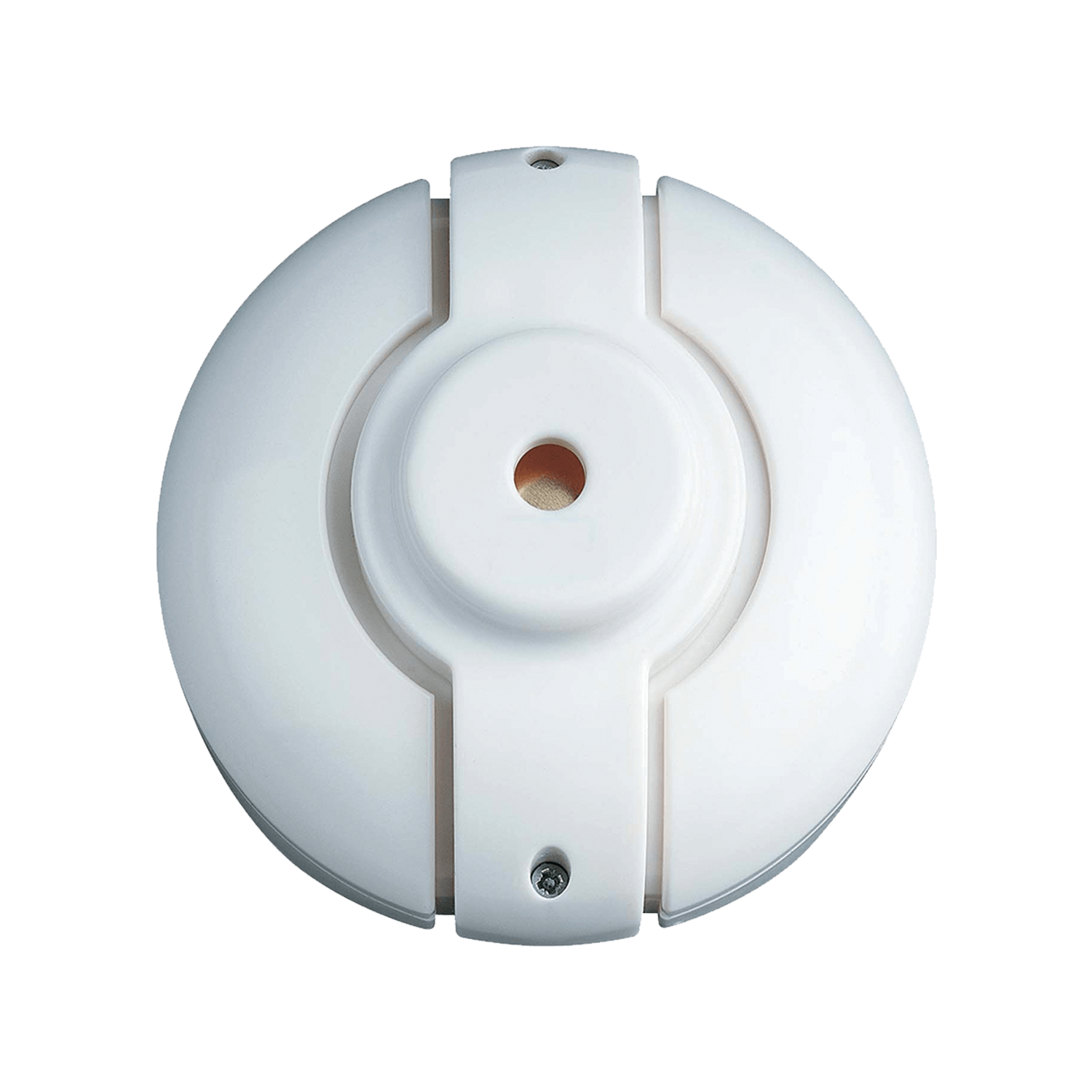

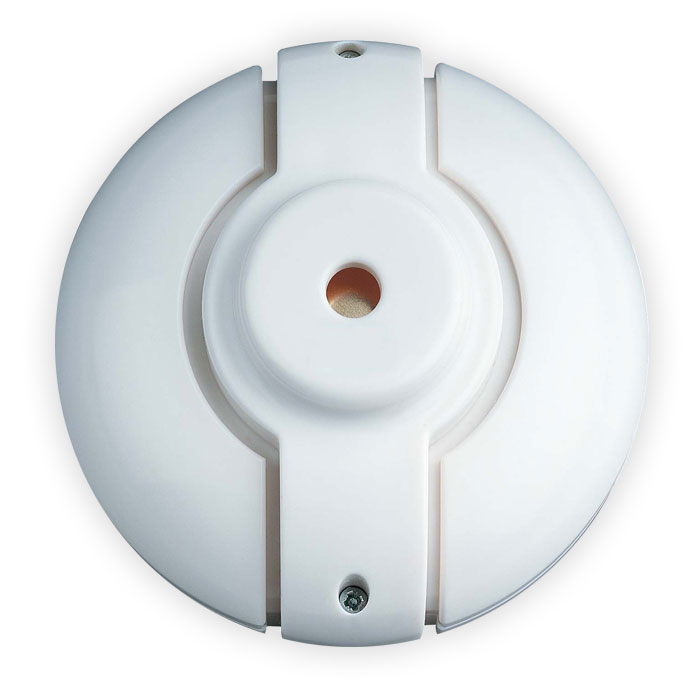

(English) Twin Alert Internal Sounder

Description

(English) The Twin Alert combines both a speaker and siren in a single unit. This eliminates the need for two separate products situated in different locations, optimising installation efficiency.

Key Features
  • (English) Tamper protection
  • (English) 100dB loudness
  • (English) Compatible with any panel featuring a speaker output

Product Features

Combined speaker and sounder in a single unit.

(English) The speaker element mimics keypad tones and the sounds associated with the setting and unsetting of a system. The internal sounder will only activate on alarm and overrides the pre-set speaker volume level, providing a siren output of 100 decibels at 1 metre, acting as a deterrent to intruders and alerting inhabitants.

Tamper protection

(English) The integral tamper protection means that the alarm will be sounded if anyone tries to disconnect the Twin Alert.

Engineer hold off

(English) With the Engineer hold off feature you can disable the tamper through the engineer menu on the control panel enabling the system to be maintained without any unwanted alarms.

(English) Sounders technical characteristics

(English) Loudness

(English) 100dB @ 1m

(English) Engineer hold off

(English) No

(English) Number of Piezos

1

(English) Tamper protection

(English) Yes

(English) For internal use

(English) Yes

Características ambientais e operacionais

(English) Storage temperature

(English) -20C to +60C

(English) Certified operating temperature

(English) -10C to +40C

(English) Nominal operating temperature

(English) -10C to +40C

(English) Physical dimensions (H x W x D)

90 x 90 x 46mm

(English) Weight

100g

Especificações elétricas e da bateria

(English) Operating voltage

9-14.5V (13.5V nominal)

(English) Alarm current

160mA

(English) Quiescent current consumption

30mA 12V

Certificações e garantia

(English) Security Grade

(English) Grade 2

(English) Environmental class

II

(English) EN Certificate

EN50131-4:2009, EN50131-1:2006+A1:2009, PD6662:2010

(English) Certification type

(English) Self certified

(English) Electrical conformity

CE

(English) Warranty

(English) 2 years
