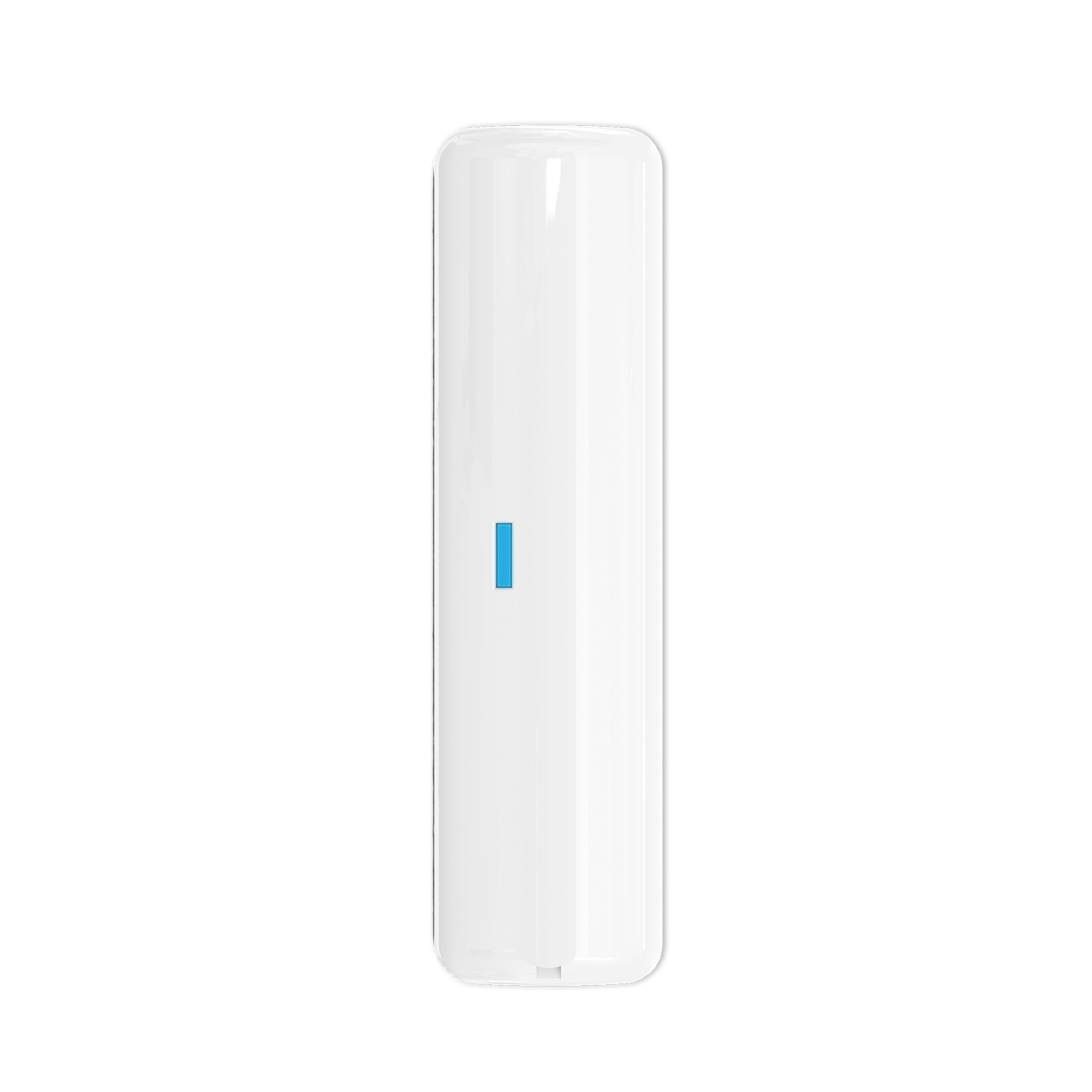

(English) SHOCK/W

Description

(English) Crafted from durable, high-grade ABS plastics, the SHOCK/W is perfect for places that need a shock sensor, such as walls, ceilings, door frames, and window frames. As the detector does not contain any moving parts, it is non-gravity dependent and can be installed in any plane or orientation.

Key Features
  • (English) Piezo electric sensor detection
  • (English) Adjustable sensitivity
  • (English) Reverse polarity protection

Product Features

(English) Sleek and stylish design

(English) Made with robust, high quality ABS plastics, the SHOCK/W is specifically designed to be placed in positions where it is necessary for a shock sensor to be present, such as walls, ceilings, door and window frames.

(English) Piezoelectric sensor detection

(English) The detector does not contain any moving parts and is therefore non-gravity dependent – the SHOCK/W can be installed in any plane or orientation.

(English) Adjustable sensitivity

(English) The pulse count is selectable and can be set to 1, 2, 4 or 6.

(English) Latch functionality included

(English) When this feature is activated and the sensor is triggered, the LED on the sensor will stay on in order to display that it has been activated. To reset, the power must be removed from the device.

(English) Reverse polarity protection

(English) Connecting power with incorrect polarity is an easy mistake to make. Fortunately, the shock sensor is protected with reverse polarity protection.

(English) Gross attack detection

(English) A vibration higher than the calibrated sensitivity will override the pulse count feature and directly activate the alarm output.

安全传感器技术参数

(English) Detection method

(English) Piezoelectric sensor

(English) Range

(English) 2.5m radius (nominal), Sensitivity adjustable

(English) Digital Signal Processing

(English) Yes

(English) Sensitivity settings

(English) High or low range

(English) Potentiometer fine tuning

(English) Yes

(English) Pulse count

(English) 1, 2, 4 or 6

(English) LED enable

(English) By jumper

(English) Latching feature

(English) By jumper

(English) Front and rear tamper protection

(English) Yes

(English) Removable eletronics

(English) Yes

(English) Gross attack activation

(English) Yes

(English) Casing

(English) ABS plastics

环境和工作参数

(English) Operating temperature

(English) -10ºC to +40ºC

(English) Dimensions (W x H x D)

(English) 29 x 107 x 21.5 mm

电气和电池参数

(English) Power supply

(English) ~9-16VDC (12VDC nominal)

(English) Quiescent current consumption

(English) ~16mA @ 12VDC

(English) Maximum current consumption

(English) ~30mA @ 12VDC

(English) Relay type

(English) Solid state

(English) Outputs relay

(English) 12VDC, 50mA protection

(English) Tamper terminal

(English) 12VDC max, 50mA max

证书和保修

(English) Security Grade

(English) Grade 2

(English) Environmental class

(English) II

(English) Electrical conformity

(English) CE

(English) Warranty

(English) 5 years

产品代码和选项

(English) Wired Shock Sensor
(English) SHOCK/W
SAP Code : 361301390
