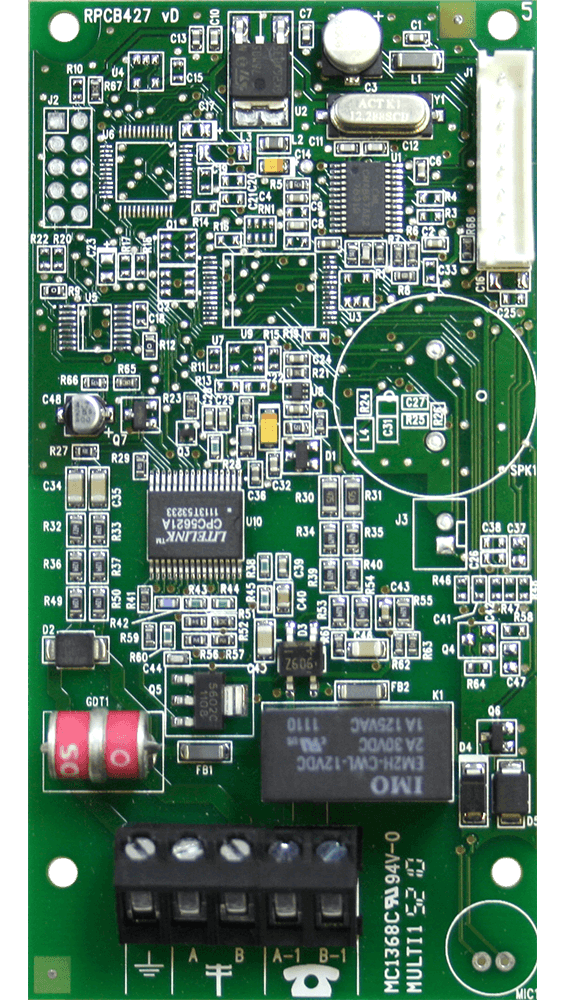

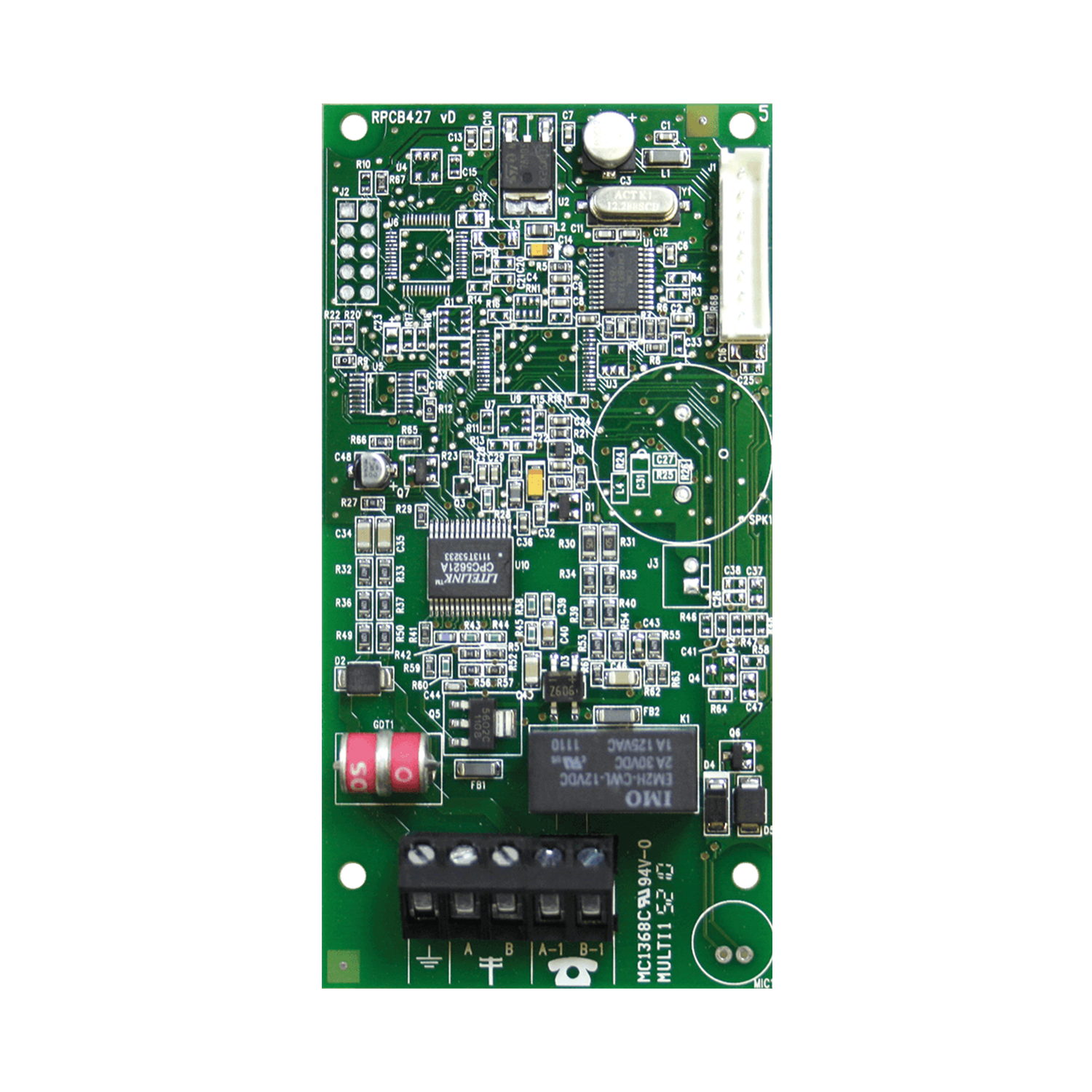

DIGI-1200

Description

The DIGI-1200 provides PSTN communications on Enforcer and EURO panels.

Key Features

PSTN communication module for the Pyronix control panels
Signalling formats: Fast Format, Telenot, SIA Level 1, SIA-DK, Contact ID
Up and download on Enforcer and EURO Panels

Product Features

InSite UDL

Enables Pyronix control panels to upload/download data to a PC running InSite 2013 v9.1r software.

Alarm calls

Up to 4 alarm calls (to ARC or mobile phone SMS message).

Communicating formats

Fast Format 4.8.1, 4.16.1, 6.8.1 & 6.16.1
Telenot
SIA Level 1
SIA-DK
Contact ID
ARM Compatible (Automatic Remote Maintenance)

EN50131-1:2006+A1:2009 | EN50131-3:2009 | EN50131-6:2008 | EN50131-5-3:2005+A1:2008 | PD6662:2010

DIGI-1200 - Declaration of Conformity

Technical Specification

Communications and modems

Formats	Fast Format 4.8.1 \| 4.16.1 \| 6.8.1 \| 6.16.1
SIA Formats	SIA Level 1, SIA-DK
Contact ID	Yes
ARM Compatible (Automatic Remote Maintenance)	Yes
Baud Rate	1200bps

Communications and modems

Operating voltage	12VDC
Current consumption	20mA (In use: 40mA)

DIGI-1200 Datasheet

Communications modems Export Datasheet

Digi1200 - Installation Manual - English - RINS1509-3

DIGI-1200 - Declaration of Conformity

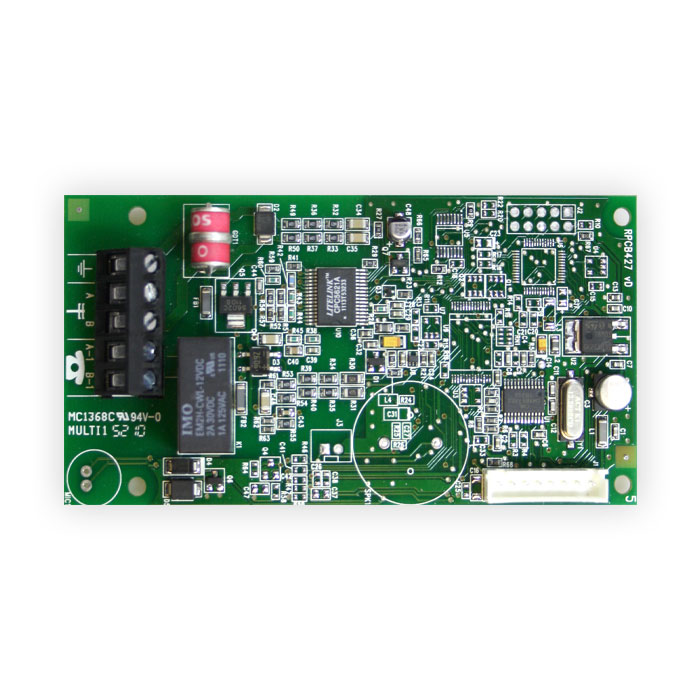

PSTN MODEM
