DIGI-WIFI

Description

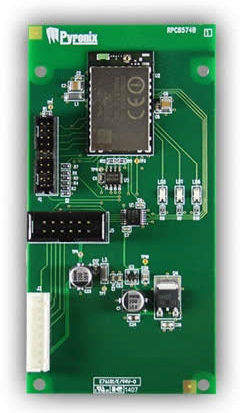

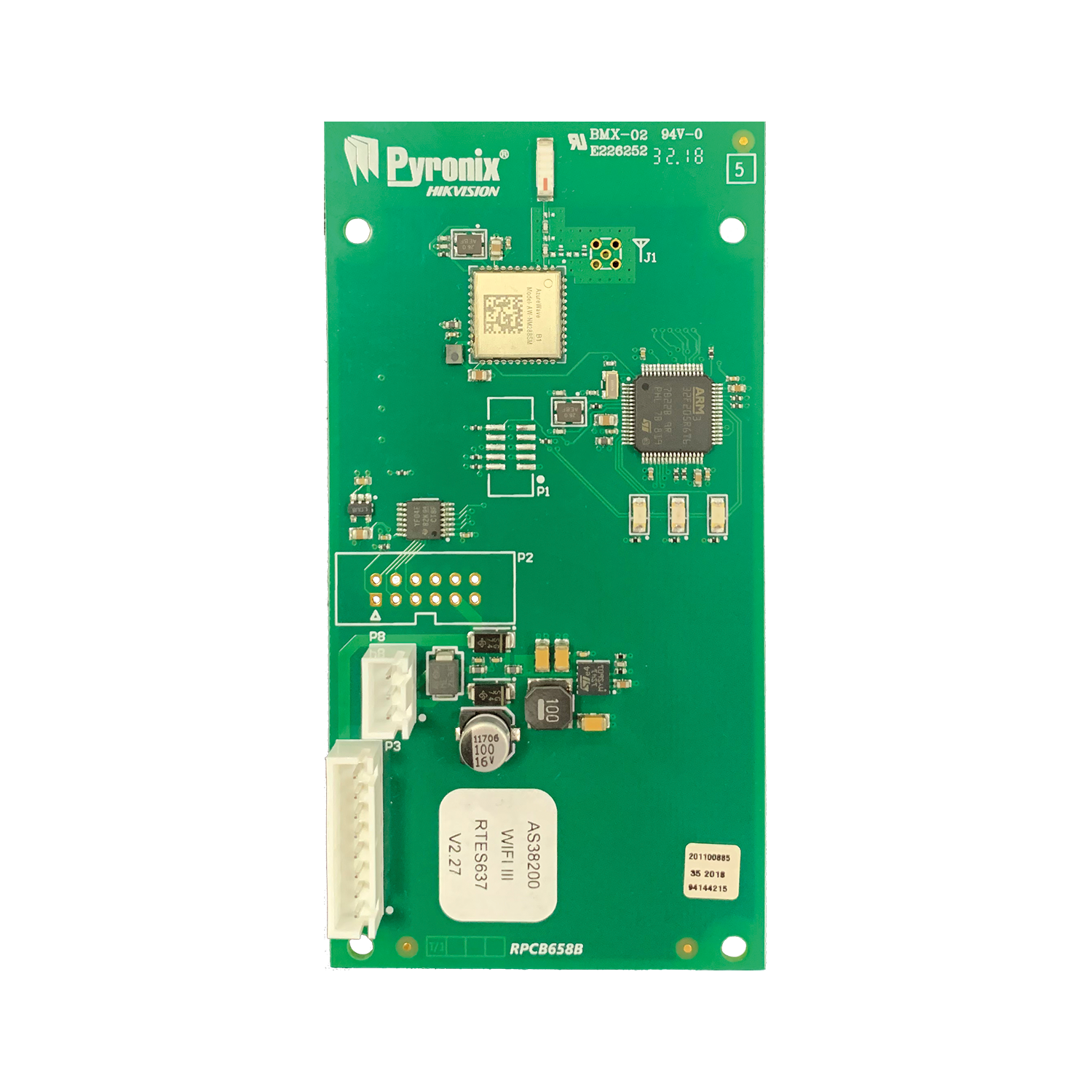

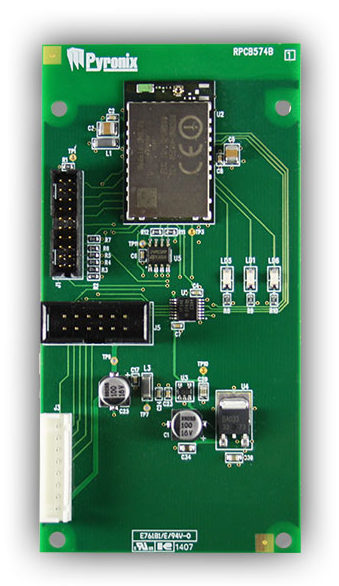

The DIGI-WIFI uses the existing properties internet connection to communicate with the PyronixCloud for HomeControl2.0 app control. Compatible with the Enforcer or EURO (using the external antenna version - DIGI-WIFI/XA), the DIGI-WIFI streamlines on-site setup and installation.

Key Features
  • WiFi Network communication module for the IP connected control panels
  • Uses existing broadband for app and IP connectivity
  • Low cost installation with no additional costs other than the existing broadband connection
Features

Product Features

WIFI Communication

The DIGI-WIFI is available for the Pyronix IP control panels range, giving HomeControl2.0 and PyronixCloud compatibility.

Speed of installation

This new communication module offers a very convenient solution with faster set up, faster connection speeds* and no ongoing data costs.

Utilise existing connections

Use the customers existing WIFI connection and log on directly on the users router for no additional ongoing connection costs for the user.

*Please Note: The PyronixCloud platform is a yearly subscription service and charges do apply. For more information please contact your installer or your dedicated account manager.

Certification

Compliance certied as SP5 EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 | EN 61000-6-3: 2007 +A1: 2011 | EN 50136-1: 2012 | EN 50136-2: 2013 | ETSI EN 300 328: V1.8.1 | ETSI EN 301 489-1: V1.8.1/ -17 V2.1.1 | CLC/ TS 50136-9: 2013

DIGI-WIFI & DIGI-WIFI/XA - Declaration of Conformity
Technical Specification

Communications and modems

Formats

Fast Format IP (UK Only), Contact ID IP, SIA IP, supports upload/downloading

Environmental and operating features

Certified operating temperature

-10°C to +40°C

Physical dimensions (H x W x D)

110 x 56 x 11 mm

Electrical & battery

Operating voltage

+12VDC

Quiescent current consumption

30mA

Certifications and warranty

Environmental class

II

EN Certificate

EN 50131-1: 2006, PD6662:2017

Electrical conformity

CE

Warranty

2 years
Codes & Options

Product Codes & Options

DIGI-WIFI
DIGI-WIFI
