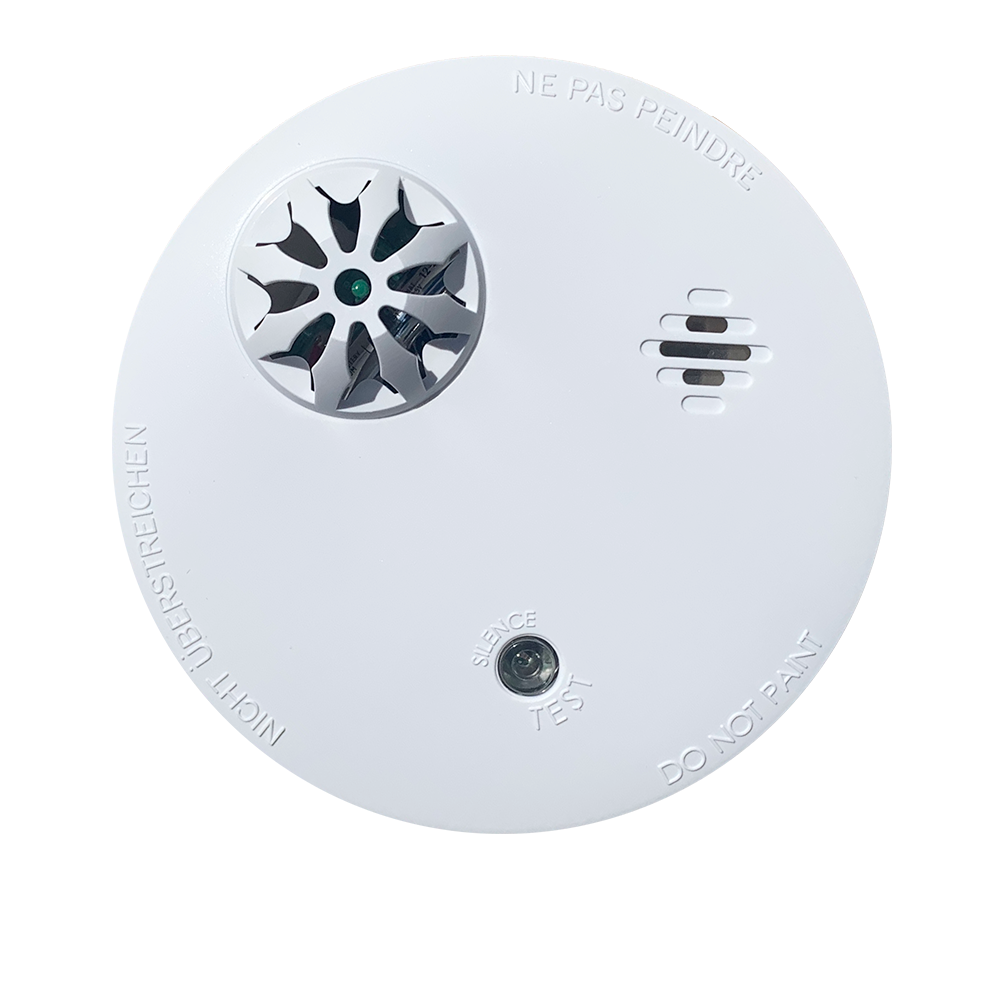

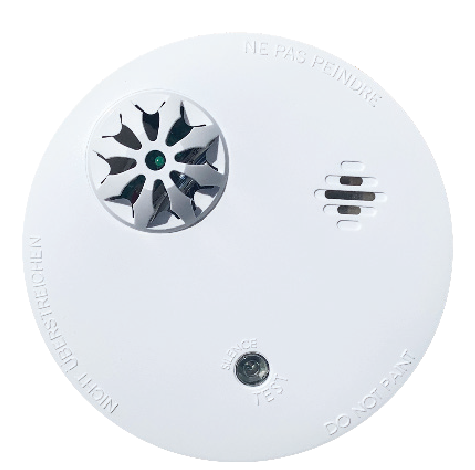

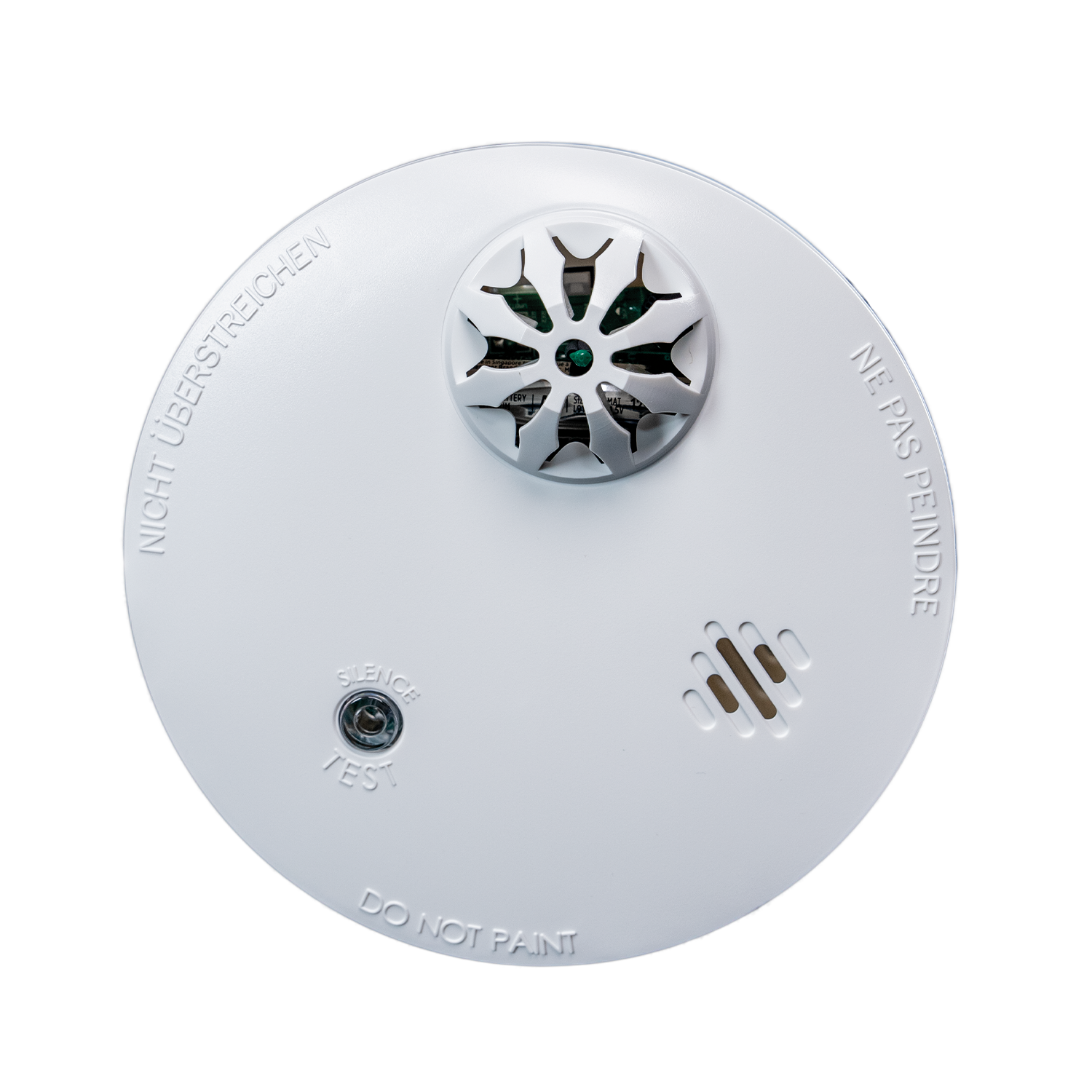

The HEAT-WE raises the alarm if the room temperature reaches 57°C and above. Perfect for areas like the kitchen, the HEAT-WE provides accurate and dependable fire detection, with prompt notification of any alarms via our always-connected app.
Adding another dimension to systems, the HEAT-WE raises the alarm if the room temperature reaches 57°C and above.
Perfect for areas such as kitchens, the HEAT-WE provides accurate and dependable fire detection, with prompt notification of any alarms via the always-connected app.
With a fixed detection heat of 57°C, the two-way wireless heat detector provides continuous and reliable safety sensing which can be easily and efficiently added to any Pyronix system.
The HEAT-WE has a built-in 85dB local sounder and flashing LED lights; providing a clear and obvious alarm when the environmental temperature reaches 57°C.
When the battery is running low on the radio module of the HEAT-WE, the detector will send a signal to the control panel to report the issue. If the user has the smart device app connected to the system, they’ll also receive a push notification to draw their attention to the fault.
If the housing of the HEAT-WE is dislodged, the rear tamper will trigger to alert that it is not fitted correctly.
The two-way wireless protocol has been developed by Pyronix to ensure that the communication between all wireless system components are encrypted.
Heat sensor |
Yes |
Tamper protection |
Yes |
Button sensor test |
Yes |
LED sensor test |
Yes |
Sound level |
85dB/3M |
Signal Strength Indicators (SSI) |
Yes |
Instant two way device control (ITDC) |
Yes |
Pyronix high security two way wireless data encryption protocol (TDE) |
Yes |
Pyronix intelligent jamming detection |
Yes |
Programmable wireless supervision time |
Yes |
868MHz transceiver FM technology |
Yes |
One-Push-To-Learn |
Yes |
Tranmission method |
Fully encrypted rolling code |
Certified operating temperature |
-10°C to +50°C |
Heat alarm temperature |
57ºC |
Humidity |
5 - 90% |
Sensitivity range |
Derived from EN54-5, Temp class: A2 |
Physical dimensions (ø x D) |
120 x 52.45mm |
Weight (including battery) |
172g |
RF power supply |
1 x 3V CR123A (replaceable) |
RF battery life |
2 years |
Sensor power supply |
2 x 1.5V AA (non-replaceable) |
Sensor battery life |
10 years |
Sensor low voltage alert |
2.6 - 2.7VDC |
RF low voltage alert |
2.5V +/-5% @ 25C |
BSI certified |
BS 5446-2:2003 |
Electrical conformity |
CE |
Environmental class |
II |
