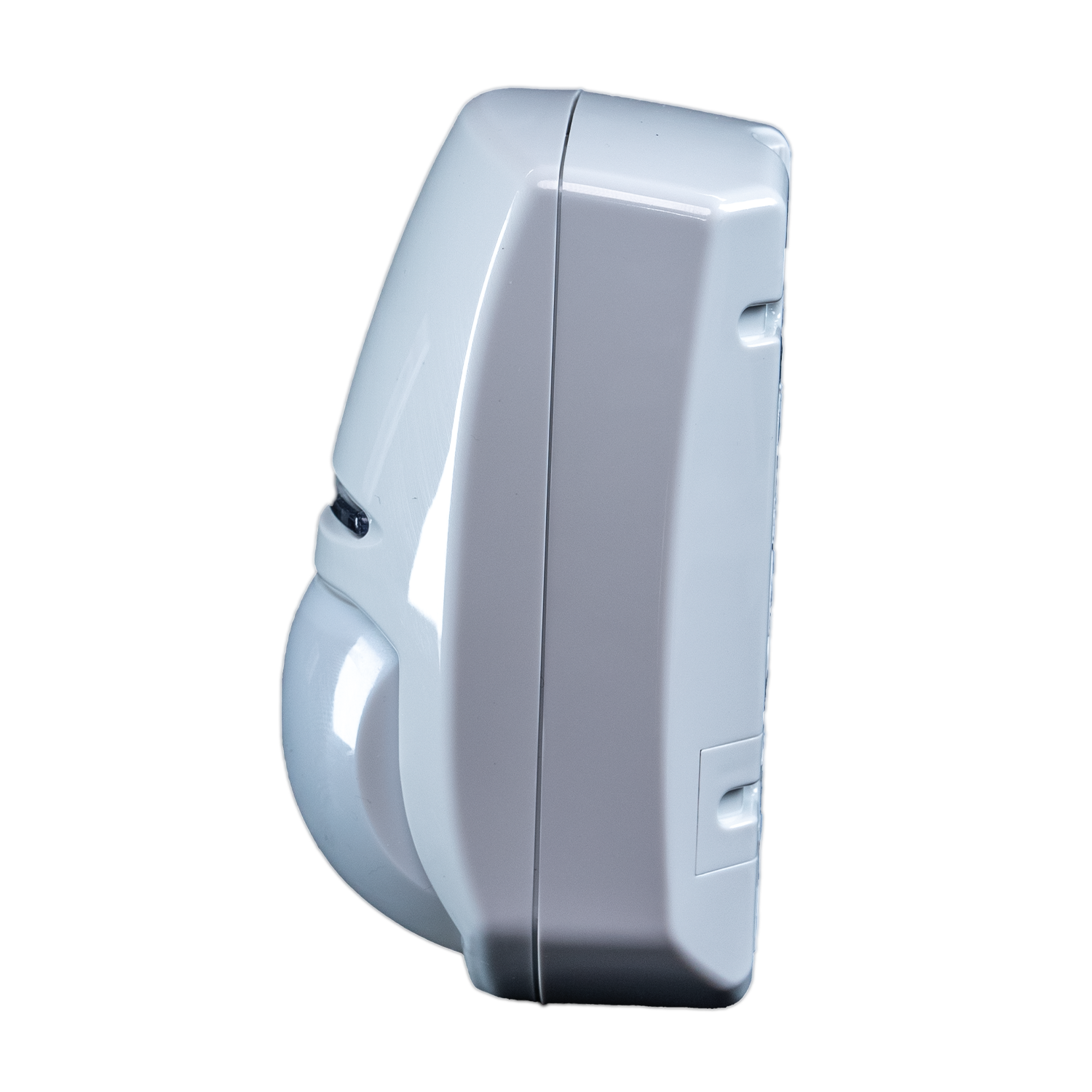

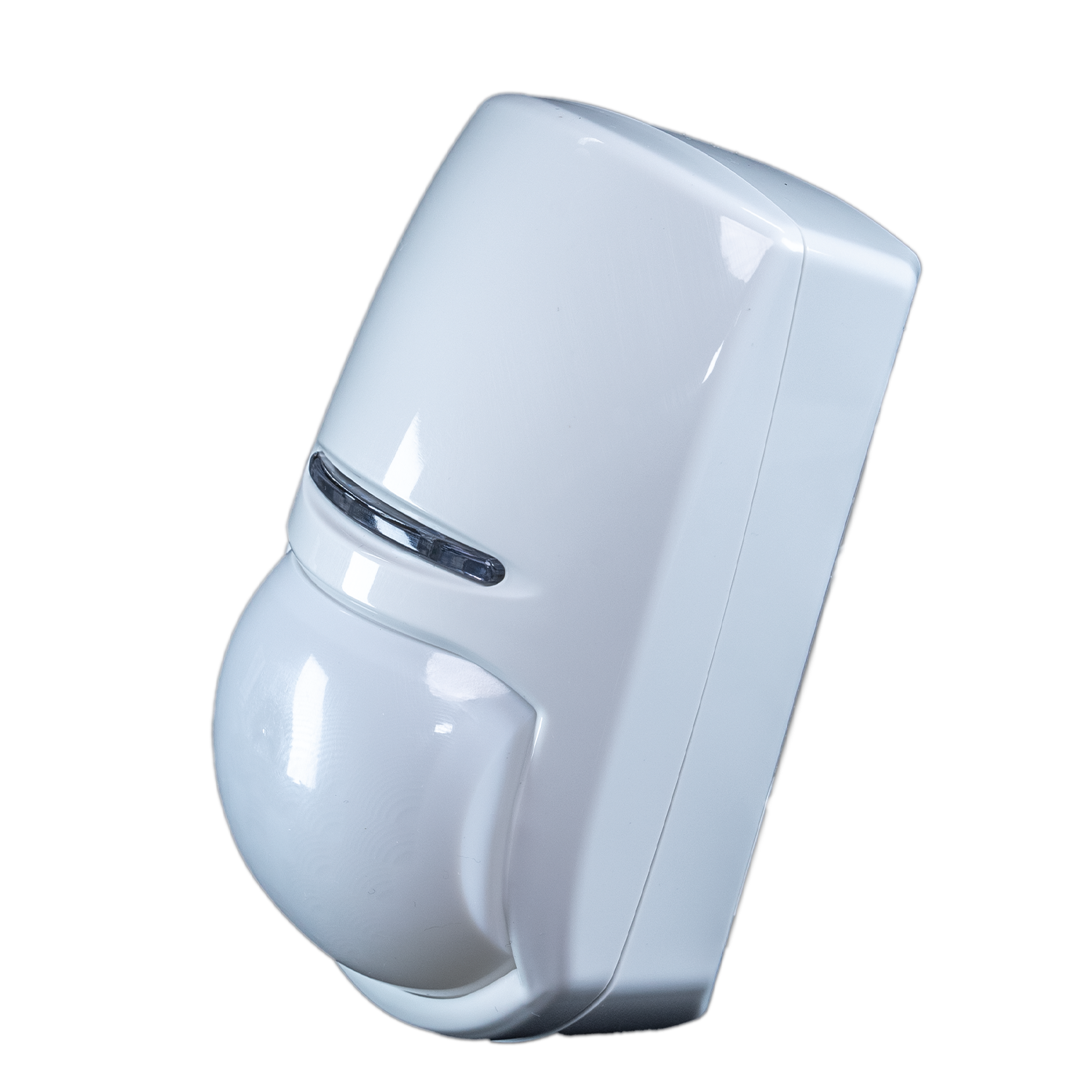

The KX10DP-WE is a pet-tolerant detector, featuring a dual element pyro-electric sensor. It's perfect for pet owners seeking assurance that their homes are secure. Employing KX intelligent sensor technology, it distinguishes between pets and potential intruders, providing added peace of mind.
With two-way wireless technology this pet tolerant detector is the ideal choice if you have dogs or cats but still want extra peace of mind that your home is protected. Using the KX intelligent sensor technology, the KX10DP-WE can identify the difference between your prized pet and an intruder.
Being wireless there is minimal disruption on installation and with a choice of using keyfob, proximity tag, code or your smartphone or tablet with the ProControl+ System, arming or disarming your system couldn’t be easier.
One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.
This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises several key components:
The result of this combination is lower infra-red signal noise amplification and therefore better immunity.
The detectors intelligent PI (Pet Immune) technology analyses the difference between an intruder and a pet signal, with immunity up to 20kg and 10m coverage range.

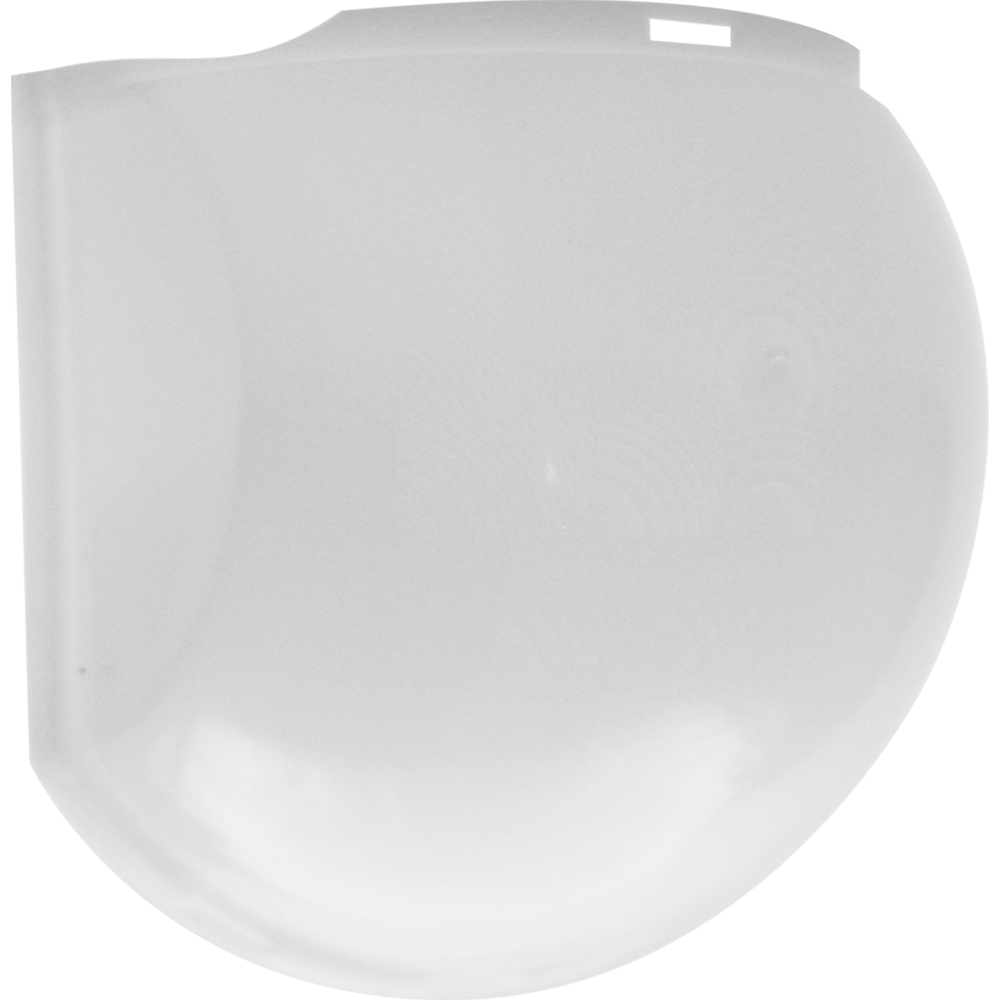

Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.
3mm polished finish, reduces electrostatic interference on the PIR sensor.
Blue Wave technology |
Yes |
Automatic sensitivity |
Yes |
Digital temperature compensation |
Yes |
Tamper protection |
Front and rear |
Signal Strength Indicators (SSI) |
Yes |
Signal Strength Indicators (SSI) |
Yes |
Instant two way device control (ITDC) |
Yes |
Pyronix high security two way wireless data encryption protocol (TDE) |
Yes |
Pyronix intelligent jamming detection |
Yes |
Programmable wireless supervision time |
Yes |
868MHz transceiver FM technology |
Yes |
One push to learn |
Yes |
Tranmission method |
Fully encrypted rolling code |
Transmission range |
300m in open space |
Maximum range |
10m |
Animal immunity |
25kg |
Detection zones |
52 |
Detection planes |
5 |
Optimum coverage height |
1.8 - 2.4m |
Certified mounting height |
1.8 - 2.4m |
Storage temperature |
-20C to 50C |
Certified operating temperature |
-10C to 40C |
Nominal operating temperature |
-10C to 50C |
Physical dimensions (H x W x D) |
117 x 69 x 50mm |
Battery type |
1 x CR123A |
Battery life |
up to 2 years |
Battery voltage |
3.0V |
Low battery threshold |
2.5V +/- 5% at 25C |
Security Grade |
Grade 2 |
Environmental class |
II |
EN Certificate |
EN50131-5-3: 2005 + A1: 2008, EN50130-4: 1995 + A1: 1998 + A2: 2003, EN61000-6-3: 2007 |
Certification type |
IMQ |
Certificate number |
CA12.01426 |
Electrical conformity |
CE |
Warranty |
2 years |
