LightCamera

Description

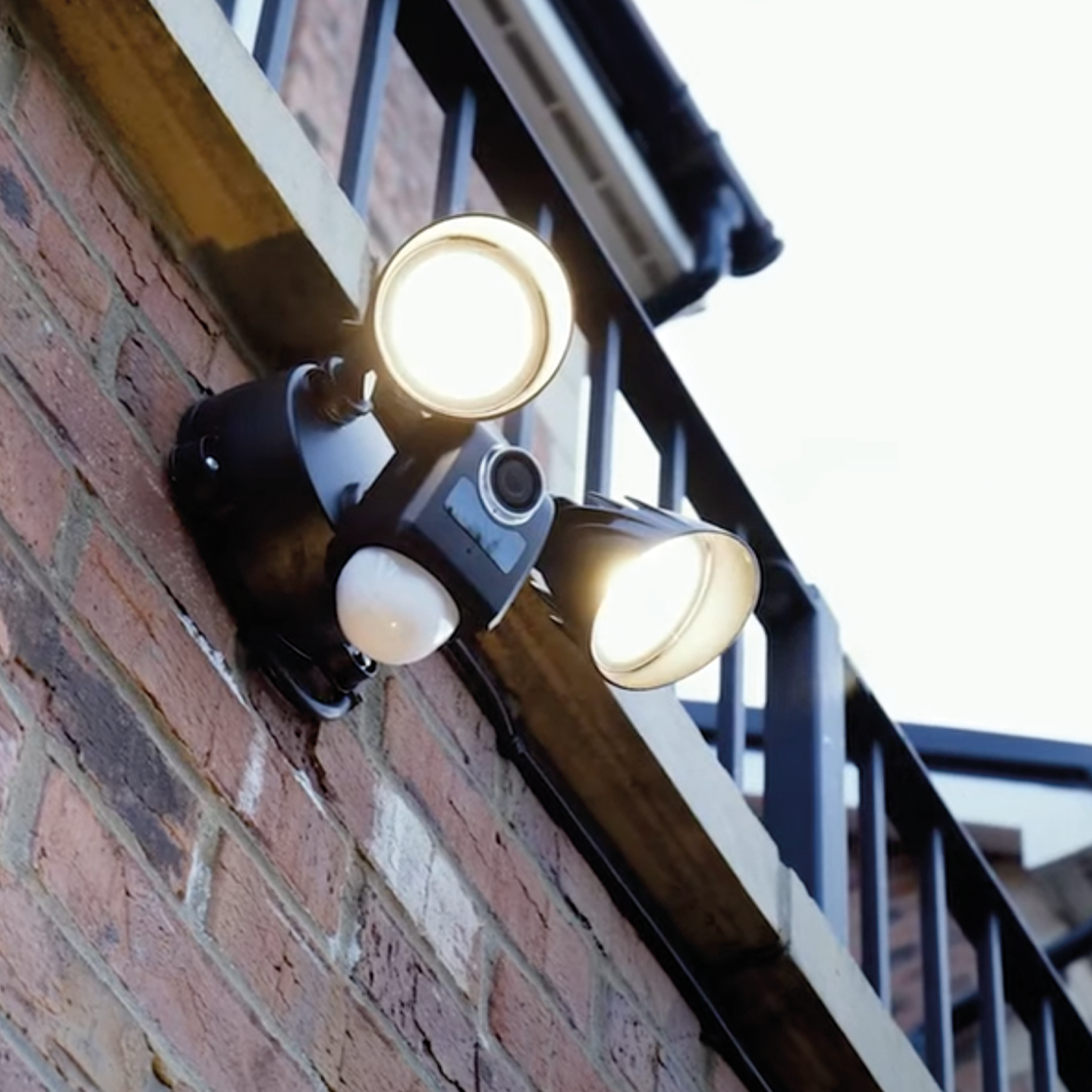

The LightCamera increases property visibility and illuminates potential intruders. It encourages proactive security through functions such as voice push notifications and video verification. With a 270-degree PIR sensor, it offers constant all-round protection, while its 1080p Full-HD video captures clear images day and night, enabling users to swiftly confirm and act upon visual information.

Key Features

270 degree PIR sensor
Dual lights with combined brightness of 2500 lumens
Up to 18m IR range

Features
Technical Specification
Codes & Options
Videos

Features

Product Features

Video Verification

Link with external detectors through the PyronixCloud for advanced video verification of alarm events direct to the smartphone app. Receive pre and post alarm footage to reduce false activations and act when you need to.

Omnidirectional protection

Fitted with 270 degree PIR sensor, it provides every property with constant omnidirectional protection, whilst 1080p Full-HD video provides clear and crisp images day and night.

Fully customisable active defence

The LightCamera is equipped with customisable detection areas that ensure false alarms are kept to a minimum, as well as adjustable motion sensitivity and custom alarm response for notifications of events.

Real-time HD video on the move

No matter where you are, you can watch live and recorded video from your smart device, as well as control your entire Pyronix security system with the same app.

Dual lights

Equipped with dual lights that activate with the detection of motion, they produce a powerful combined brightness of 2500 lumens to illuminate the area and put any potential intruders in the spotlight.

Up to 18m IR range

The LightCamera utilises invisible IR light via its in-built IR LED to deliver optimum and discreet coverage of outdoor spaces up to 18m, even in complete darkness.

Two-Way Audio

The LightCamera’s built-in speaker and microphone allows you to listen and talk to visitors on the move with the always connected app.

Weatherproof

The LightCamera boasts IP65 weatherproof rating, which means that it is capable of withstanding severe weather conditions. It is dust tight and even protected against projected water.

Micro-SD card compatible

Supports Micro-SD card (Up to 128GB) and local recording. With an 8GB Micro-SD Card, you can achieve around 15.5 hours of continuous recorded footage.

*Professional Installation Required

The LightCamera requires a professional installation and is only sold through professional security distributors. It’s a time efficient up-sell on maintenance or initial installation visits, giving more value to the installer and end user.

Training on Demand Course

View the training video now via Training on Demand. Register as an Installer on PyronixCloud.com and when approved, access a wealth of training materials.

Technical Specification

Camera technical characteristics

Resolution	1080p
Field of view	140° (Diagonal), 115° (Horizontal)
Max. resolution	1920 x 1080p (25fps)
Frame rate	50Hz @ 25fps, Adaptive frame rate of network transmission
Video compression	H.264
IR range	Up to 18m
Back light compensation (BLC)	✓
DNR	3D DNR
Motion detection (by camera)	✓

PIR Sensor parameters

PIR motion detection distance	✓
PIR detection distance	9m
PIR detection range	270°

Light parameters

Lights	2
LED	SMD LED
Brightness	2500LM (-10%)

Other technical specifications

Audio input & output	Built-in omni-direction microphone
Audio output	Built-in loudspeaker
Local storage	Supports Micro-SD card (Up to 128GB)
Storage capacity	Up to 15.5 hours with an 8GB SD Card
Alarm	1 alarm input, 1 alarm output
Siren	100-decibel alarm

Network parameters

Wireless	Wireless 802.11 b/g/n @2.4GHz only (2T2R, Dual-antenna)
Network configuration	Soft AP configuration
Minimum network requirement	2.0 Mbps

Environmental and operating features

Operating conditions	-30°C to +50°C
Power supply	Hardwired (110V-240V)
Power consumption	≤2W (normal),≤8W (max)
Dimensions (W x H x D)	196mm x 211mm x 227mm
Weight	1757g

Certifications and warranty

Electrical conformity	CE
Warranty	1 year

Codes & Options

Product Codes & Options

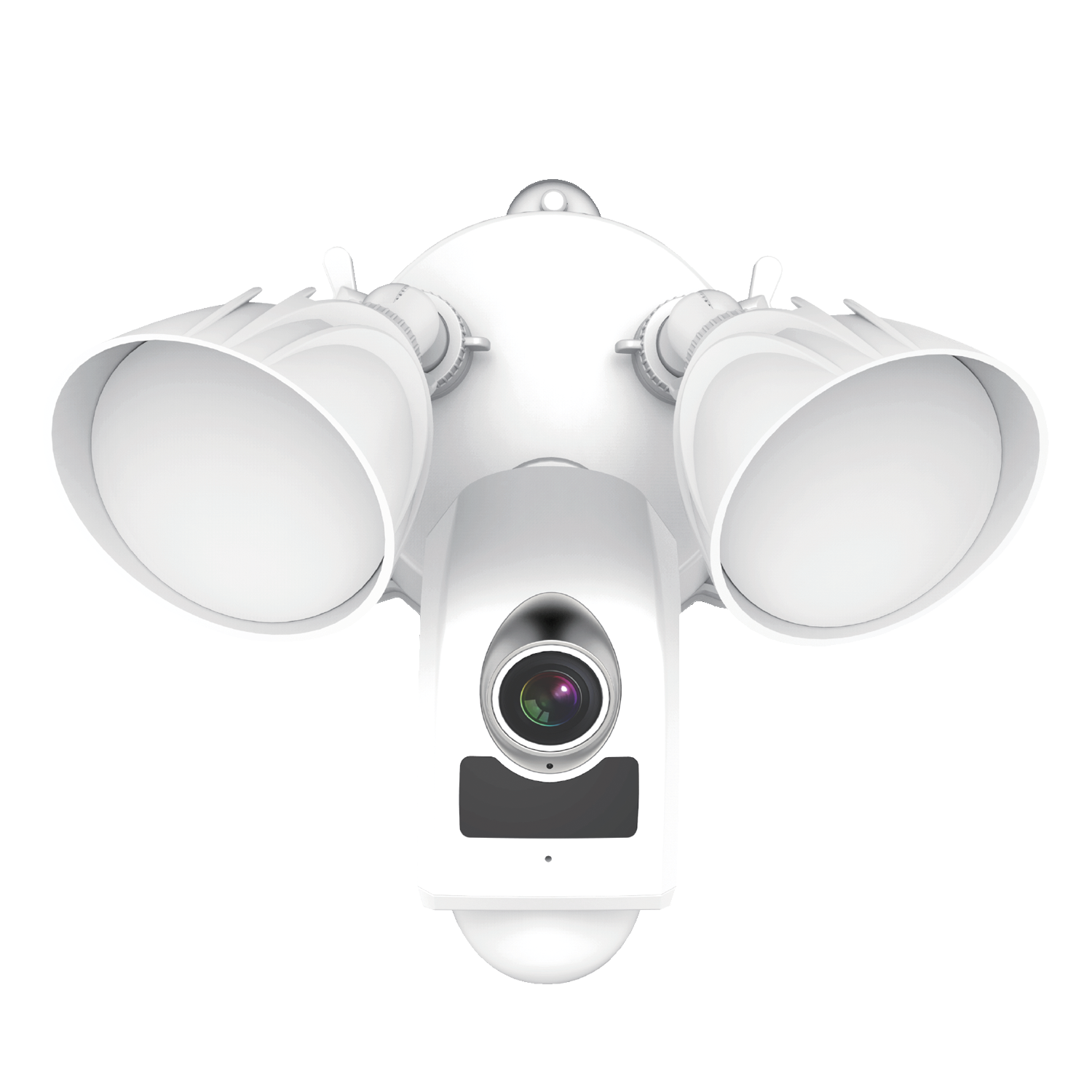

White option

Light-CAM/wht
SAP: 361301832

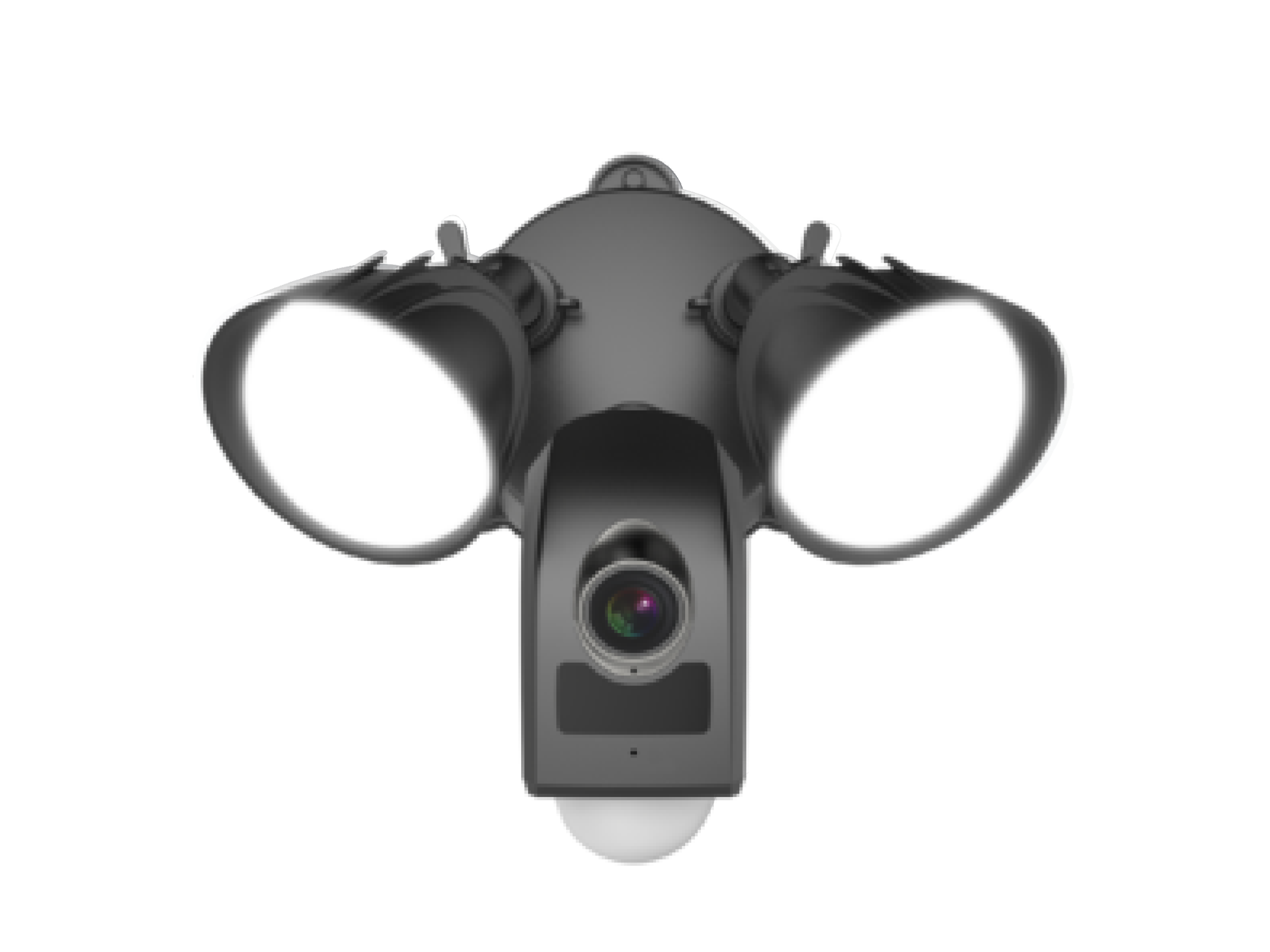

Black option

Light-CAM/blk
SAP: 361301833
