PCX 78

Description

Key Features
  • PCX hybrid control panel
  • Maximum total zones 78
    - 8 onboard wired inputs expandable to 78
    - Expandable with up to 64 wireless zones
  • 13 programmable wired outputs expandable to 85
  • 8 independent areas
  • Arm and disarm via app, pin code, proximity tag or keyfob
  • Wi-Fi, LAN, GPRS, and PSTN modules available
  • Control your security system from anywhere with ProControl+
  • Complies with EN50131-1
    Security Grade 3, Environmental Class II
  • Connect to UDL for remote diagnostics

Product Features

Control security from anywhere

Now you can have a hybrid security system which you can control from anywhere.

Arming and disarming, checking the system status or triggering outputs, you have ultimate control of your home security whenever required.

The versatile PCX 78 has all the features of its predecessor and more.

Connect up to 78 wired devices such as detectors, sounders and sensors, along with 64 wireless devices including magnetic contacts, smoke and CO sensors using the RIX32-WE, providing new levels of flexibility.

With 15 on-board outputs, which can be expanded to an incredible 85, you can also control programmable automation triggers such as shutters, garage doors and gates – all from the palm of your hand.

No on-site IT configuration

ProControl+ is connected through a cloud server, so there’s no need to set up static IP addresses or configure dynamic DNS (DYNDNS). Instead, simply set up an account on PyronixCloud.com.

Highly secure connection

ProControl+ and PyronixCloud communications are fully encrypted to the highest standard and no sensitive user data is stored on the PyronixCloud.

Easy installation

Program panel, create account, download app, connect to cloud and ProControl+ is ready to use.

Independent and sub-areas

Any input can be allocated to up to 8 areas and using proximity readers, the sub-areas can be armed/disarmed independently from main areas.

Inputs and outputs

The PCX 78 has 13 on-board outputs and up to 78 fully programmable inputs, including inertia inputs (analysed inputs). The on-board outputs can be expanded to 85.

Available language(s)

American English

.

.

.

EN50131-3:2009 | EN50131-1:2006+A1:2009 | EN 50131–6:2008 | PD6662:2010

Control panel technical characteristics

Two-way wireless technology

Using the RIX32-WE wireless input expander

Independent areas

8

Tamper protection

Case tamper & back tamper

User codes and prox tags

100

Guard codes

20

Reporting formats

Fast format, SIA3 and Contact ID

System logs

1250

Inputs & outputs

Input type

Wired & Wireless (with RIX32-WE)

Onboard wired inputs

8

Total inputs

78

Wired EOL inputs

78 (with 8 RIXs, 6 Keypads)

Two-way wireless inputs

64 (with 2x RIX32-WE)

Outputs on board

15

Output modules

2

Maximum outputs

85

Two-way wireless keyfobs

32 (with a RIX32-WE)

Two-way wireless sirens

2 (with a RIX32-WE)

Wired keypads

Max 6

Readers and entry control

Max 5

Communications and modems

Modem type (optional)

GPRS

LAN modem (optional)

Yes

Supports PyronixCloud & ProControl+ App

Yes

Event Signalling to Insite

Yes

Formats

Contact ID IP, SIA Level 3 IP

Environmental and operating features

Storage temperature

-20C to +60C

Certified operating temperature

-10C to +40C

Nominal operating temperature

-10C to +40C

Physical dimensions (W x H x D)

297 x 250 x 82mm (small case)
390 x 305 x 100mm (large case)
PCB: 170 x 90 x 40mm

Weight

Small case 4.8kg inc. battery
Large case 11.5kg inc. battery

Electrical & battery

Integrated power supply

1.5A (small casing)

Battery capacity

7.0Ah

Battery supply protection

Reverse polarity protected

Battery low voltage protection

10v low voltage cut off

Internal battery charger

750mA Continuous

Recharge time

<24 hours

Mains supply

230V (220-240V) AC Max 250mA

Operating voltage

22V AC Nominal (20%), 50Hz (10%)

Quiescent current consumption

<90mA

Fuse (battery)

1.6A slow blow, 20mm

Fuse (12v outlets)

800mA fast blow, 20mm

Fuse (mains)

315mA Anti-surge, 20mm

Fuse (RS485 data BUS)

800mA fast blow, 20mm

Resistance (wired inputs)

Normal

0k5 to 8k3

Intruder

1k5 to 5k9

Tamper

<0k5 or >17k

Fault

6k to 8k1

Masking

8k2 to 17k

Certifications and warranty

Security Grade

Grade 2 small case
Grade 3 large case

Environmental class

II

EN Certificate

EN50131-3:2009 | EN50131-1:2006+A1:2009 | EN50131-6:2008 | PD6662:2010

Certification type

IMQ

Certificate number

CA12.01494

Electrical conformity

CE

Warranty

2 years

Product Codes & Options

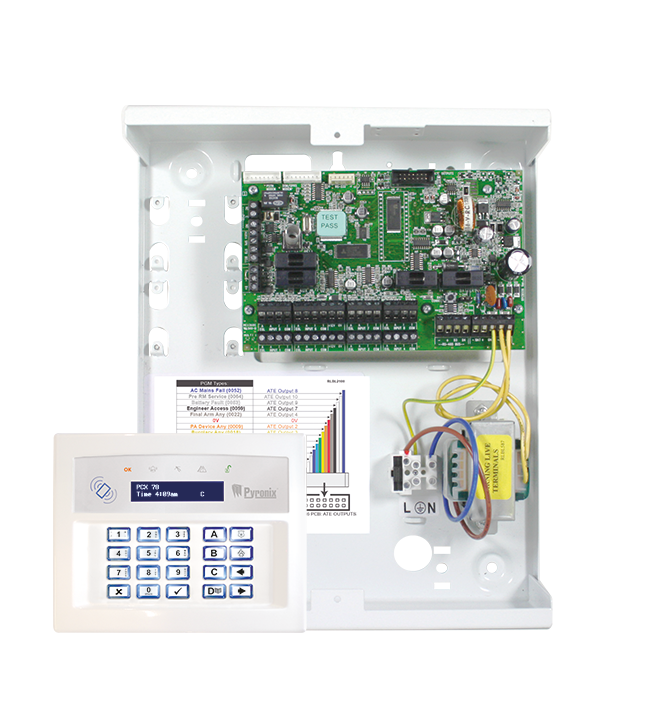

PCX 78S APP small metal casing (American English)
Partcode: PCX/AM078-S0
SAP: 361301737

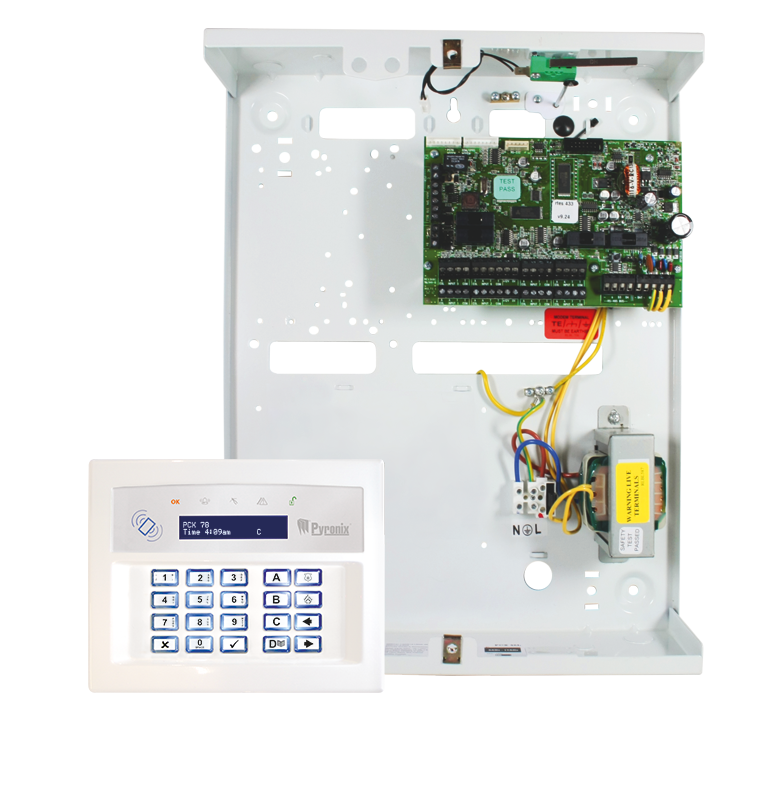

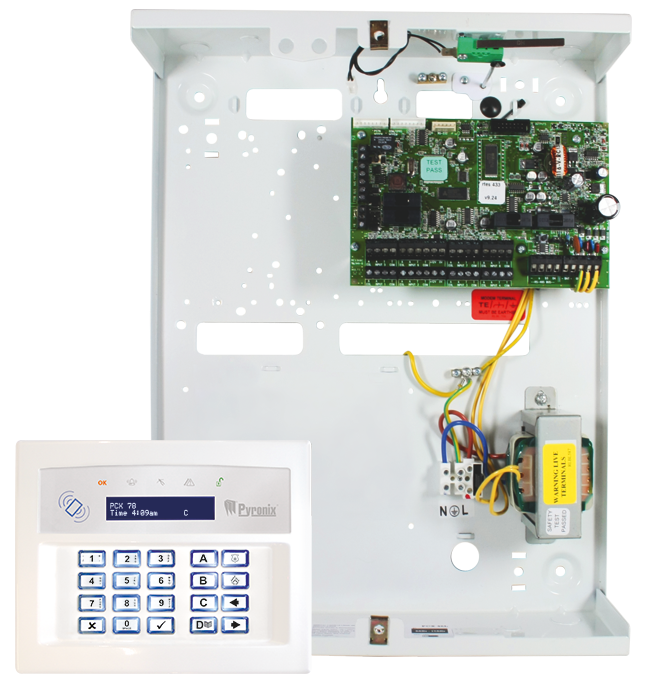

PCX 78L APP large metal casing (American English)
Partcode: PCX/AM078-L0
SAP: 361301736
