Clear LED indication of system status including ready, alarm, tamper, fault and unset.
Rear plastics contain cable management routes to prevent the internal components of the keypad becoming crowded with wires.
The keypad allows an additional two inputs and one output to be wired directly to it.

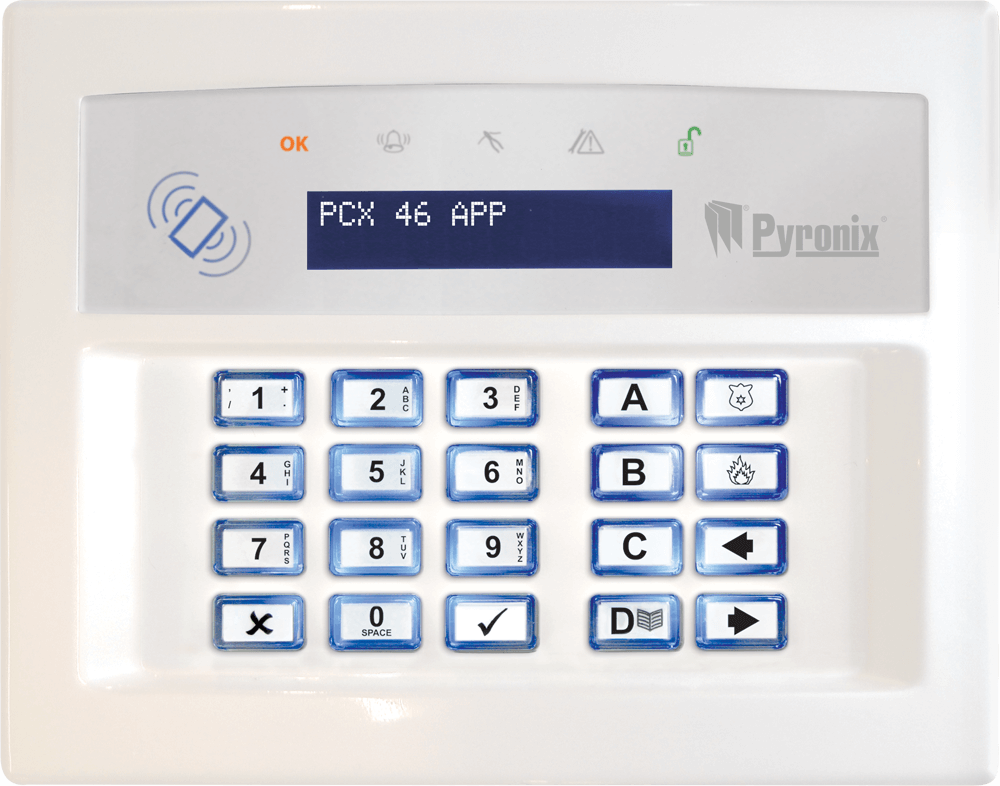

LCD keypad with icon display |
Yes |
Integrated prox reader |
Yes |
System status display |
Yes |
Entry and exit tones |
Yes |
Backlit Keys |
Yes |
Tamper protection |
Front and rear |
Wall mounted |
Yes |
Flushmount |
Yes - with flush mount back box |
Storage temperature |
-10C to +40C |
Certified operating temperature |
-10C to +40C |
Nominal operating temperature |
-10C to +40C |
Physical dimensions (H x W x D) |
160 x 126 x 30mm |
Operating voltage |
9-15V DC |
Quiescent current consumption |
<50mA |
Normal |
1k4 to 2k9 |
Intruder |
4k2 to 7k8 |
Tamper |
<1k4 or >22k |
Fault |
8k to 11k3 |
Masking |
(6k8): 11k6 to 22k |
Security Grade |
Grade 3 |
Environmental class |
II |
EN Certificate |
SG3 ECII EN50131-3:2009 EN50131-1:2006+A1:2009 PD 6662: 2010 + IA: 2015 |
Electrical conformity |
CE |
Warranty |
2 years |
