PCX-RIX8+
Description
Key Features
- RS485 Expander
- 8 Double Pole or Double EoL Inputs
- 4 Transistor Outputs
Hover over images to zoom
Product Features
Expand your systems potential

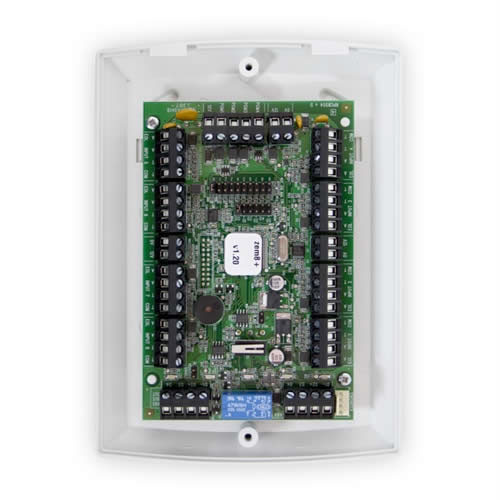

PCX-RIX8+ allows you to add an additional 8 inputs and 4 outputs to your wired or hybrid system. The polycarbonate case comes with tamper protection.
RS485 Repeater
Enables you to expand the data bus range
8 Double Pole or Double EoL Zone Expander
4 Transistor outputs available
Input and output expanders technical characteristics
Plastic housing |
Yes |
Tamper protection |
Case tamper |
Inputs & outputs
Wired EOL inputs |
8 |
Wired double pole inputs |
8 |
Total inputs |
8 |
Outputs on board |
4 |
Environmental and operating features
Certified operating temperature |
-10C to +40C |
Nominal operating temperature |
-10C to +40C |
Physical dimensions (H x W x D) |
173 x 126 x 31mm | PCB 112 x 64 x 17mm |
Weight |
260g |
Electrical & battery
Operating voltage |
10.5V to 15V DC |
Quiescent current consumption |
40mA |
Certifications and warranty
Security Grade |
Grade 3 |
Environmental class |
II |
EN Certificate |
EN50131-1:2006 | PD6662:2010 |
Certification type |
Self-certified |
Electrical conformity |
CE |
Warranty |
2 years |
Product Codes & Options
PCX-RIX8+
FPPCX-RIX8+
