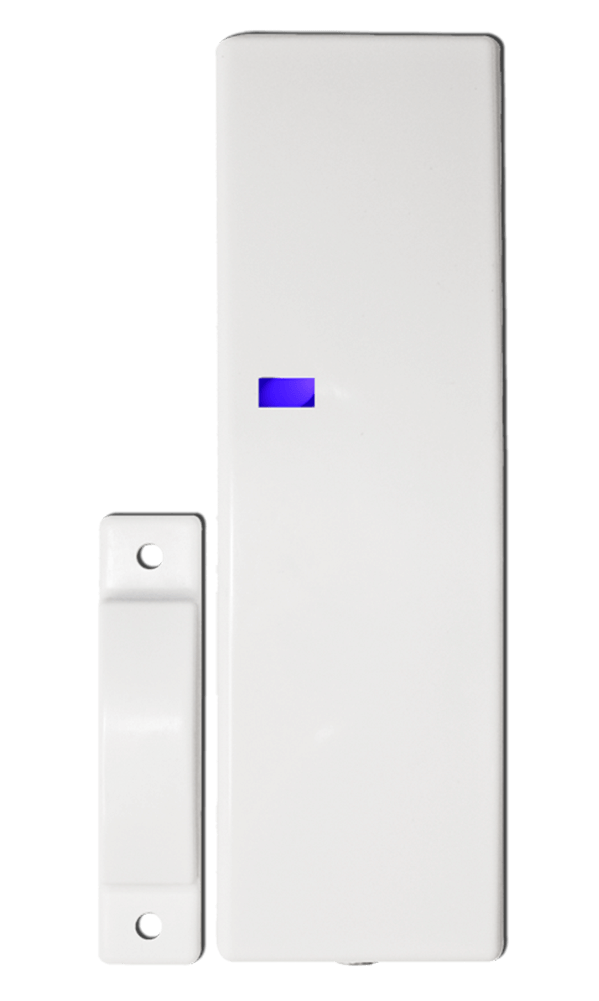

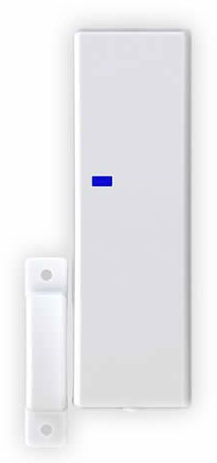

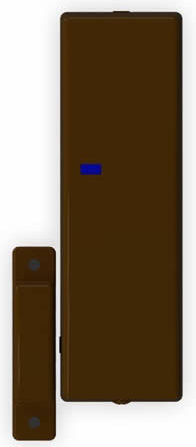

Two-way wireless, double input multi-functional universal transmitter, with 1 reed/magnetic contact and 1 common tamper input.
The RS2-WE can be mounted on typical building materials such as wood, PVC, brick or metal for example.
Magnetic contact |
Yes |
Roller shutter |
Yes |
Tamper protection |
Front and rear |
Terminal for N/C input and reed switch |
Yes |
Terminal for N/C input and/or roller shutter |
Yes |
Magnet included |
Yes |
Tamper input |
Yes |
Signal Strength Indicators (SSI) |
Yes |
Instant two way device control (ITDC) |
Yes |
Pyronix high security two way wireless data encryption protocol (TDE) |
Yes |
Pyronix intelligent jamming detection |
Yes |
Programmable wireless supervision time |
Yes |
868MHz transceiver FM technology |
Yes |
One push to learn |
Yes |
Tranmission method |
Fully encrypted rolling code |
Transmission range |
1.6km in open space |
Onboard wired inputs |
2 inputs and 1 tamper input |
Storage temperature |
-20C to 50C |
Certified operating temperature |
-10C to 40C |
Nominal operating temperature |
-10C to 50C |
Physical dimensions (H x W x D) |
30 x 115 x 35mm | Magnet: 17 x 56 x 12.7mm |

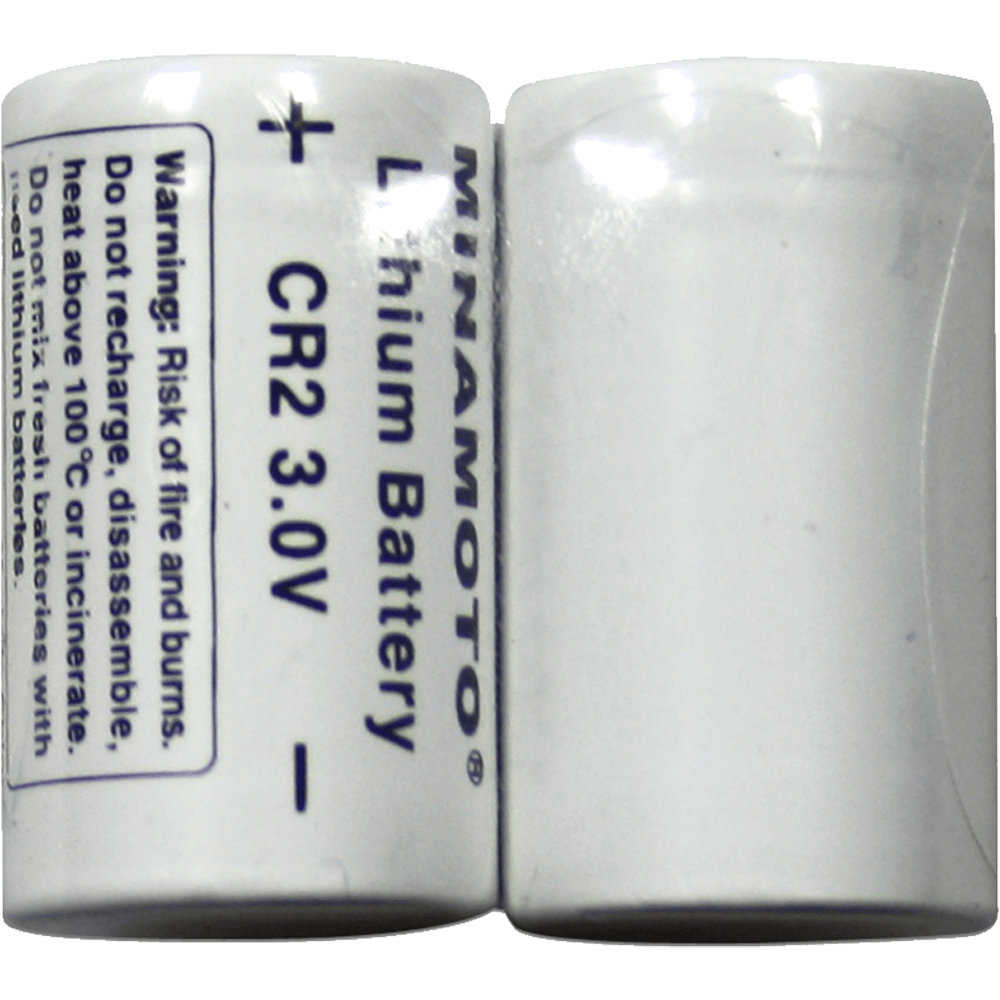

Battery type |
1 x 3V CR2 lithium battery |
Battery life |
up to 2 years |
Low battery threshold |
2.5V +/- 5% at 25C |
Security Grade |
Grade 2 |
Environmental class |
II |
EN Certificate |
EN50131-2-6:2008 | EN50131-5-3:2005+A1:2008 |
Certification type |
Self-certified |
Electrical conformity |
CE |
Warranty |
2 years |
