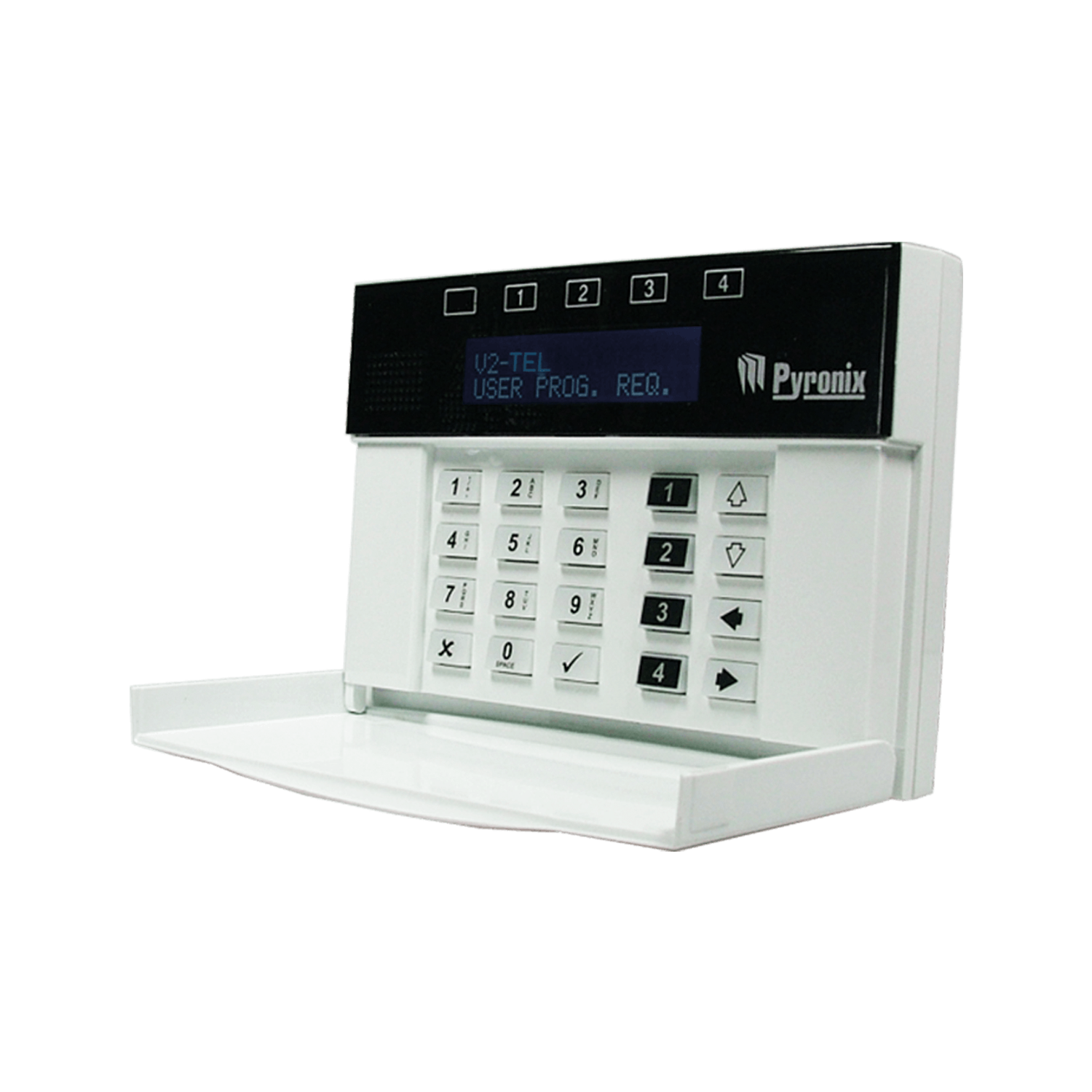

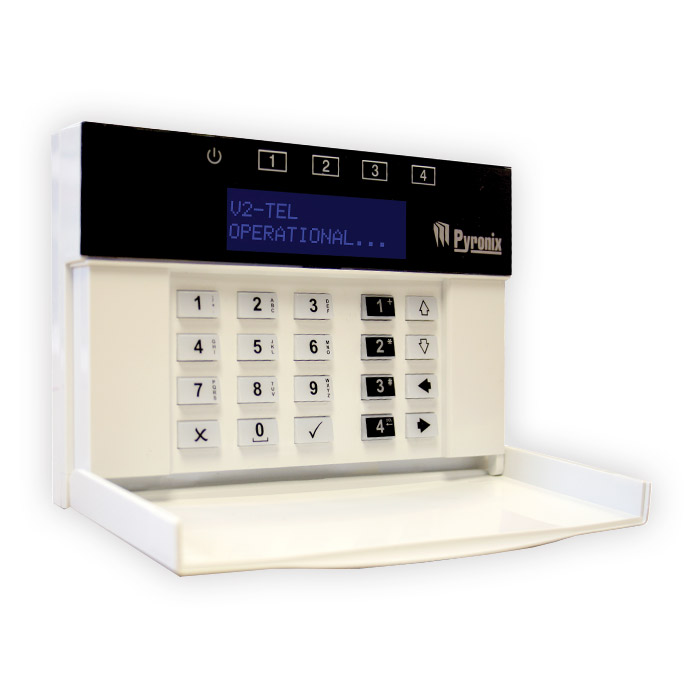

The V2 Tel Speech Dialler is a communication device designed to provide alert notifications. It can be connected to security systems or sensors and, when triggered, automatically dials pre-programmed phone numbers to deliver voice messages, alerting users of potential security issues or events.
The V2 TEL Speech Dialler can send out alarm voice messages after an activation to an input, all of which are programmable. The diallers may also be used as a normal telephone if required.
Boasting 6 inputs and 4 controllable outputs, it’s the ideal solution for customers who would like total control and monitoring of their home or workplace, from anywhere in the world.
Inputs can be programmed to activate following an input state or voltage change.
Outputs can be used to control external devices such as vending machines, engines, emergency equipment, home alarms, gates, lighting etc. The outputs can be controlled by the keypad (V2GSM,V2TEL only), SMS CLIP (V2GSM only) or DTMF commands.
10 second voice messages may be recorded for each alarm input. A common message of 20 seconds may also be recorded. This message will be sent together with each alarm input voice message after activation following an input alarm.
Access the voice menu to listen in, speak in, control outputs, check the status of equipment, etc.
This function can save the user costs on regular test calls as they will only be sent if the V2 has not made a call in a pre-programmed time frame.
The memory log will hold the following number of events (256).
Has the ability to dial up to four telephone numbers upon an alarm activation – including mobile numbers which enables you, a relative or neighbour to be informed immediately of an intrusion so that the appropriate action may be taken (9).
An easy to use listen in option allows you to silently monitor your property wherever you may be. An added two-way speech feature also enables you to speak into the property through discreetly placed speakers (half duplex).
The keypad of the V2 TEL Speech Dialler can be used as an outward calling phone.
Listen in & speak in - Duplex |
Half duplex |
Intergrated microphone and speaker |
Yes |
Intergrated keypad |
Yes |
Automatic phone number recognition (CLIP) |
No |
Can be used as a telephone |
Yes |
Date and time stamp |
No |
Event log |
30 |
Alarm voice messages |
6 |
Alarm and restore SMS messages |
None |
Jamming detection |
No |
Automatic forwarding of service provider SMS messages |
No |
Microphone and speaker |
Yes |
Onboard wired inputs |
6 |
Outputs on board |
4 |
Modem type (included) |
PSTN |
Remote control via a telephone |
Yes |
Telephone numbers |
9 |
Remote speaker and microphone |
Yes |
Nominal operating temperature |
-20 to +40'C |
Physical dimensions (H x W x D) |
147 x 100 x 28mm |
Operating voltage |
10-14.9V DC |
Quiescent current consumption |
200mA |
Electrical conformity |
CE |
Warranty |
2 years |
