XDH10TT-AM

Description

Key Features
  • Tri-Signal Detection Logic
  • Anti-Sway Analytics
  • Tri-Anti-Masking Technology
  • Digital Temperature Compensation
  • 3 Microwave frequency bands
  • Built-in walk test buzzer
  • Weatherproof sealed optics
  • Heavy duty ultraviolet filter
  • 10m volumetric coverage
  • Optional heavy duty wall bracket

Product Features

High-security, high-mount external detection

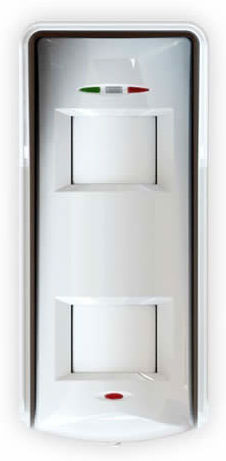

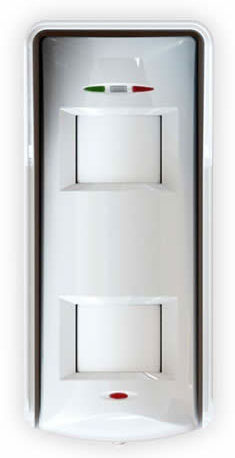

The XDH10TTAM is a high security outdoor detector, combining established and patented technologies such as Tri-Digital Detection Signal Processing and Tri-Anti-Mask Technology which have been adapted to enhance performance in extreme outdoor conditions.

10m Volumetric coverage

10m Volumetric coverage in both lenses – ideal for hostile environments.

Tri Detection range

The range of XD is determined by the combined range of the three detection technologies it uses – two PIR sensors and one microwave detector. For best performance in outdoor conditions the Tri Detection range is specified between 10m to 13m depending on the lens fitted to the PIR detectors.

2.4m Installation Mode (Lens 5, 10m range): In this mode the detector is installed at height of 2.4m providing volumetric coverage of the area and animal immunity of up to 10kg. This is the factory default configuration where the detector is fitted with Lens 5.

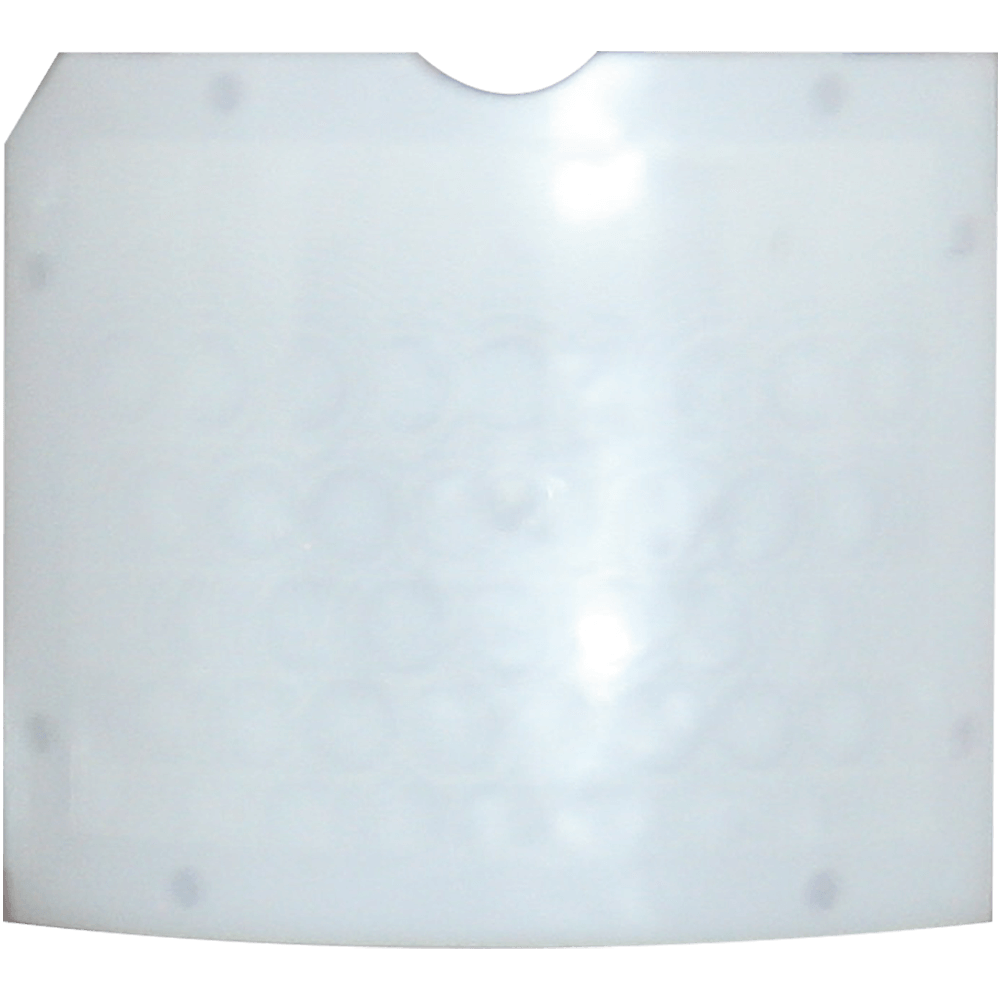

1.5m Installation Mode (Lens 3, 13m range): In this mode the detector is installed at an height of 1.5m providing horizontal curtain coverage of the area and animal immunity of up to 25kg. This is an alternative configuration where the detector is fitted with the supplied Lens 3.

Tri Signal Detection Logic

The detection of human presence is based on the advanced analysis of the activation sequence of the microwave movement sensor and the two independent digital PIR sensors. All three sensors are required to activate at the same time in a particular time window to create an alarm state. Using tri-signal detection logic enhances the detector’s immunity to environmental disturbances.

Anti-Sway Analytics

An advanced filter that is designed to protect against false alarm activations in environments with windy weather conditions and swaying vegetation.

Tri-Anti-Masking Technology

Pyronix patented anti-masking technology provides masking protection for both PIR and the microwave detectors. A protective anti-mask bubble is created in front of the detector and is adjustable from 0 to 1m. If the protective bubble is breached and any of the detector technologies masked with substances like paper, sprays, lacquers, sellotape, cardboard boxes etc. the XD will go into an anti-mask condition activating a dedicated anti-mask relay.

Digital Temperature Compensation

The XD detector will digitally adjust itself to maintain detection range in hot and humid environments where the ambient temperature becomes similar to the external body temperature (equivalent to 32C).

Heavy duty ultraviolet filter

Ultraviolet light is always present in our environment and is particularly strong at high altitude and sea side. The exposure to such high radiation reduces performance and can fully blind PIR lenses. To counter this, XD lenses are coated with a heavy duty ultraviolet filter and manufactured to the highest standards.

Microwave frequencies bands

The XD is supplied with three different frequency bands. Each of them is indicated with a different colour label. This feature allows the installation of multiple detectors in close proximity without the danger of frequency interference.

Built-in walk test buzzer

To enable the installer to perform an easy and quick walk test during installation as well as audible indication of a presence in the detection area, the XD features a built-in buzzer. This creates a buzzing noise to indicate an alarm activation during installation testing (may be disabled if required).

Weatherproof sealed optics

The lens collet is designed to firmly hold the lens in place and create a stable environmental chamber between it and the PIR sensor. A rubber gasket on the lens and a foam gasket on the PIR sensor are used as a further sealant against all weather conditions and humidity. In addition, the sealed PIR sensor chamber protects the PIR sensors from possible insect infestation and internal air movement.

Optional heavy duty bracket

The optional heavy duty tamper proof bracket also includes a cable through feature for easy installation and added security as the wires are hidden away within the bracket. It moves 45 degrees left and right allowing a total area coverage of up to 90 degrees when two detectors are installed next to each other. If wires cannot be hidden in the bracket for any reason, it is also possible to install a conduit to protect the cabling.

Detectors technical characteristics

Automatic sensitivity

Yes

Digital temperature compensation

Yes

DEOL resistor on board

Yes

Tamper protection

Front and rear

Intergrated walk test buzzer

Yes

Separate LED indication

Microwave, infrared and alarm

3 microwave frequencies to avoid interference

Yes

Digital independent floating threshold (IFT) technology

Yes

Anti-sway analytics

Yes

Adjustable sensitivity

Auto or high

Detectors technical characteristics

Maximum range

10m (13m with curtain lens)

Volumetric coverage

Yes

Curtain coverage

Optional

Animal immunity

10kg

Tri technology

2 infrared and 1 microwave

Detection speed

0.25 - 2.5m/s

Coverage angle

90 degree (142 degree with curtain lens)

Detection zones

78 (24 with curtain lens)

Detection planes

5 (1 with curtain lens)

Adjustable antimasking (antispray)

Yes

Protection

Ultraviolet light filter

Lens

2 x Lens 5 volumetric lens (UV Compensated)

Optics

Sealed optics

Detection method

2 low noise dual element passive infrared sensors and a microwave doppler unit

Mounting

Wall mounted

Yes - additional wall and fixed brackets available separately

Optimum coverage height

2.4m

Certified mounting height

2.4m

Environmental and operating features

Storage temperature

-40°C to 80°C

Nominal operating temperature

-25°C to 60°C

Physical dimensions (H x W x D)

188 x 84 x 77mm

Weight

300g

Electrical & battery

Operating voltage

9-16VDC, 13.8VDC typically

Quiescent current consumption

24mA @ 13.8VDC

Relay outputs

3 x SELV limits, 60VDC 50mA (42.4VAC peak)

Tamper switch

12VDC 50mA both front and rear

Certifications and warranty

Environmental class

IV

Certification type

Self certified

Electrical conformity

CE

Warranty

5 years

EN Certificate

PD6662:2017

Product Codes & Options

XDH10TTAM - 9.9GHz
FPXD10TTAM1
XDH10TTAM - 10.587GHz
FPXD10TTAM3
