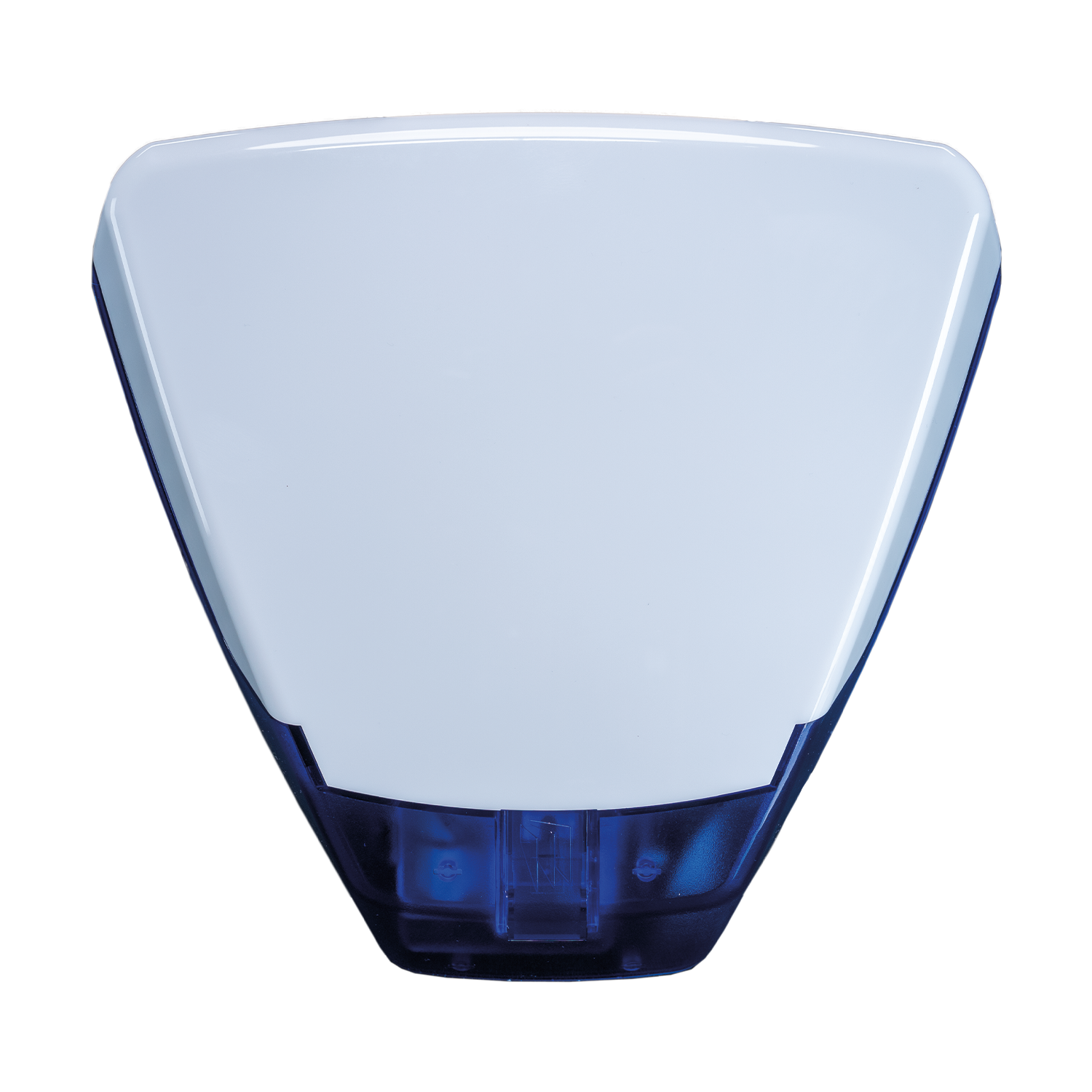

Deltabell E

Description

The Deltabell E, a standard warning device for wired installations, serves a dual purpose by delivering both audible and visual deterrence. In the event of an alarm, this device effectively notifies nearby individuals through its low-power, high-performance piezo and a flashing strobe, ensuring that both auditory and visual warnings are provided simultaneously.

Key Features
  • Audible and visual deterrent
  • Lid, base, and power tamper protected
  • Various colour combinations available

Product Features

Fully tamper protected

With lid, base, and power tamper protection, any attempts to disable the bell will trigger an alert.

Weatherproof

Polycarbonate plastics offer a weather resistant housing with an elegant design.

Levelling mechanism

The unique levelling mechanism incorporates a built-in spirit level and four rotating dogs to assist in ensuring the bell is perfectly level during installation.

Universal triggering inputs

The grade 2 model is compatible with any output on any manufacturer’s control panel, whether it’s positive applied, negative applied, positive removed, negative removed.

Battery backup

Complete with a backup battery so that even in the event of an intruder sabotage, the bell will still operate and protect the property.

Cut-off timer

To comply with industry noise pollution regulations, the bell will automatically cease ringing after 15 minutes, even if the alarm panel remains activated. After 15 minutes, the strobe will continue to flash until the system resets.

Remote engineer hold off

If wired to an output on the panel, it is possible to disable the bell tamper when the control panel is in the engineers menu.

Engineer hold off facility

When first powered with the tamper switch open, the sounder will not activate. Once the tamper switch has been closed, the lid and back tamper become operational.

Sounders technical characteristics

Loudness

104 dB(A)

Optional comfort LED

Yes

Sound and light indication on alarm

Yes

Engineer hold off

Yes

Number of Piezos

1

Flashing LED

Yes

Comfort LED

Yes

Back-lit

No

Tamper protection

Yes

Strobe duration and frequency

10mS, 1Hz

Sounder maximum duration

15 mins

SAC (self actuating bell) / SAB (self activating bell) option

Yes

Self levelling

Yes

Environmental and operating features

Certified operating temperature

-25C to 60C

Nominal operating temperature

-30C to 60C

Physical dimensions (H x W x D)

290 x 285 x 50mm

Electrical & battery

Battery type

NiMH 7.2V, 250mAh

Battery life

2 - 5 years

Operating voltage

9-16V

Alarm current

<250mA

Quiescent current consumption

<30mA

Certifications and warranty

Security Grade

Grade 2 and 3

Environmental class

IV

EN Certificate

EN50131-4:2009

Certification type

Self-certified

Electrical conformity

CE

Warranty

2 Years

Product Codes & Options

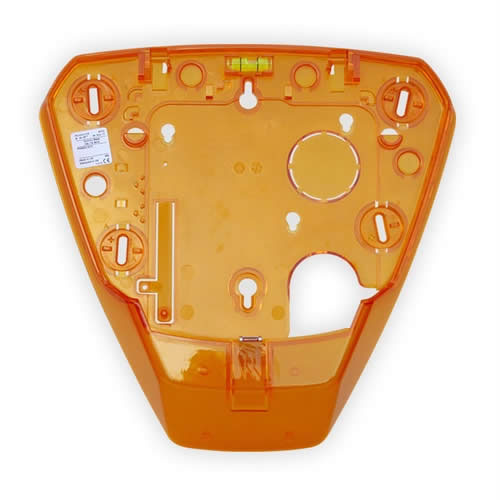

Deltabell Amber Dummy Base
DELTA-BDA
SAP:361301906
Deltabell Red Dummy Base
DELTA-BDR
SAP:361301903

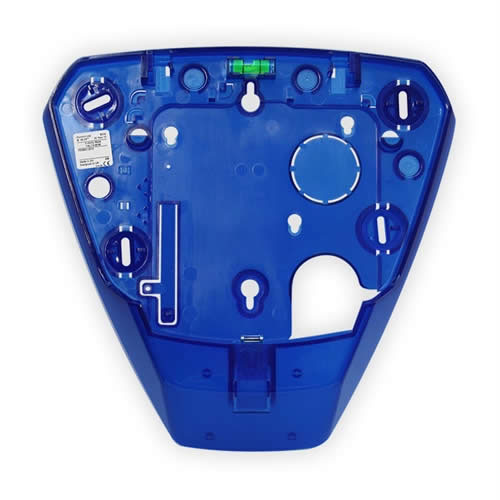

Deltabell Blue Dummy Base
DELTA-BDB
SAP:361301902

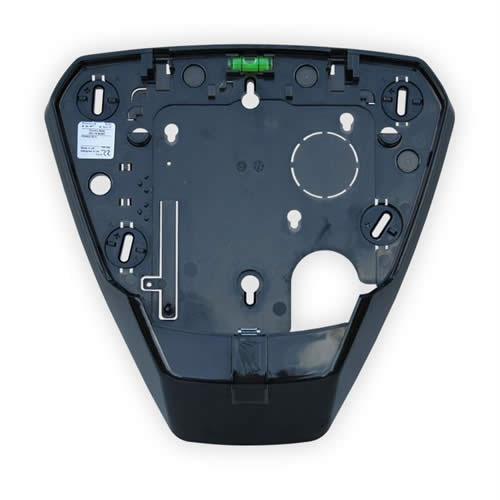

Deltabell Black Dummy Base
DELTA-BDBK
SAP:361301907

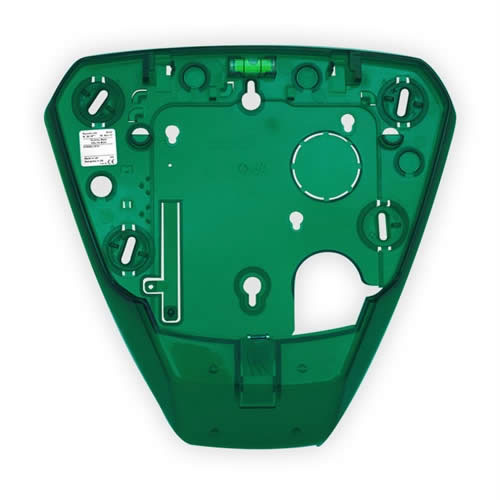

Deltabell Green Dummy Base
DELTA-BDG
SAP:361301904

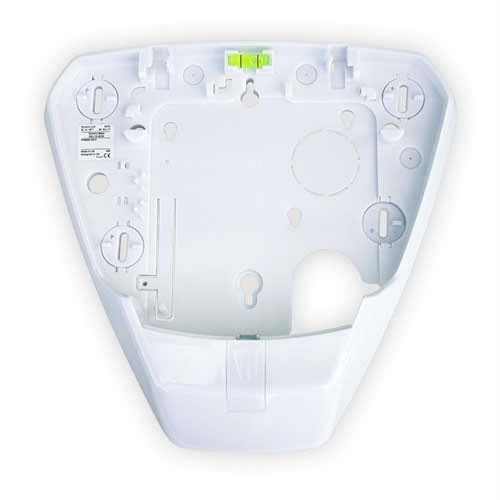

Deltabell White Dummy Base
DELTA-BDW
SAP:361301905

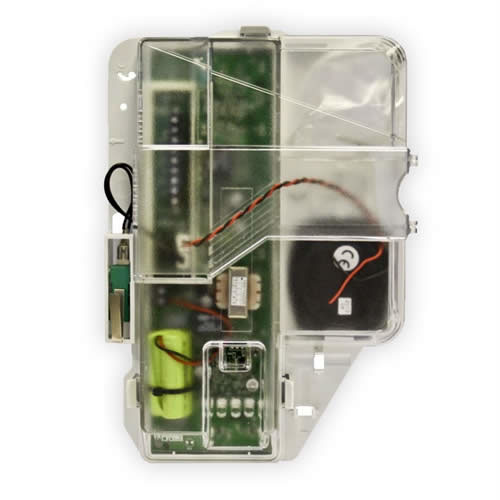

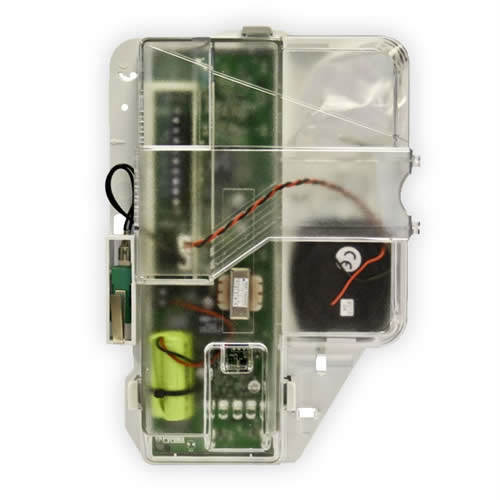

Deltabell E Module - Grade 2
FPDELTAE2MOD
Deltabell E Module - Grade 3
FPDELTAE3MOD
Black Deltabell Cover
FPDELTA-CBK

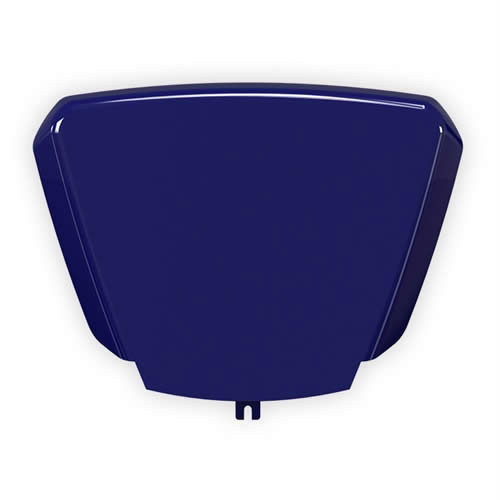

Blue Deltabell Cover
FPDELTA-CB

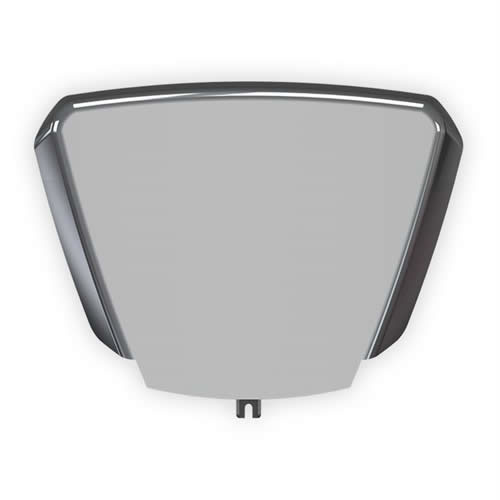

Chrome Deltabell Cover
FPDELTA-CC

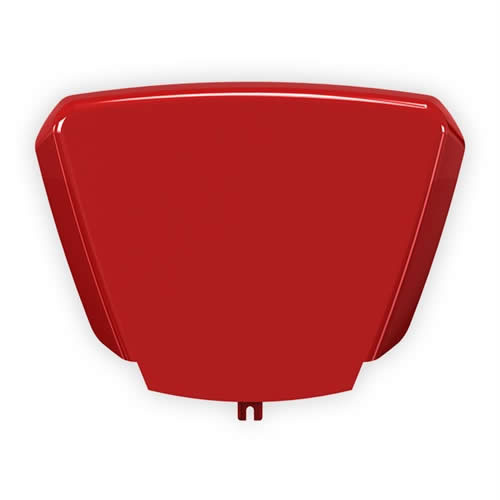

Red Deltabell Cover
FPDELTA-CR

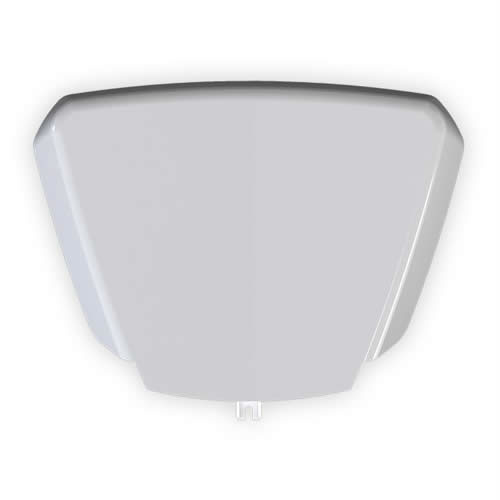

White Deltabell Cover
FPDELTA-CW

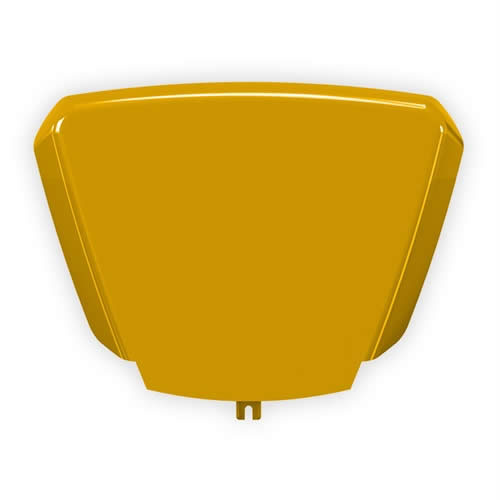

Yellow Deltabell Cover
FPDELTA-CY
