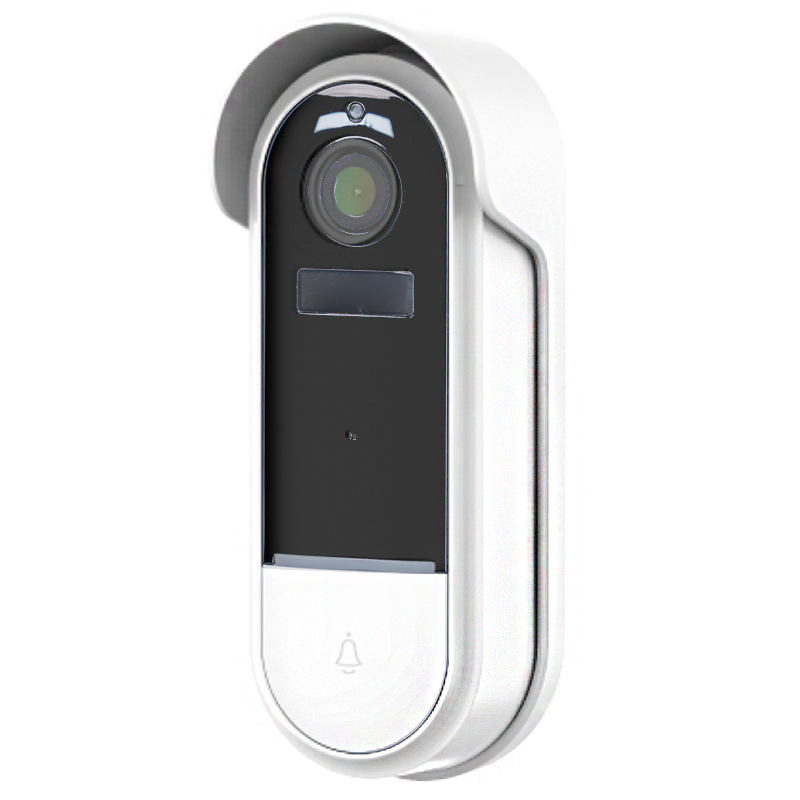

DoorbellCam2

Description

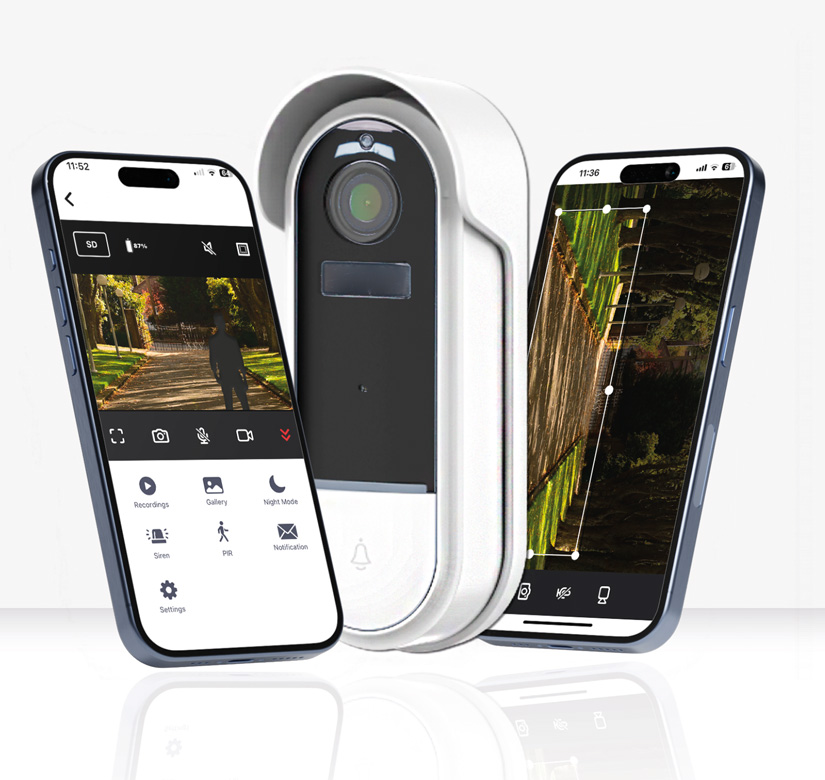

The DoorbellCam2 features a 3MP camera, delivering clearer QHD video for improved visibility. It retains two-way audio for live conversation with visitors, motion detection, and night vision. New enhancements include an onboard siren that can be manually activated, adding an extra security layer. Additionally, users can now configure a customisable detection zone, allowing for tailored motion alerts within a specific area. Integrated with the Pyronix HomeControl2.0 app, this upgraded DoorbellCam offers robust remote monitoring and control, making it an ideal choice for comprehensive home security.

Key Features

Adjustable detection area
Onboard siren
QHD Video

Features
Technical Specification
Codes & Options

Features

Product Features

Motion alerts

Motion alerts notify users immediately when activity is detected near their door, even before the doorbell is pressed. This allows homeowners to monitor potential intruders or suspicious behaviour in real-time, providing a proactive layer of security.

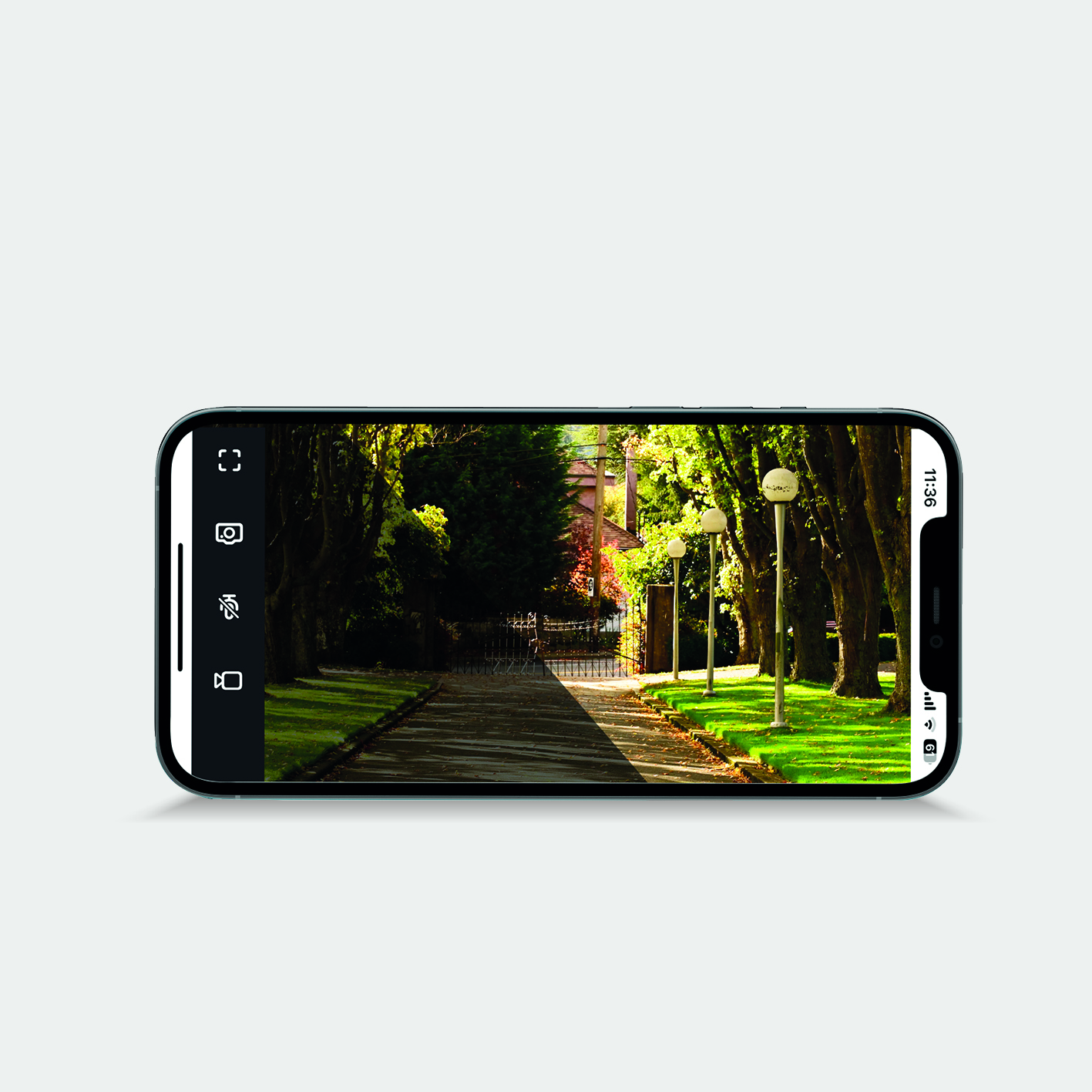

QHD video

This extra clarity allows users to discern finer details, such as faces, license/ number plates, or smaller objects in the frame, enhancing the effectiveness of a video doorbell for security purposes.

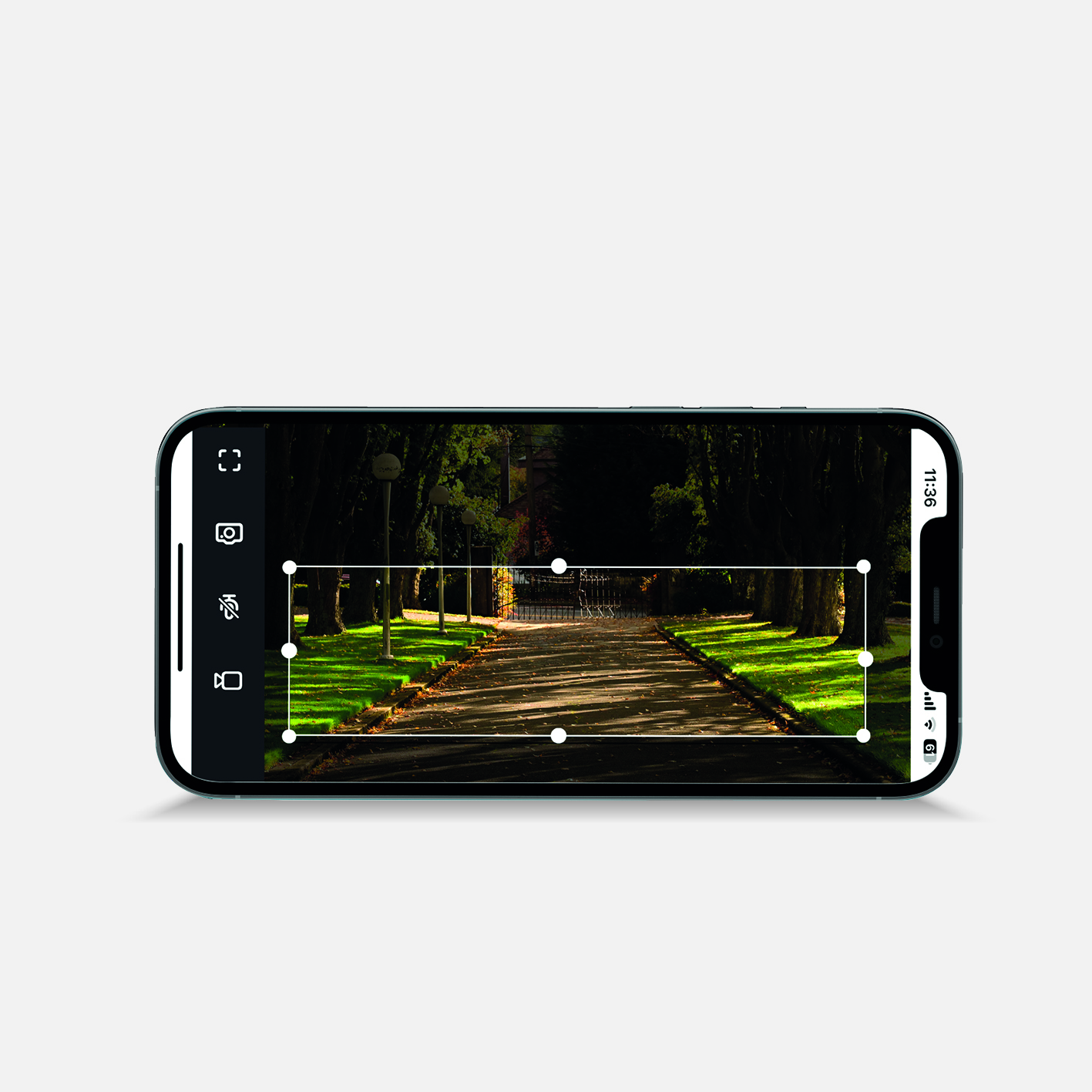

Adjustable detection area

By customising motion detection zones, users can focus the monitoring on specific areas and exclude irrelevant zones.

Onboard siren

An onboard siren can scare off potential burglars or trespassers the moment suspicious activity is detected. This proactive security feature discourages criminal behaviour before it escalates, protecting the property without requiring user intervention.

USB-C connection

USB-C supports higher power delivery, enabling quicker recharging of a doorbell’s battery compared to older USB standards. This reduces downtime,
ensuring the device is operational sooner and more efficiently.

Technical Specification

Camera technical characteristics

CAMERA
Image Sensor	1/2.8'' 3Megapixel CMOS
Effective Pixels	2304(H) × 1296(V)
Shutter	1/15~1/10,000s
Min. Illumination	"Color 0.1Lux@F2.0, Black/White 0.01Lux@F2.0"
IR Distance	Night visibility up to 10m
Day/Night	Auto(ICR)/Colour/B&W
WDR	DWDR
Lens&FOV(H/V/D)	3.2mm@F2.0, 110°/ 59°/135°

Network parameters

NETWORK
Alarm Trigger	Button triggering, PIR detection
Wireless Security	64/128-bit WPA/WPA2, WPA-PSK/ WPA2-PSK, WPS
Communication Protocol	HTTP, DHCP, DNS, TCP/IP
Interface Protocol	Private
Wireless	2.4G WIFI (IEEE802.11b/g/n)
Mobile Phone OS	iOS 9 or later, Android 5 or later
Security	AES128
Max. User Access	4

Other technical specifications

VIDEO & AUDIO
Compression	H.264
Bit Rate	32Kbps~2Mbps
Frame Rate	1~15fps
Dual Stream	Yes
Audio Input/Output	Built-in mic/speaker
GENERAL
Operating Temperature	-20°C to 50°C
IP Rating	IP65
Power Supply	DC 5V/1A, AC 12~24V
Power Consumption	Max. 2W
