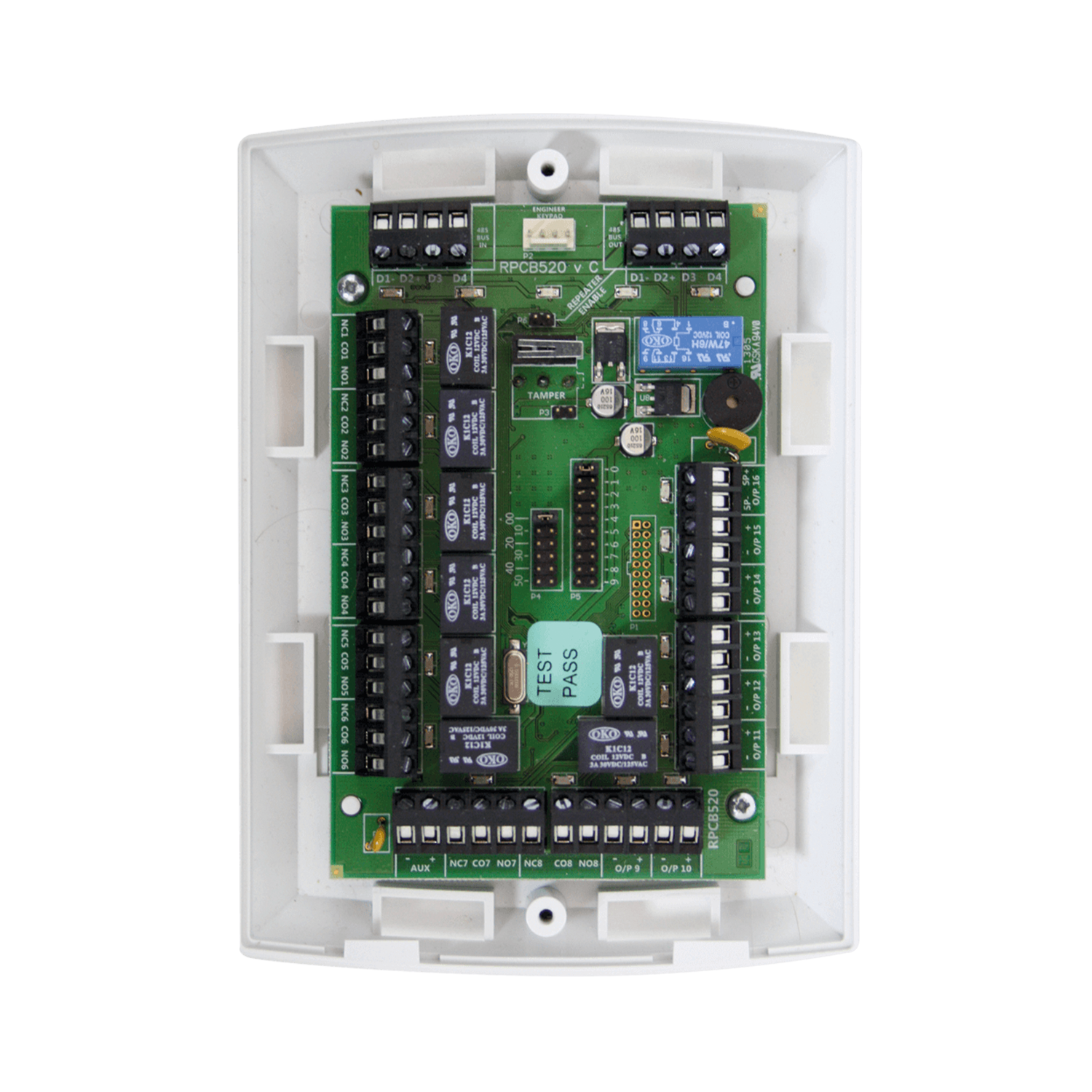

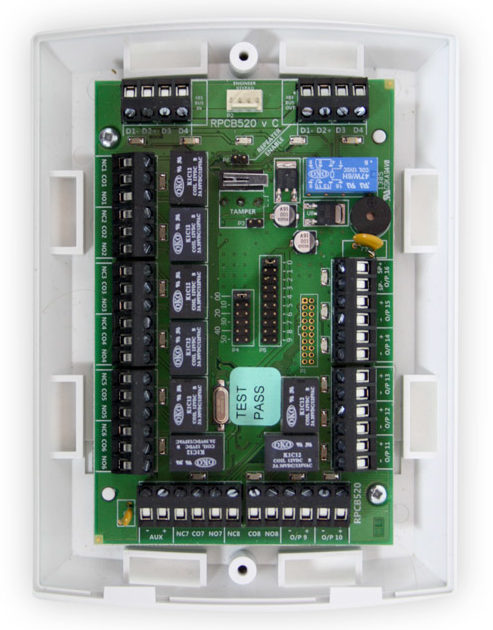

This 16 output expander has 8 relay and 8 transistorised outputs, allowing flexible output expansion of Pyronix security control panels.
The 8R 8T is an output expansion module that allows you to add an extra 16 outputs to your system. These comprise of 8 relay outputs (NO or NC) and 8 transistorised outputs.
There are status LED indications for each output and you can connect an engineer keypad.
Capable of being plugged onto Intelligent PSU, the 8R 8T is wired directly to the RS-485 BUS and has an adjustable rear tamper.
Plastic housing |
Yes |
Tamper protection |
Front and rear |
Relay outputs |
8 |
Transistorised Outputs |
8 |
Storage temperature |
-40C to +80C |
Certified operating temperature |
-10C to +50C |
Nominal operating temperature |
-10C to +50C |
Physical dimensions (H x W x D) |
173 x 125 x 32mm |
Operating voltage |
9-15V |
Security Grade |
Grade 3 |
Environmental class |
II |
EN Certificate |
EN50131-1 | PD6662:2004 |
Certification type |
EURO-OEM8R8T; Self-certified | PCX-ROX 8R 8T; IMQ |
Certificate number |
PCX-ROX 8R 8T - CA12.01435 |
Electrical conformity |
CE |
Warranty |
2 years |
