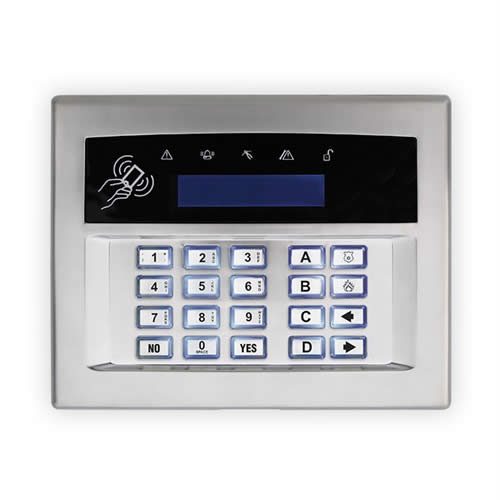

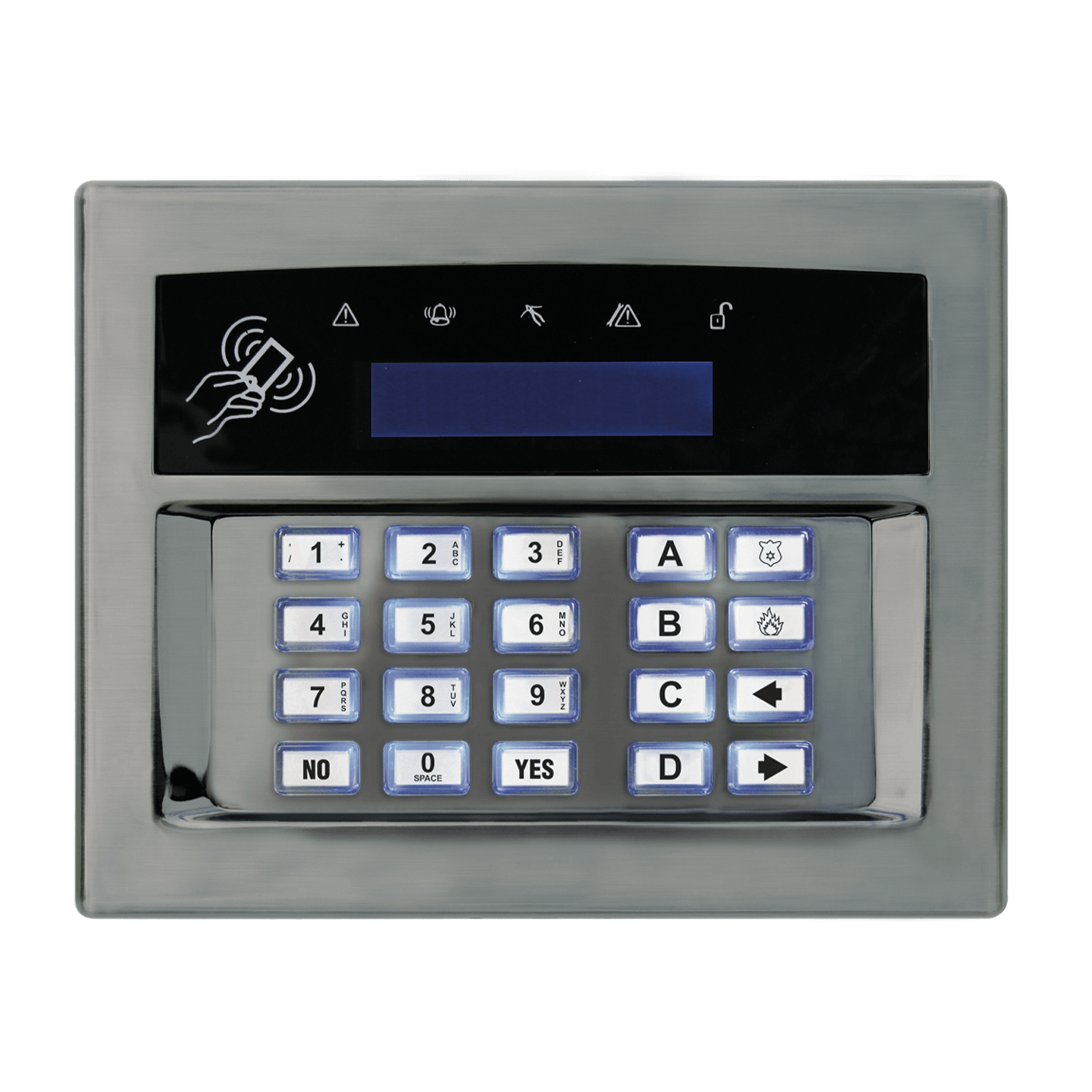

EURO Surface and Flush Mount Keypads

Description

Our Surface and Flush Mount Keypads provide sleek styling options with interchangeable casings for unlimited customisation. The unpainted casing allows personalised colouring, and a flush mount back box option provides a tailored finish. Compatible with EURO and Enforcer ranges, the keypads feature LCD backlighting, illuminated keys, and proximity capability.

Key Features

Stylish keypad design
Surface mount option for quick and simple installation
Compatible with the EURO and Enforcer Range

Features
Certification
Technical Specification
Codes & Options
Downloads
Videos

Features

Product Features

Sleek styling options

The new sleek and stylish Flush and Surface Mount Keypads feature interchangeable casings that offer unlimited styling options.

Compatibility

The Surface and Flush Mount Keypad maximises flexibility on the EURO and Enforcer ranges by offering a modern and stylish additional setting device.

Features

The keypad has two inputs and one output and also contains proximity capability to set/unset your control panel.

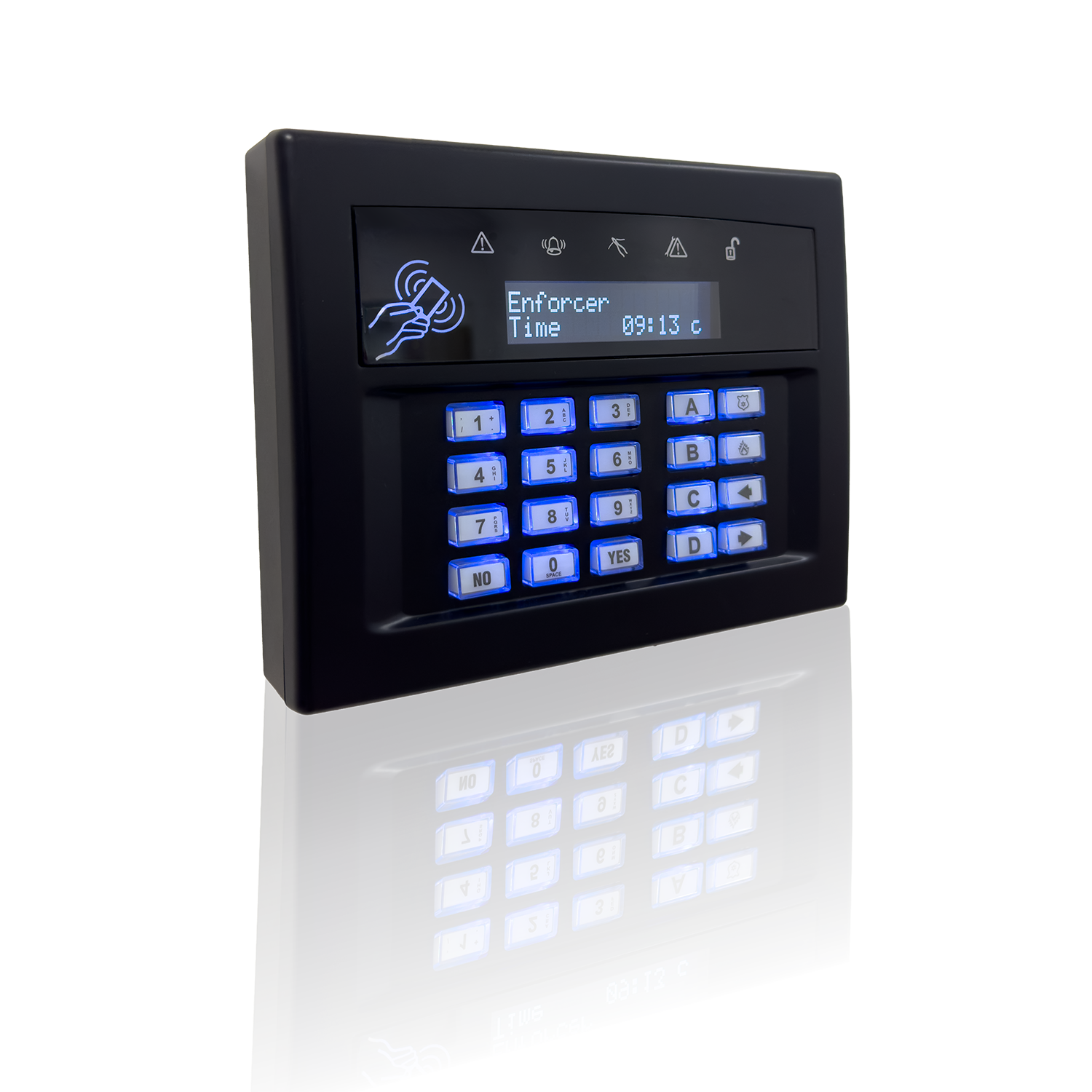

Illuminated keypad

With its LCD backlighting and illuminated keys, the keypad is made easily visible in any environment.

Custom branding

Installation has never been easier either, as the unbranded window comes unattached from the keypad, allowing you to choose whether to put this in place or contact us for unique branding options.

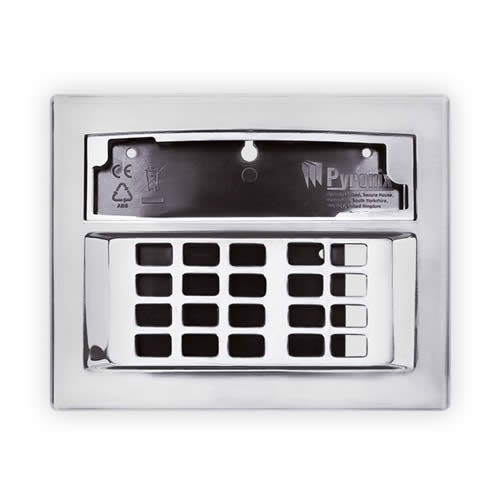

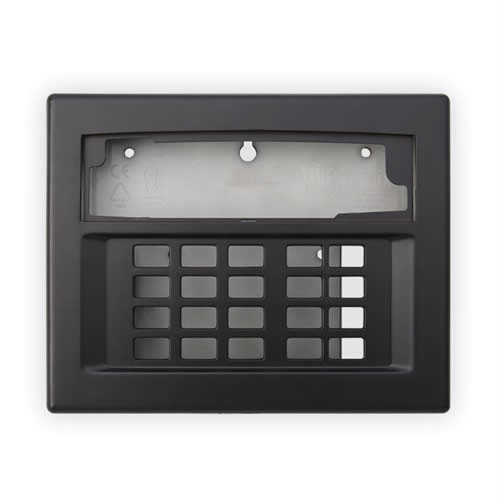

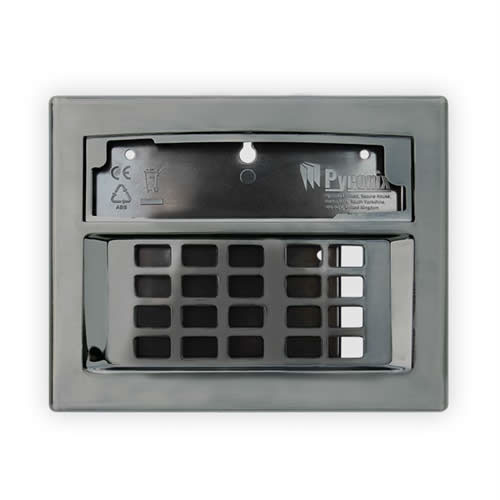

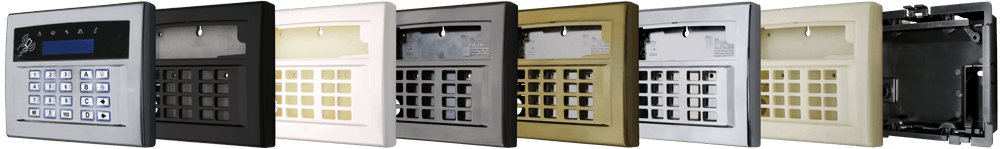

Additional casings

Interchangeable casings provide unlimited styling options and upsell advantages. Whether the end user has redecorated or just fancies a change, the new casing options will deliver upsell opportunities for you and the desired look for them. Altering the look of a new or existing keypad has never been quicker, easier or more economical.

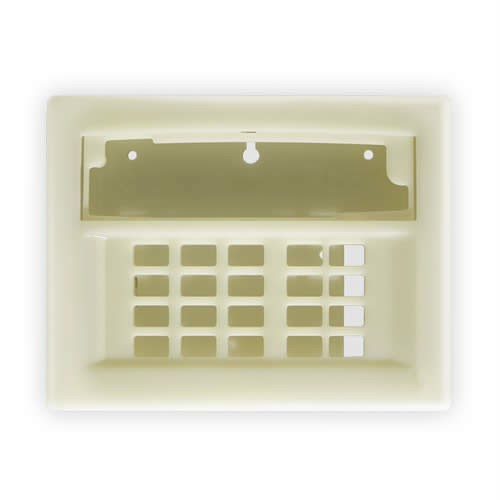

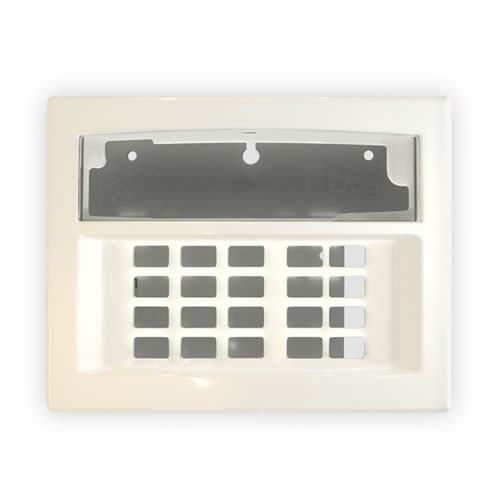

Unlimited options with the unpainted casing

Opt for Unpainted (LCD-CASING/BLANK) and choose to paint the keypad with any colour or design that you or your customer desires.

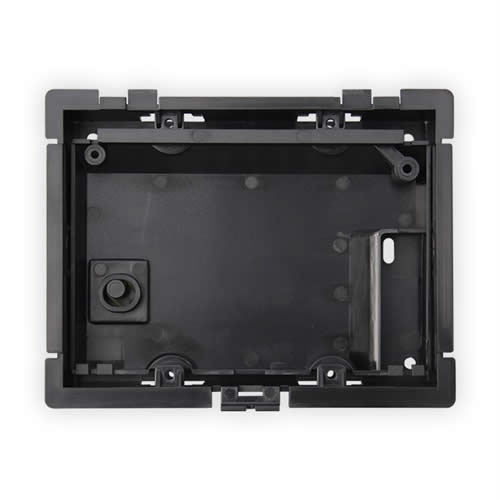

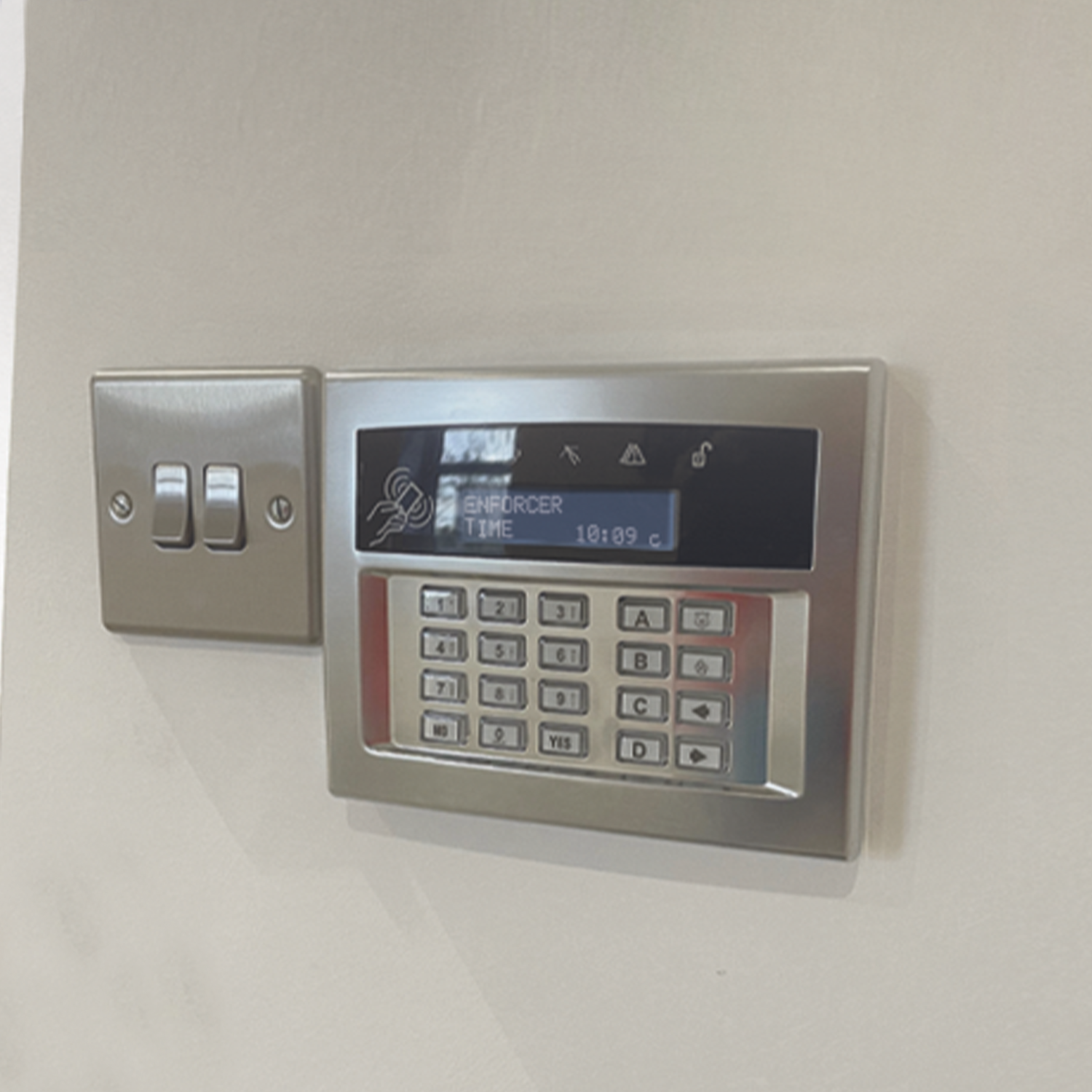

Flush mount back box

Want a flush rather than surface mount fitting? Simply purchase a flush mount back box to deliver the finish required.

Certification

SG3 ECII EN50131-3:2009 EN50131-1:2006+A1:2009 PD 6662: 2010 + IA: 2015

EURO Flush Mount Keypad - Declaration of Conformity

EURO Flush Mount Keypad - IMQ Certificate - CA12.01423

Technical Specification

Setting devices technical characteristics

LCD keypad with icon display	Yes
Integrated prox reader	Yes
System status display	Yes
Entry and exit tones	Yes
Backlit Keys	Yes
Tamper protection	Front and rear

Mounting

Wall mounted	Yes
Flushmount	Yes - with flush mount back box
- Back box aperture required (W x H x D)	Approximately 145 x 109 x 27mm (plus clearance)

Environmental and operating features

Storage temperature	-10C to +40C
Certified operating temperature	-10C to +40C
Nominal operating temperature	-10C to +40C
Physical dimensions (H x W x D)	126 x 160 x 30mm

Electrical & battery

Operating voltage	9-15V DC
Quiescent current consumption	<50mA

Resistance (wired inputs)

Normal	1k4 to 2k9
Intruder	4k2 to 7k8
Tamper	<1k4 or >22k
Fault	8k to 11k3
Masking	(6k8): 11k6 to 22k

Certifications and warranty

Security Grade	Grade 3
Environmental class	II
EN Certificate	SG3 ECII EN50131-3:2009 EN50131-1:2006+A1:2009 PD 6662: 2010 + IA: 2015
Electrical conformity	CE
Warranty	2 years
