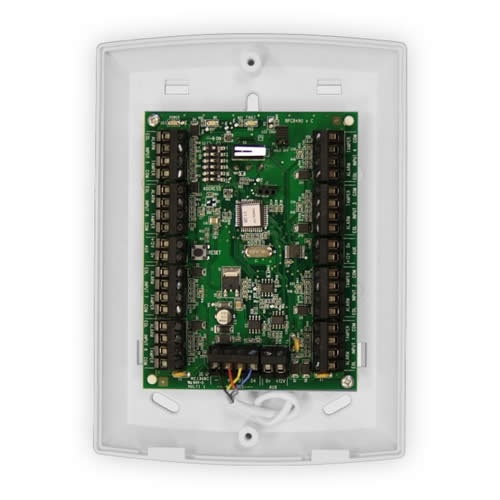

EURO ZEM8
Description
The ZEM8 allows 8 zone expansion of Pyronix security control panels.
Key Features
- RS485 Expander
- 8 Double Pole or Double EoL Inputs
- In polycarbonate box with window
Hover over images to zoom
Product Features
Expand your systems potential
Expand your security system with the 8 input expander. With a further 8 wired devices to both existing or new EURO control panels, you can seamlessly adapt your security system to suit your needs.
Robust polycarbonate end station
The lightweight and strong polycarbonate casing has tamper protection for that extra peace of mind that you are protected.
Wiring options
The EURO-ZEM8 DEOL / Double Pole expander will accept either Double Pole wiring or Double End-of Line wiring for each of the 8 inputs.
Resistor values
For Double Pole wiring you will need to set the control panel in 4K7/2K2 mode (4K7 resistor for alarm and 2K2 resistor for tamper).
PSU options
The ZEM8 is suitable for use with an Intelligent Power Supply.
Compact design
Lightweight, streamlined polycarbonate casing makes the EURO-ZEM8 input expansion module easy to fit alongside the existing system without taking up too much room.
Input and output expanders technical characteristics
Plastic housing |
Yes |
Tamper protection |
Case tamper |
Inputs & outputs
Wired EOL inputs |
8 |
Wired double pole inputs |
8 |
Total inputs |
8 |
Outputs on board |
4 |
Environmental and operating features
Certified operating temperature |
-10C to +40C |
Nominal operating temperature |
-10C to +40C |
Physical dimensions (H x W x D) |
173 x 126 x 31mm | PCB 112 x 64 x 17mm |
Weight |
260g |
Electrical & battery
Operating voltage |
10.5V to 15V DC |
Quiescent current consumption |
40mA |
Certifications and warranty
Security Grade |
Grade 3 |
Environmental class |
II |
EN Certificate |
EN50131-1:2006 | PD6662:2010 |
Certification type |
Self-certified |
Electrical conformity |
CE |
Warranty |
2 years |
Product Codes & Options
EURO-ZEM8 Output Expansion Module
EURO-ZEM8
