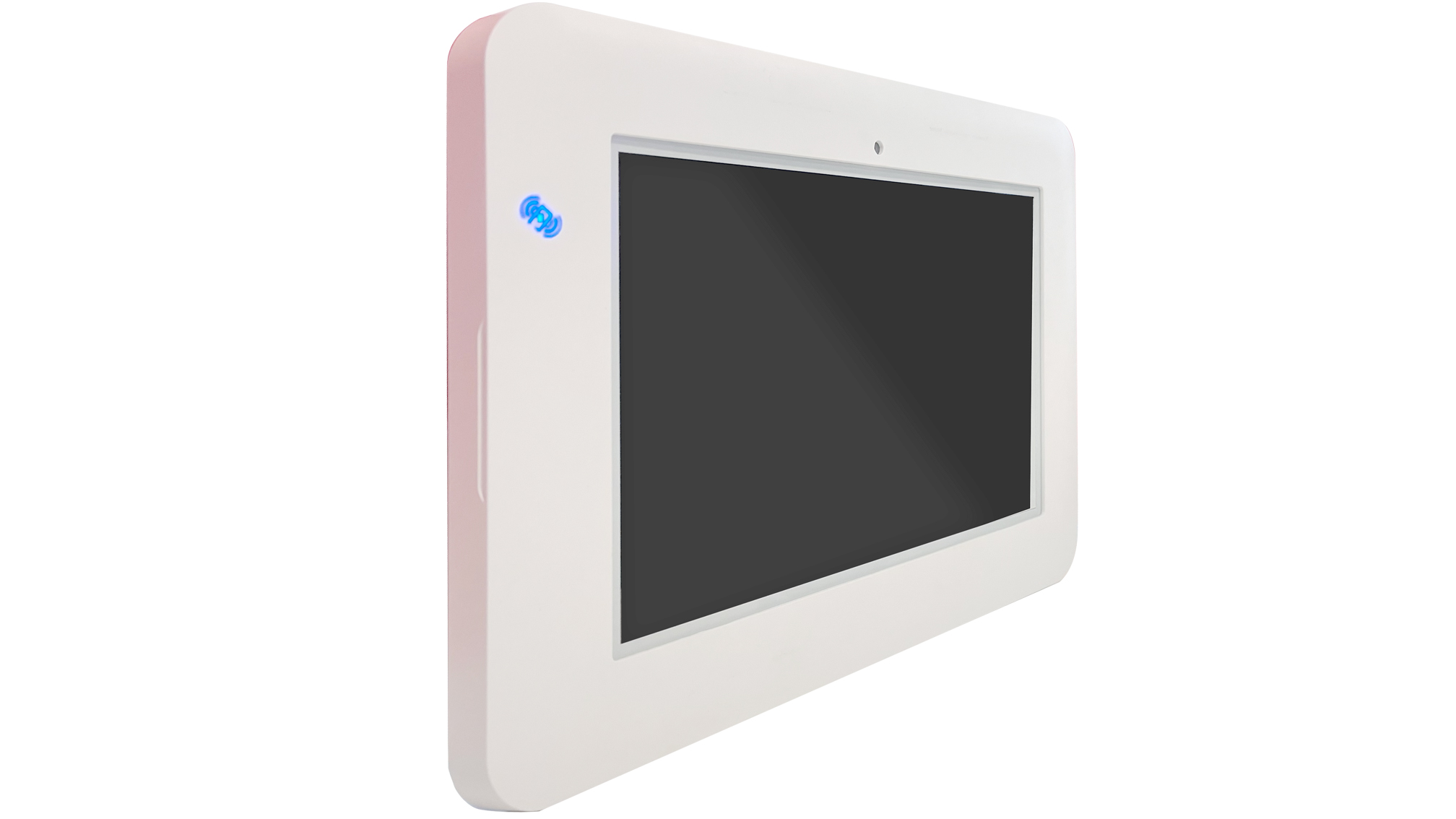

A home for your smart home. The TabletBracket wall-mounts an AndroidTablet for easy access, with a quick-release magnetic front for simple removal. Made from 2.5mm ABS plastic, it elegantly houses and charges the tablet. Adding the ProxReader enables tag-based arming and disarming, creating a powerful, complete-control, Grade 2 interface.
Providing a handy home for the AndroidTablet, the TabletBracket wall-mounts the tablet making it easy to find, whilst the quick-release magnetic front ensure simple and rapid access when it’s needed for use around the property. Made from 2.5mm ABS plastic, the bracket is an elegant frame for housing and charging the tablet.

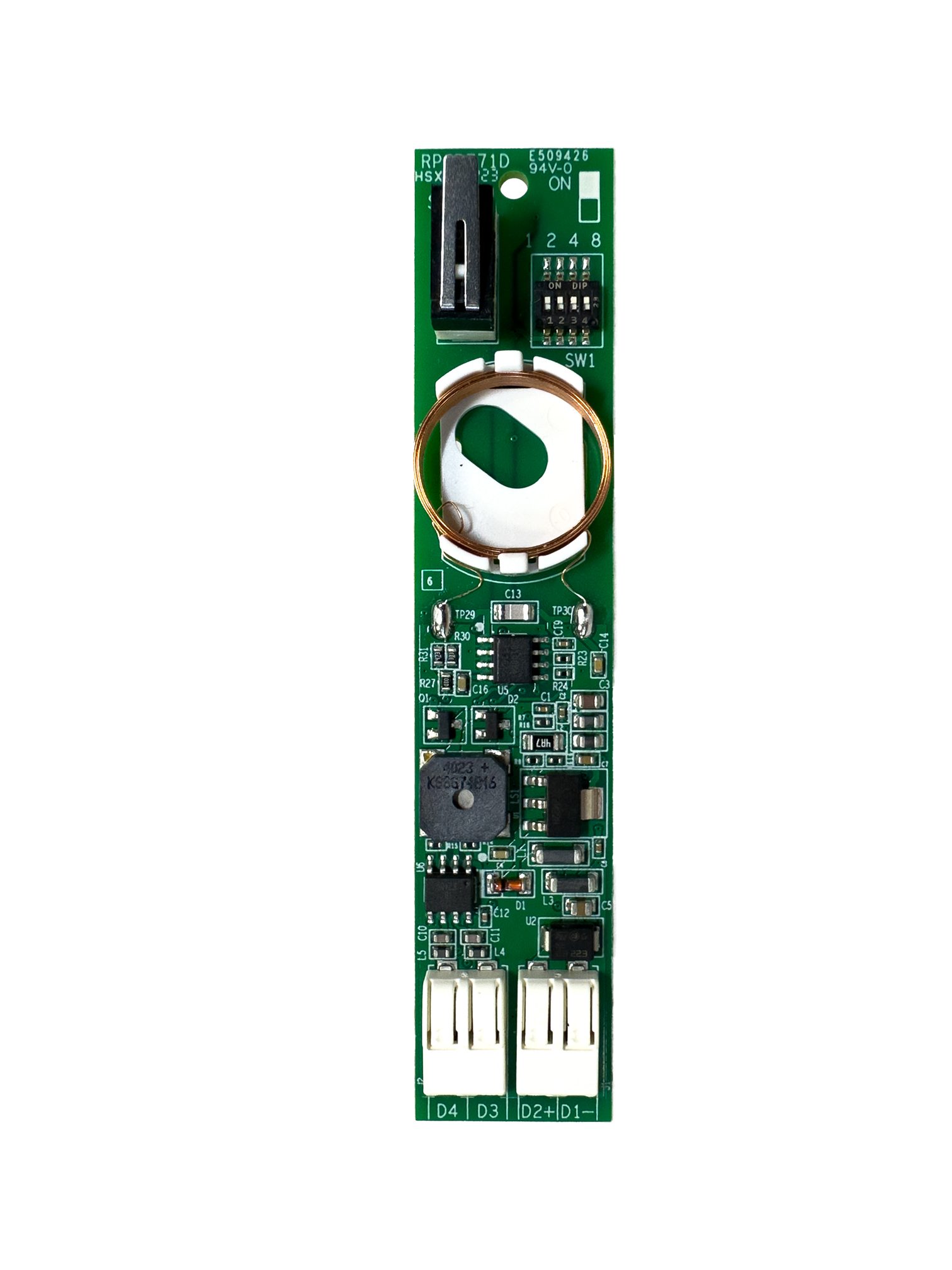

The optional addition of the ProxReader PCB to the TabletBracket introduces arming and disarming by tag, and confers Grade 2 security on the system, resulting in a powerful and convenient interface when combined with an AndroidTablet running HomeControl2.0.
Encompass the functionality and convenience of a keypad, tag reader and video verification into one wall-mounted hub. The AndroidTablet provides flexibility in arming/disarming methods, whether wall-mounted or mobile, and the optional ProxReader also enables Grade 2 compliance when installed.

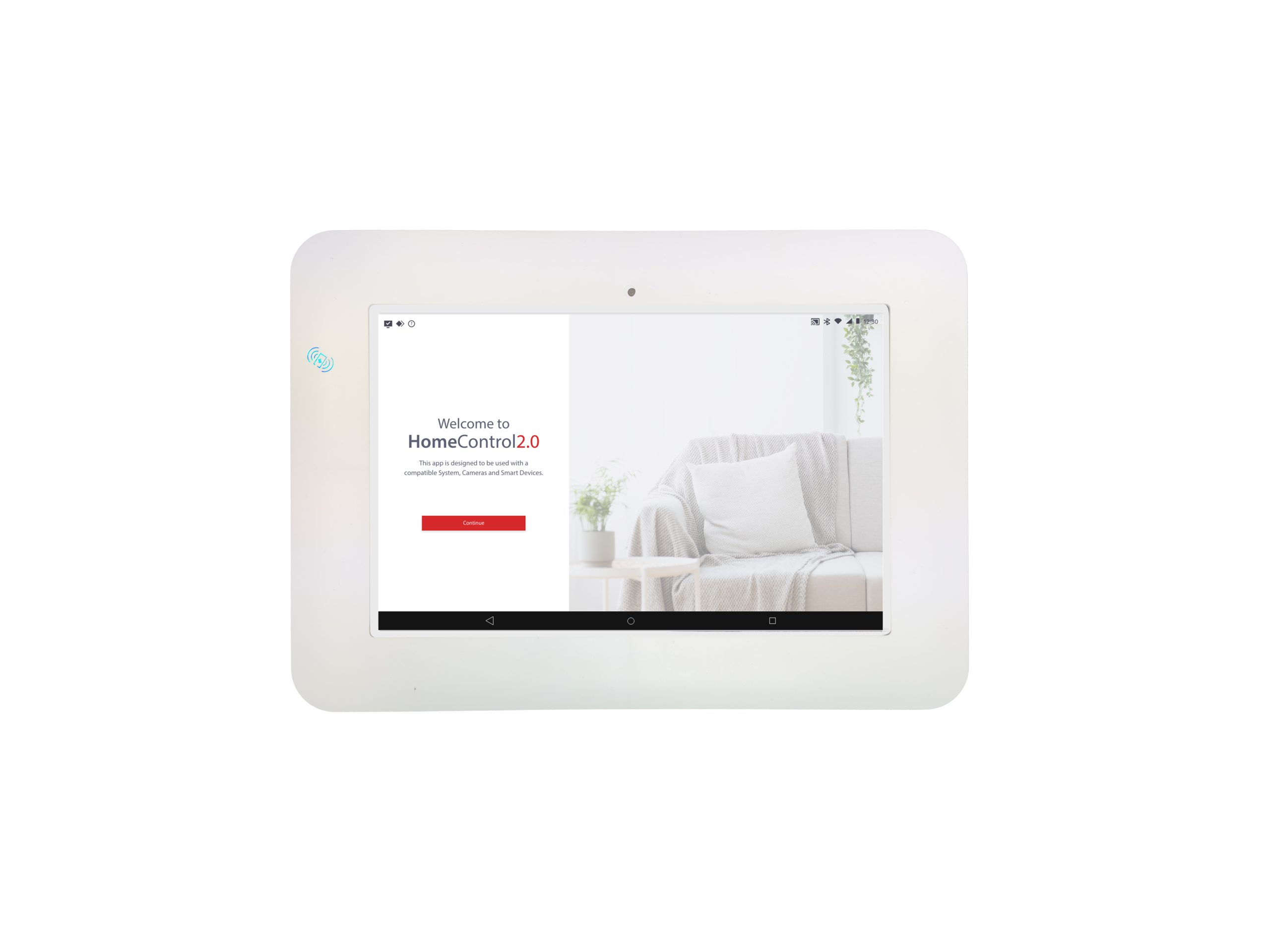

With HomeControl2.0 available on both mobile device and AndroidTablet, the design and functionality is mirrored making it easy to navigate and use. A familiar interface on both phone and tablet means there’s no need for users to learn to use multiple apps.

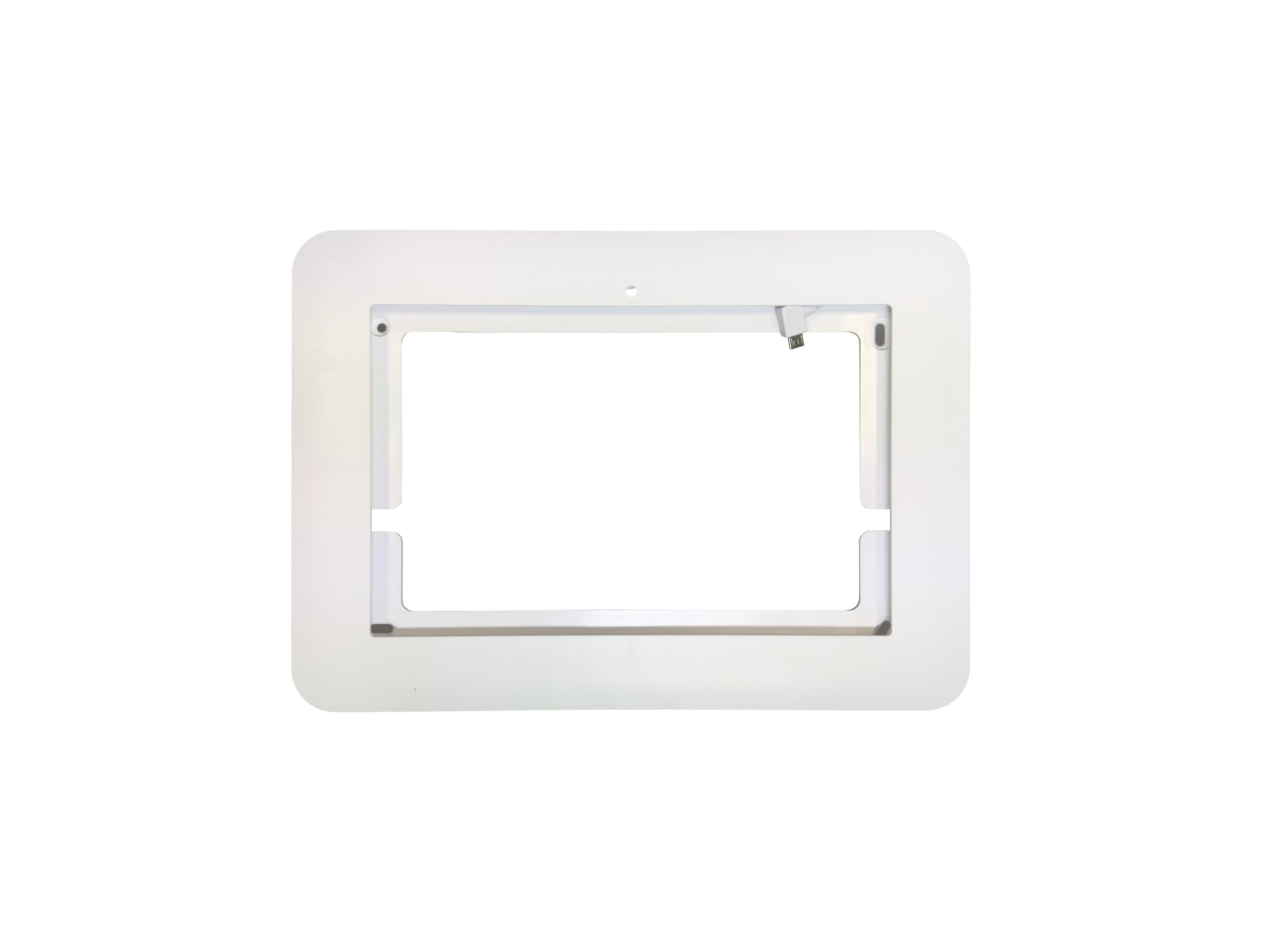

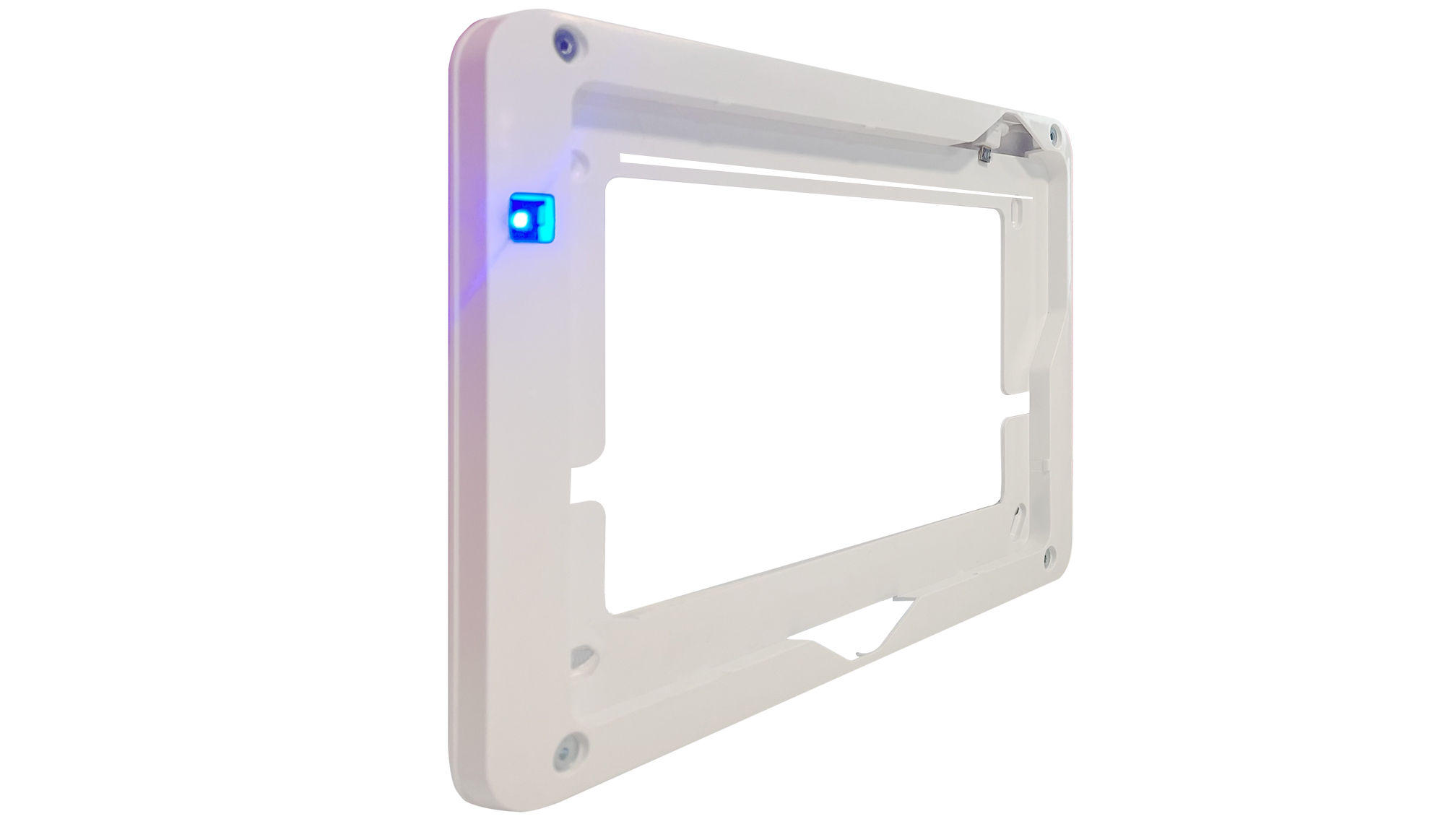

The white 2.5mm ABS plastic frame has been custom-designed and manufactured to perfectly fit around the AndroidTablet, and features integrated cable routes for the charging wire (PSU not supplied) and housing for the optional ProxReader.
Finding a home for the AndroidTablet doesn’t mean restricting its mobility. The TabletBracket’s magnetic quick-release front is easily detached to remove the tablet, so it can be used around the property. When done, the tablet simply clicks back into place and the front snaps back on.

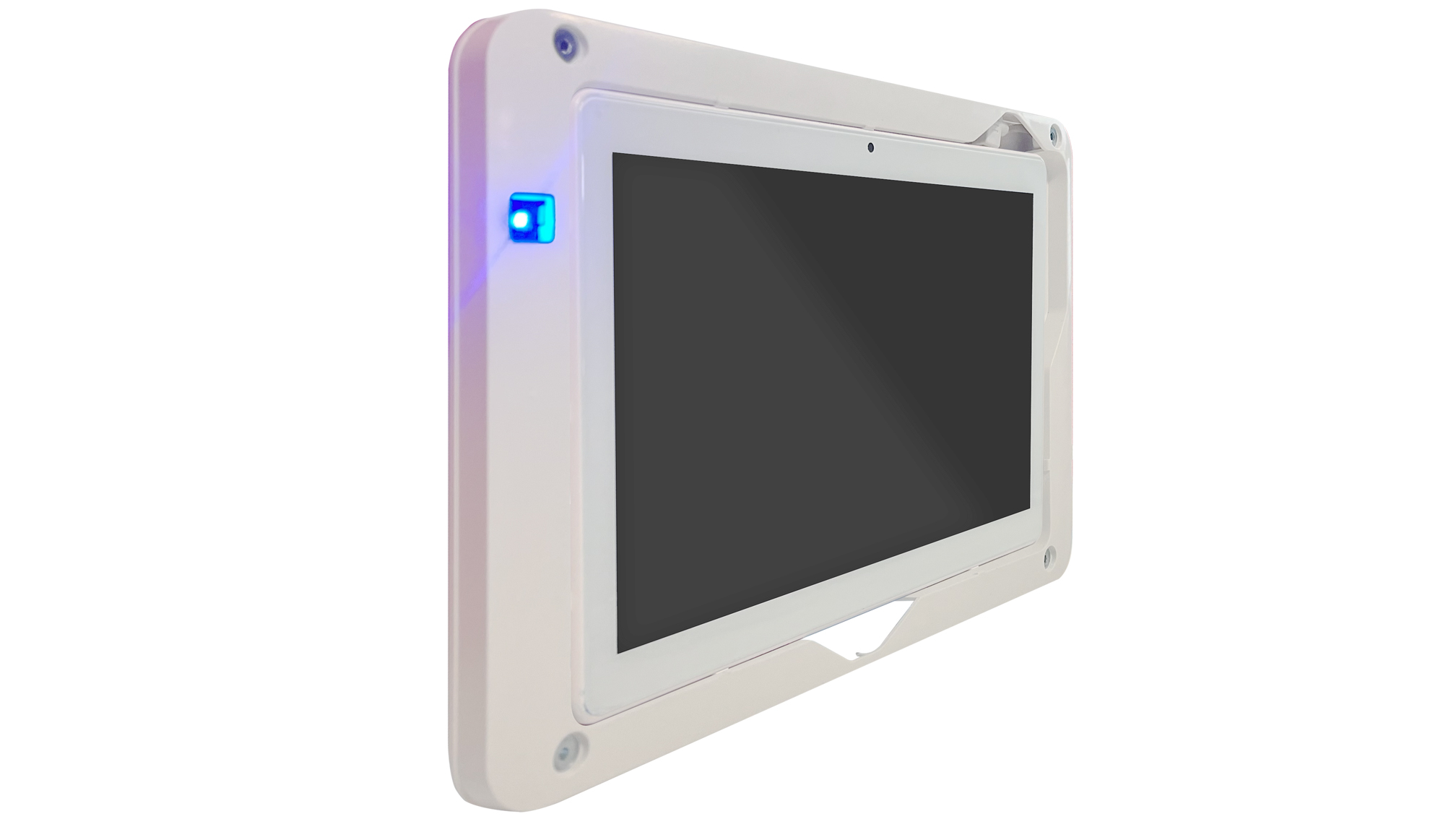

The optional ProxReader can be installed into the TabletBracket so that previously ungraded systems which were using the AndroidTablet can become Grade 2 compliant.
Physical Dimensions (W x H x D) |
296 x 212 x 16mm |
Casing |
2.5mm ABS |
Weight |
205g |
Colour |
White |
LED indication |
Prox reader location - blue |
Operation voltage |
12VDC nominal |
Current consumption |
<400mA quiescent |
Storage temperature |
-20°C to 50°C |
Operation temperature |
-10°C to 40°C |
Security grade (SG) |
2 |
Security standards |
EN50131-1-2006+A3-2020 EN50131-3-2009 PD6662-2017 |
Environmental class (EC) |
II |
Compliance |
UKCA, CE |
