TMD15

Description

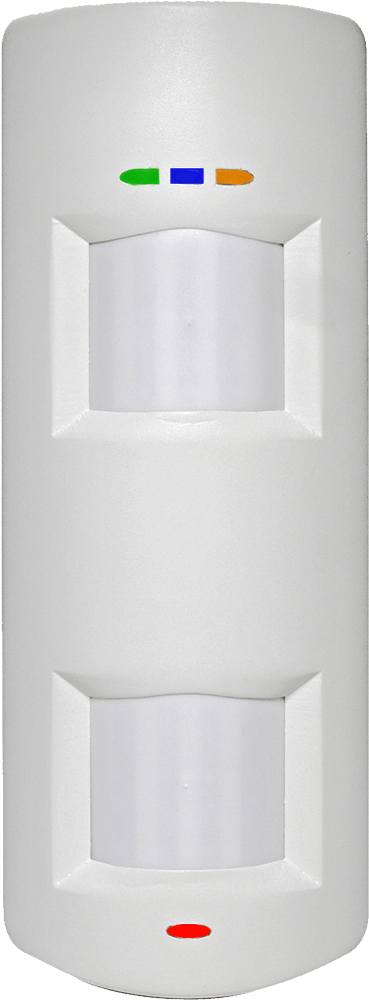

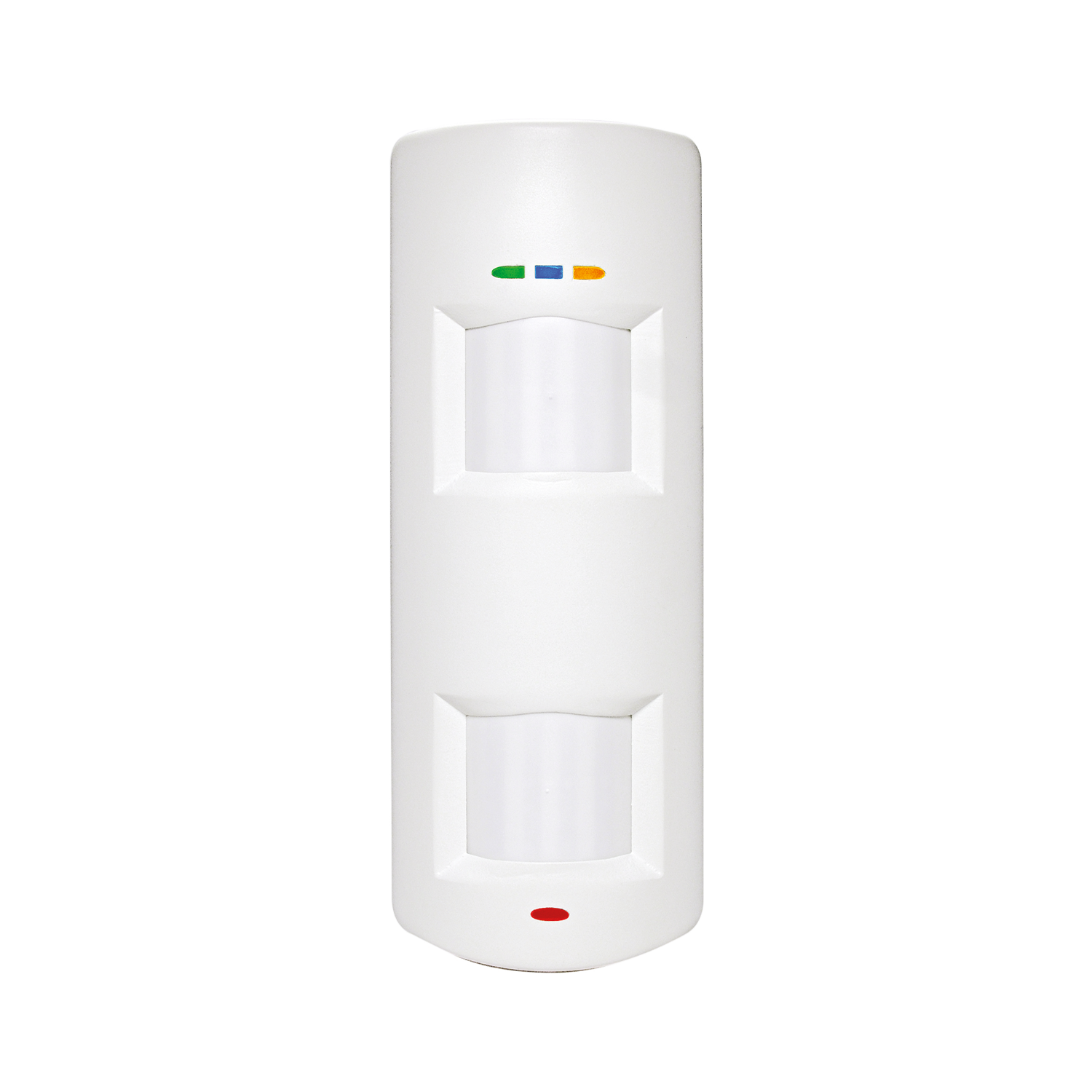

The grade 3 TMD15 detector combines a dual tech detector and a PIR sensor in a single housing. Featuring 15m volumetric coverage, it offers outstanding detection performance designed to meet the latest industry regulations. The detector responds to environmental changes by automatically adjusting its levels of immunity to background disturbances, thanks to its patented Independent Floating Thresholds.

Key Features
  • 15m, 90° volumetric coverage
  • Non-overlapping fields of view
  • Confirmation detector
Features

Product Features

Confirmed Dual Technology & PIR Grade 3 Detector

Based on Pyronix tried and tested patented technologies, the TMD15® offers outstanding detection performance with optimum reliability designed to meet the latest industry regulations.

TMD (sequential confirmation) mode

Two independent detectors in one housing featuring non-overlapping fields of view and separate relay outputs provide a simple solution to sequential confirmation.

Anti-masking detection

Ideal in high security environments where there may be a significant risk of masking.
An area immediately in front of the TMD15 is monitored continuously and separately from its normal mode. Any intrusion into this area activates the anti-masking process.
TMD15® also has separate mask and trouble output reporting.

Digital Temperature Compensation

When the product is used in a hot environment this technology digitally adjusts the detector’s sensitivity. This enables it to maintain its range even when the background room temperature is almost equal to the external body temperature of 34ºC (internal body temperature = 37ºC).

Selectable EOL resistors

The detector incorporates selectable alarm resistor values of 6K8, 5K6, 4K7 and 1K and tamper values of 5K6, 4K7, 2K2 and 1K catering for most control panels on the market. Voltage free relays allow for fitting of alternative resistance values not inherently supported by the device.

Patented Independent Floating Thresholds (IFT)

This technology, patented by Pyronix, allows the detector to respond to environmental changes by automatically adjusting its levels of immunity to background disturbances.

Anti Blocking Technology

Provides blocking detection up to 15m in disarmed mode, for example, if the field of view is blocked when the system is being armed, arming will not be possible until the blockage has been removed.

Tricover mode

Triple coverage ensures that an alarm will not occur unless all three detector fields are activated in a particular sequence. Offers unparalleled stability in the elimination of false alarm activations.

Auto sensitivity feature

Depending on the environmental conditions, the detector will automatically adjust its sensitivity.

Volumetric coverage

15m Volumetric coverage in both PIR lenses. Ideal for hostile environments.

Three independent relays

Dual Technology (DT), PIR and mask relays.

Quad LED indication

Provides indication of all technologies and detectors.

Certification
Technical Specification

Detectors technical characteristics

Automatic sensitivity

Yes

Set sensitivity

Auto or high

Digital temperature compensation

Yes

DEOL resistor on board

Yes

Tamper protection

Front and rear

Separate LED indication

Microwave, PIR and Alarm

Digital independent floating threshold (IFT) technology

Yes

Frequency range

10.579GHz, 10.587GHz, 10.595GHz

Detectors technical characteristics

Maximum range

15m PIR and 1-15m Microwave

Volumetric coverage

Yes

Dual technology

Yes

Detection speed

0.25 - 2.5m/s

Coverage angle

90 degree (dual tech) and 69 degree (PIR)

Detection zones

30 (dual tech) and 24 (PIR)

Detection planes

3 (dual tech) and 3 (PIR)

Adjustable antimasking (antispray)

0-1m anti-masking range

White light filter

6500 Lux

Protection

Ultraviolet light filter

Lens

Fresnel array

Optics

Sealed optics

Detection method

2 low noise dual element passive infrared sensors and a microwave doppler unit

Anti blocking technology

Yes

Mounting

Wall mounted

Yes

Optimum coverage height

1.8 - 2.4m

Certified mounting height

2.4m

Environmental and operating features

Storage temperature

-40C to +80C

Certified operating temperature

-10C to +40C

Nominal operating temperature

-30C to +70C

Physical dimensions (H x W x D)

175 x 70 x 40mm

Weight

206g

Electrical & battery

Operating voltage

9-16V DC 13.8V DC typical

Quiescent current consumption

24mA @ 13.8Vdc

Relay outputs

3 x SELV limits; 60Vdc 50mA (42.4Vac peak)

Tamper switch

12V 50mA

Certifications and warranty

Security Grade

Grade 3

Environmental class

II

EN Certificate

EN50131-2-4:2008, EN50131-1:2006+A1:2009, PD6662:2017

Certification type

IMQ

Certificate number

CA12.01337

Electrical conformity

CE

Warranty

5 years
Codes & Options

Product Codes & Options

TMD15
TMD15G3-3
SAP: 361301118
