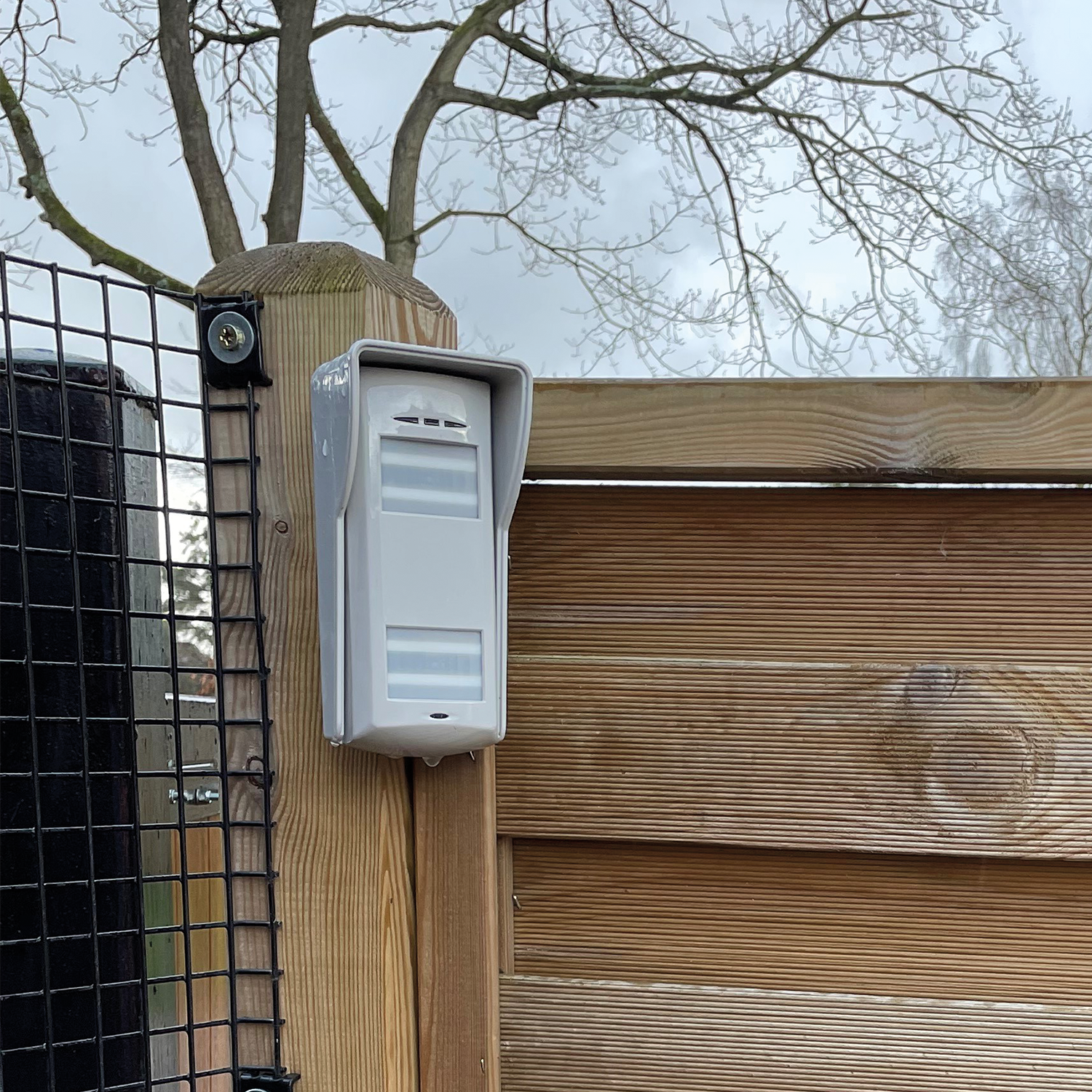

A pet-tolerant, low-mount external detector with Grade 3 and 4 technologies. This a steadfast detector is quick and easy to install, incorporating two PIR sensors and a microwave sensor in a single housing. The Tri-Technology (TT) system uses Tri-Signal Detection Logic, triggering an alarm only when all three sensors activate in rapid succession.
Consisting of two independent passive infrared (PIR) sensors and one microwave sensor in one common housing, Tri-Technology (TT) utilises Tri-Signal Detection Logic whereby to identify the presence of an intruder, all three sensors need to be activated sequentially in quick succession to create an alarm.
The two PIRs of the XDL12TT-AM have a dedicated volumetric field of view. The top PIR detects outwards and up, while the bottom PIR detects outwards and down, without either crossing the central horizontal place between them. This setup of non-overlapping PIR sensors alongside Tri-Signal Detection Logic, delivers highly secure sequential detection and increases its tolerance to pet immunity.
An advanced filter that allows the XDL12TT-AM to distinguish between the movement of trees and plants from that of an intruder. It is designed to maintain optimum performance and reduce false alarms in environments with windy weather conditions and swaying vegetation.
The XDL12TT-AM boasts IP55 weatherproof rating, which means that whatever the weather, the brand-new detector is durable and reliable with protection from dust ingress, high density rain, snow and water jets from any direction. To ensure this, the rubber gasket on the lens and the foam gasket on the PIR sensor seal the detector against all weather conditions and humidity.
A key weatherproof feature of the XD is its tolerance to ultraviolet light. The lenses and housing are manufactured with materials of the highest standard and are also coated with a heavy duty ultraviolet filter, ensuring that that the XD’s performance is not compromised.
Blue Wave technology |
Yes |
Digi logic technology |
Tri-detection logic |
Automatic sensitivity |
Yes |
Set sensitivity |
Auto or high |
Digital temperature compensation |
Yes |
Dual element pyro-electric sensor |
Yes |
DEOL resistor on board |
Tamper, alarm and mask |
Tamper protection |
12V DC 50mA both front and rear |
Intergrated walk test buzzer |
Yes |
Separate LED indication |
Top: Microwave, PIR 1 and alarm | Bottom: PIR 2 |
Digital independent floating threshold (IFT) technology |
Yes |
Standard temperature compensation |
Yes |
Frequency range |
9.9GHz |
Anti-sway analytics |
Yes |
Waterproof |
Yes |
Casing |
3mm polycarbonate, 0.4mm HDPE in lens area |
Maximum range |
12m |
Volumetric coverage |
85° coverage |
Curtain coverage |
17° coverage |
Animal immunity |
Up to 35kg | 1 - 1.5m (mounting height of detector) |
Tri technology |
Yes |
Detection speed |
0.25 - 2.5 m/s |
Detection zones |
22 (11 top, 11 bottom) |
Detection planes |
2 |
Adjustable antimasking (antispray) |
0 - 1m tri-masking covering all 3 technologies |
White light filter |
Yes |
Protection |
Tri-anti-masking technology | IP55 rated |
Lens |
UV compensated |
Optics |
Dual-Vision Sealed Optics |
Detection method |
Tri-signal detection logic |
Anti blocking technology |
Yes |
Sensor |
2 low noise dual element passive infrared sensors and a microwave doppler unit |
Wall mounted |
Optional brackets: | XD-FIXEDBRACKET | XD-WALLBRACKET | XD-45D-ADAPTER |
Optimum coverage height |
1.2m |
Storage temperature |
-40°C to 80°C |
Certified operating temperature |
-25°C to 60°C |
Physical dimensions (H x W x D) |
188 x 77 x 84mm (7.4" x 3" x 3.4") |
Weight |
300g |
Operating voltage |
9-16VDC, 13.8VDC typically |
Supply current |
~24mA @ 13.8VDC |
Relay outputs |
3 x SELV limits, 60VDC ~50mA (42.4VAC peak) |
Tamper switch |
12VDC 50mA both front and rear |
Environmental class |
IV |
Security Grade |
2 |
Certification type |
Self certified |
Electrical conformity |
CE |
Warranty |
5 years (excluding lens) |
EN Certificate |
PD6662:2017 |
