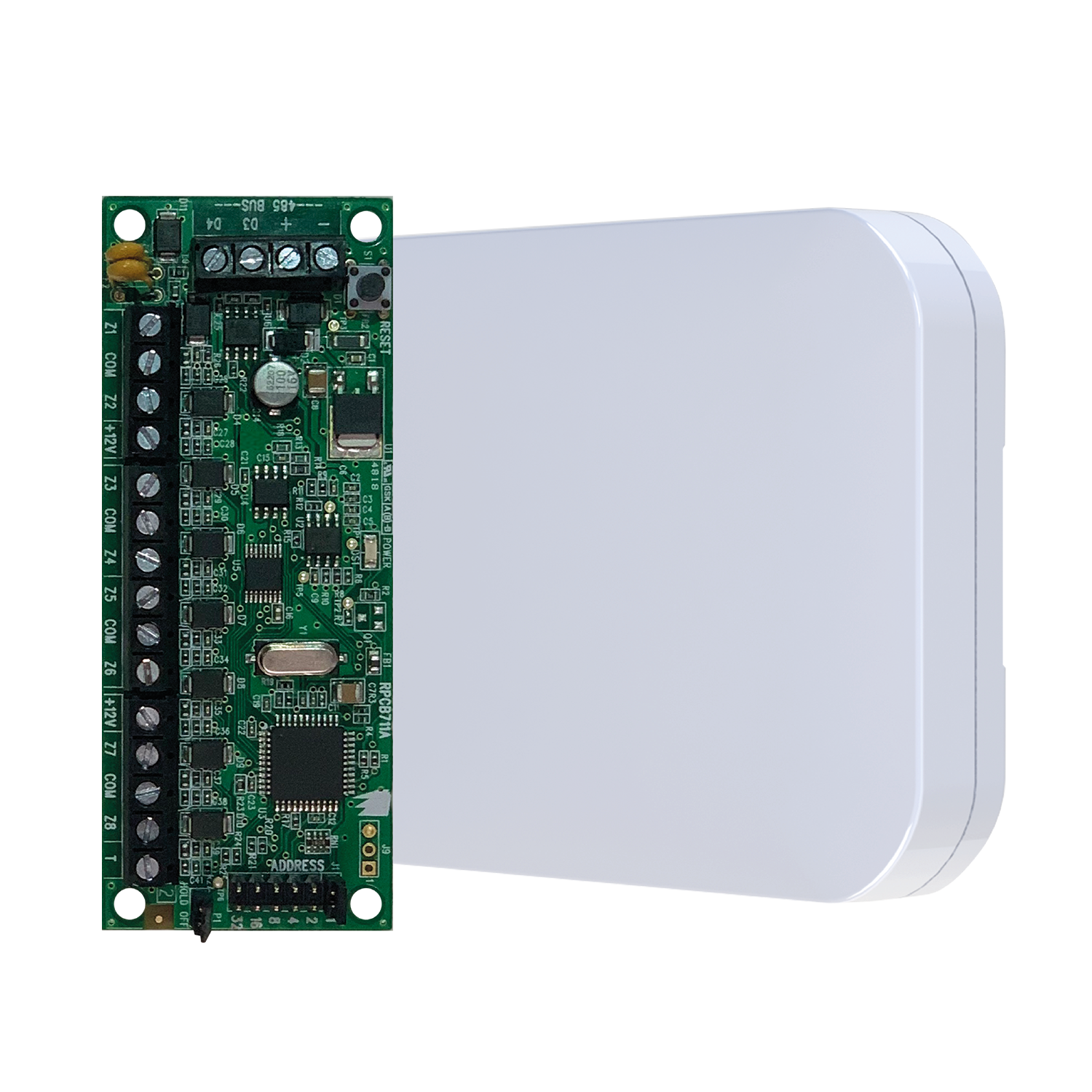

The small and versatile ZEM8/E+P-BOX zone expansion module with housing box provides additional flexibility for any installation, designed to deliver a convenient way to expand any expandable Pyronix wired or hybrid system.
Small and versatile, this zone expansion module (ZEM) with housing box provides additional flexibility for any installation; delivering a convenient way to expand any expandable Pyronix wired or hybrid system.
This expansion module offers a versatile and convenient way to add 8 wired zones to any expandable Pyronix wired or hybrid system.
The sleek and modern housing design features 4 cable tie anchor points around the enclosure, for straightforward cable management and a tidier installation.

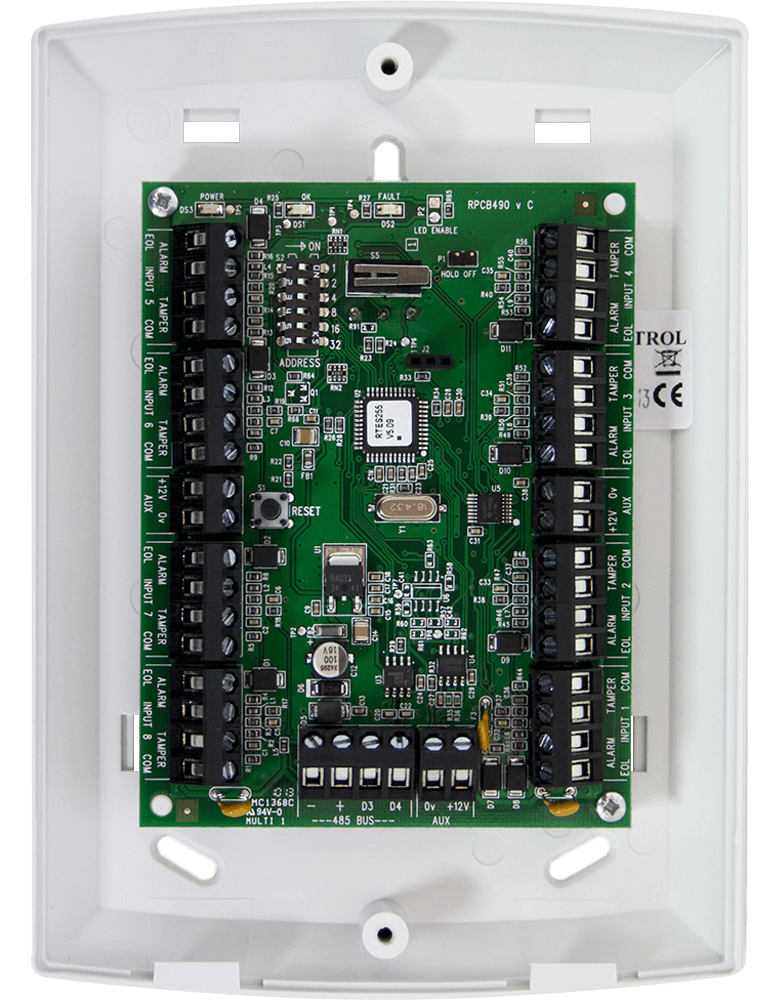

Featuring a reset button on the PCB, you can efficiently change the address of an expander while the system is powered on. Simply address the expander and then press the reset button. It’s as easy as that.
Distribute the AUX power cables and prevent overcrowding of the terminals with 2 x 12V terminals; maintaining a professional finish without compromising on functionality.
The ZEM8/E+P-BOX features plenty of cable knockout entry points from each side and the rear. There is even enough room for up to 10 x 6 core cables to enter; delivering easy cable management and a neater finish.
The ZEM8/E+P-BOX features both keyhole and slotted mounting holes in the back of the P-BOX to make levelling much easier; optimising installation to save valuable time.
The P-BOX features front and rear tamper protection so that any sabotage attempts will result in an alarm activation; maintaining maximum security against any accidental or malicious tampering.
The fixing holes on the rear of the P-BOX are aligned to fit standard back socket mounting. This is advantageous in house building type installations where cables are installed before plaster; routing them into a back box and protecting them for a neater install at the first fix stage.
Wired zones |
8 |
Current consumption |
~40mA @ 12VDC |
Tamper protection |
Closed loop circuit wired to terminals |
Zone wiring methods |
DEOL and 3EOL |
Inertia zone compatible |
Yes |
Voltage in |
~9 - 16VDC |
Current consumption |
~20mA @ 12VDC |
Fuse rating |
350mA |
Operating temperature |
-10°C to +40°C |
Storage temperature |
-40°C to +80°C |
Humidity |
~85% @ 25°c |
Dimensions (W x H x D) |
PCB: 100 x 40 x 14mm |
Weight |
PCB: 33.5g |
Warranty |
2 years |
EN50131 |
Grade 3 |
Environmental class |
II |
